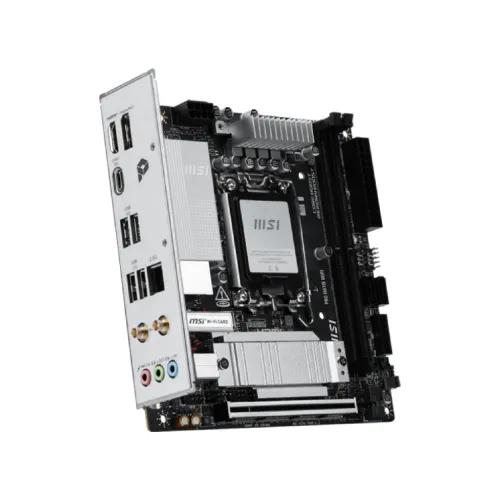

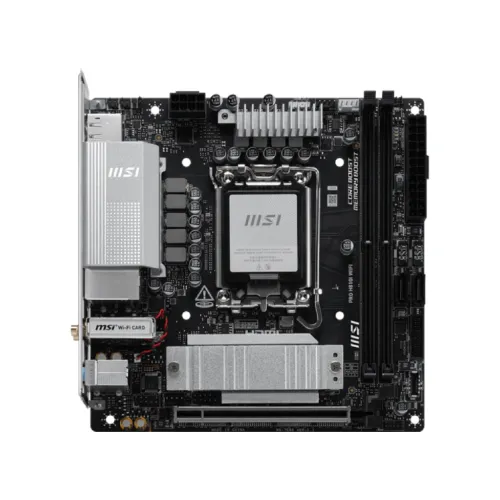

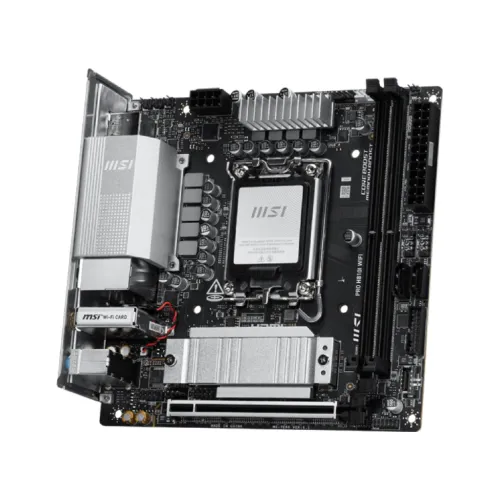

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard
Model: PRO H810I WIFIItem #: msi-pro-h810i-wifi-motherboard
৳18,900
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL H810 Chipset
- 1 M.2 slots
- Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9200+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 4800+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s RAM type
- Mini-ITX; 170mmx170mm Form factor
Overview
The MSI PRO H810I WIFI LGA 1851 Mini-ITX motherboard is a small but powerful option for modern PC setups that require cutting-edge performance and next-generation connections. It is powered by the Intel H810 chipset and supports Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, making it a long-term option for those seeking a dependable platform for productivity, gaming, and multimedia operations. MSI PRO H810I WIFI Mini-ITX motherboard supports dual-channel DDR5 memory, allowing up to 128GB of capacity and speeds up to 6400 MT/s, while Intel XMP 3.0 provides seamless overclocking for improved performance. The MSI Mini-ITX motherboard has Core Boost and Memory Boost technologies to ensure consistent power delivery and clean data transmission, resulting in efficiency for demanding applications. MSI's Frozr Guard provides cooling, which features an expanded heatsink, M.2 Shield Frozr, and MOSFET thermal pads rated at 7W/mK to keep temperatures under control during heavy operation. A PCIe 5.0 x16 slot allows for expansion with the latest graphics cards, while a PCIe 4.0 x4 M.2 slot and two SATA 6Gb/s connectors provide storage support. The MSI PRO H810I WIFI Mini-ITX motherboard supports Intel I226 2.5Gbps LAN and sophisticated Wi-Fi 7 with Bluetooth 5.4 for safe, stable, and ultra-fast networking at speeds of up to 2.9Gbps. Display choices include HDMI 2.1 and DisplayPort 1.4, with 4K resolution at 60Hz depending on the CPU. The Realtek ALC897 codec handles audio, and the 7.1-channel high-definition sound ensures an immersive experience. The USB possibilities are wide, with a 20Gbps Type-C on the back, a 10Gbps Type-C on the front, several USB 5Gbps, and more USB 2.0 ports. Features such as EZ PCIe Clip II, EZ Debug LEDs, and EZ Memory Detection facilitate installation and troubleshooting, while RGB headers allow for more customization. The MSI PRO H810I WIFI Mini-ITX motherboard, which supports Windows 11 64-bit, strikes the perfect balance between tiny form factor, robust performance, and next-generation networking, making it an excellent choice for both small form factor enthusiasts and professionals.
Specifications
- Chipset
- INTEL H810
- M.2 slots
- 1
- RAM type
- Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9200+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 4800+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s
- Form factor
- Mini-ITX; 170mmx170mm
- Memory — Type
- DDR5
- Memory — Slots
- 2
- Highlights — Model
- PRO H810I WIFI
- Graphics — Graphics
- 1x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- 1x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- Highlights — Features
- 1x M.2, Intel I226 2.5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
- Memory — Maximum Memory
- 128GB
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio
- Connector & Ports — Audio
- 1x Front Audio (JAUD)
- Others — Special Features
- 4x EZ Debug LED; 1x EZ Memory Detection LED
- Highlights — Supported RAM
- 2x DDR5 UDIMM, Up to 6400 MT/s, Max 128GB
- Connector & Ports — USB (s)

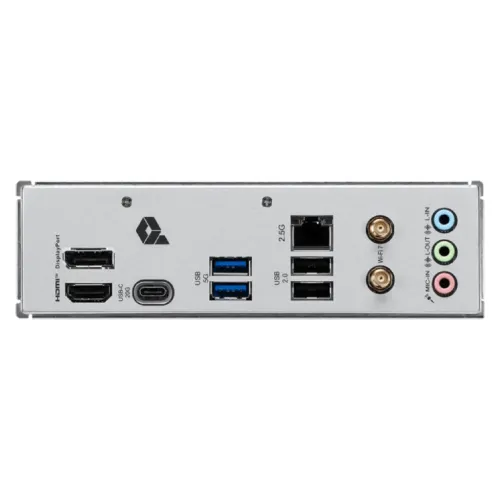

- 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type C (Front); 1x USB 20Gbps Type C (Rear)
- Highlights — Graphics Output
- 1x HDMI 2.1, 1x DisplayPort 1.4
- Connector & Ports — LAN Port (s)
- Intel I226 2.5Gbps LAN
- Basic Information — Supported CPU
- Supports Intel Core Ultra Processors (Series 2); LGA 1851
- Connector & Ports — Display Port (s)
- 1x DisplayPort 1.4
- Connector & Ports — Supported Storage
- 1x M.2; M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices; 2x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 1x System Fan; 1x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Addressable V2 RGB LED connector (JARGB_V2); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
- Warranty Information — Manufacturing Warranty
- 3 Year warranty
- Connector & Ports — Wireless Communication module
- Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4, MLO, 4KQAM
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard |  GIGABYTEGIGABYTE B650M D3HP AX DDR5 AM5 Motherboard |  GIGABYTEGIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard |  ASRockASRock B760M Pro RS DDR5 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳18,900 | ৳18,900 | ৳18,900 | ৳18,900 |
| Availability | Out of stock | In stock | In stock | Out of stock |
| Brand | MSI | GIGABYTE | GIGABYTE | ASRock |
| M.2 slots | 1 | — | — | — |
| RAM type | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9200+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 4800+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | Support for DDR5 4800/4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC); Max. capacity of system memory: 256GB; Supports Intel Extreme Memory Profile (XMP) 3.0; ; 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.; 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.; 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.; 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
| Form factor | Mini-ITX; 170mmx170mm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Chipset | INTEL H810 | AMD B650 | Intel B760 Express Chipset | Intel B760 |
