ASRock A620M-HDV/M.2 AM5 DDR5 Micro ATX Motherboard

Name: ASRock A620M-HDV/M.2 AM5 DDR5 Micro ATX Motherboard
Brand: ASRock
Price: 11500 BDT
Availability: OutOfStock

Model: A620M-HDV/M.2Item #: asrock-a620m-hdv-m-2-am5-motherboard

৳11,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD A620; Chipset
1 M.2 slots
Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules RAM type
Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm; 2oz Copper PCB

Overview

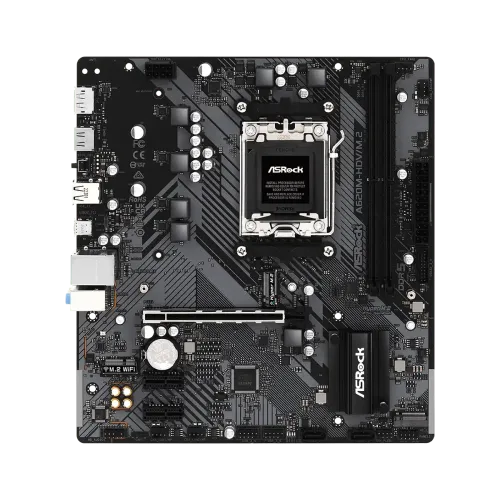

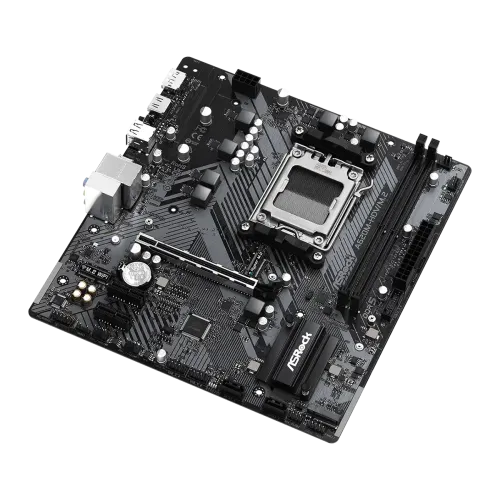

The ASRock A620M-HDV/M.2 AM5 DDR5 Micro ATX Motherboard is designed for maximum performance with support for AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors. This motherboard features a robust 4+1+1 Power Phase with Dr.MOS, dual DDR5 DIMM slots supporting up to 6400+ (OC), and integrated AMD RDNA 2 Graphics. It offers versatile connectivity with 1 PCIe 4.0 x16, 2 PCIe 3.0 x1 slots, and an M.2 Key E slot for WiFi. The storage options include 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2), and 2 SATA3 connectors, ensuring fast data transfer and ample space. The ASRock A620M-HDV/M.2 AM5 DDR5 Micro ATX Motherboard also provides a variety of USB ports, including 5 USB 3.2 Gen1 ports (2 rear, 1 rear Type-C, 2 front), and 6 USB 2.0 ports for extensive peripheral support. Audio enthusiasts will appreciate the Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio. For network connectivity, it features Realtek Gigabit LAN. Additional unique features include a BIOS Flashback Button for easy BIOS updates and ASRock's Auto Driver Installer. The ASRock A620M-HDV/M.2 AM5 boasts a sleek Micro ATX form factor with dimensions of 9.6-in x 8.9-in and a 2oz Copper PCB for durability. It supports dual channel DDR5 memory up to 128GB, with XMP and EXTended Profiles for Overclocking (EXPO). This motherboard also offers high-quality video output with HDMI 2.1 and DisplayPort 1.4, both supporting up to 4K 120Hz resolution. With comprehensive software support including ASRock Motherboard Utility (A-Tuning) and Instant Flash, this ASRock A620M-HDV/M.2 AM5 DDR5 Micro ATX Motherboard is the ideal choice for users seeking top-tier performance, durability, and easy updates, compatible with Windows 10 and 11 64-bit operating systems.

Specifications

Chipset: AMD A620;
M.2 slots: 1
RAM type: Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor: Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm; 2oz Copper PCB
Memory — Type: Dual Channel DDR5 Memory Technology
Memory — Slots: 2 x DDR5 DIMM Slots;
Highlights — Model: A620M-HDV/M.2
Graphics — Graphics: 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Show all 28 specifications

Expansion Slots — PCI: CPU:; 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3); 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; 15μ Gold Contact in VGA PCIe Slot (PCIE1);
Highlights — Features: Gigabit LAN 10/100/1000 Mb/s
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1 x HDMI Port
Connector & Ports — RAID: Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Basic Information — Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio
Connector & Ports — Audio: HD Audio Jacks: Line in / Front Speaker / Microphone
Others — Bundled Software: Superb Productivity; - Dual Channel DDR5; Rock-Solid Durability; - 4+1+1 Power Phase, 50A Dr.MOS for VCore; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer
Others — Special Features: Software; - ASRock Motherboard Utility (A-Tuning); UEFI; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
Highlights — Supported RAM: 2x DDR5, 6400+(OC), Max 128GB
Connector & Ports — USB (s): 1 x USB 3.2 Gen1 Type-C (Rear); 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front); 6 x USB 2.0 (2 Rear, 4 Front)
Graphics — Max Shared Memory: Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
Highlights — Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
Connector & Ports — LAN Port (s): 1 x RJ-45 Gigabit LAN 10/100/1000 Mb/s; Realtek RTL8111H
Basic Information — Supported CPU: Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Connector & Ports — Display Port (s): 1 x DisplayPort 1.4
Connector & Ports — Supported Storage: - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU); ; - Supports NVMe SSD as boot disks; - Supports ASRock U.2 Kit

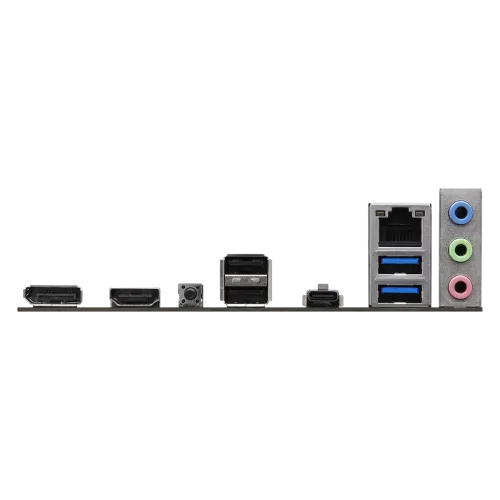

Connector & Ports — Internal I/O Ports: - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 2 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone; - 1 x Power LED and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Warranty Information — Manufacturing Warranty: 3 Years
