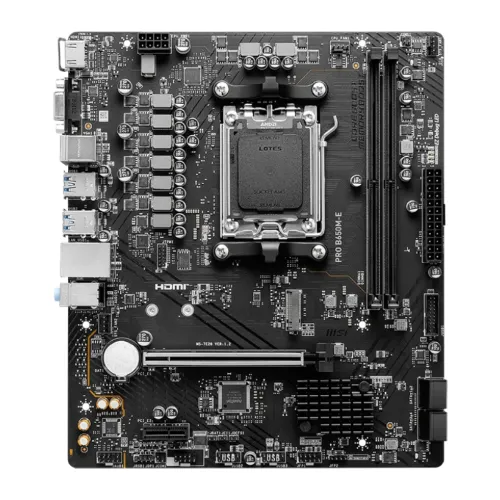

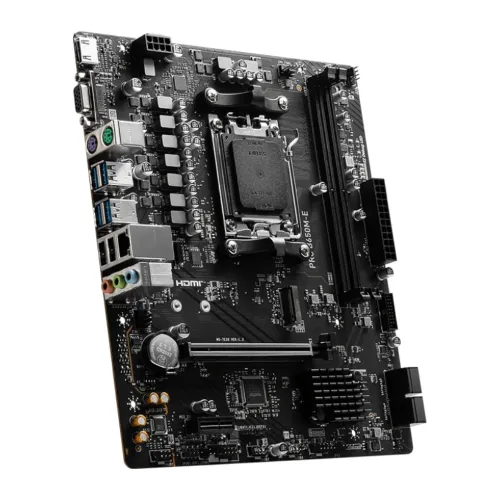

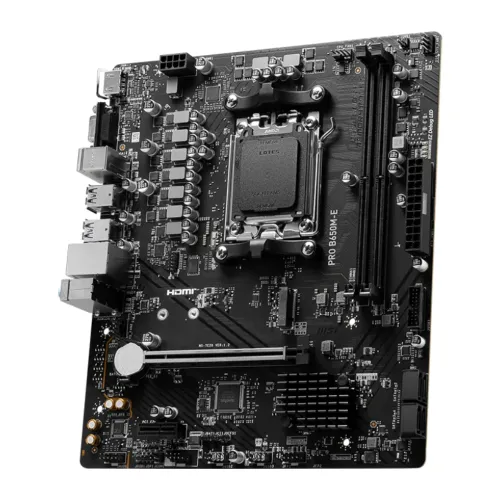

MSI PRO B650M-E AM5 mATX Motherboard
Model: PRO B650M-EItem #: msi-pro-b650m-e-motherboard
৳11,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- 1 M.2 slots
- Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; 1DPC 1R Max speed up to 6800+ MHz; 1DPC 2R Max speed up to 6000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO RAM type
- mATX; 211mmx243.84mm Form factor
Overview
The MSI PRO B650M-E AM5 mATX Motherboard is a reliable and high-performance motherboard designed for modern AMD systems. It supports the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, making it a future-ready platform for PC enthusiasts and professionals. It uses the advanced AM5 socket, paired with the efficient AMD B650 chipset, for enhanced processing power and system responsiveness.This MSI B650M-E motherboard supports dual-channel DDR5 memory, offering blazing-fast performance with maximum speeds up to 6800+ MHz (OC). It comes with 2 memory slots, supporting up to 128GB DDR5 RAM. It is optimized for overclocking and supports AMD EXPO profiles, ensuring stable and efficient performance across heavy workloads. The MSI PRO B650M-E Motherboard is compatible with non-ECC unbuffered memory, ideal for high-speed multitasking and system-intensive applications.For graphics connectivity, the PRO B650M-E features 1x HDMI 2.1 port that supports 4K resolution at 60Hz, ideal for high-definition displays. It also includes 1x VGA port, supporting legacy monitors with resolutions up to 2048x1536. This gives users flexible display output options.The audio section is powered by Realtek ALC897 Codec, delivering rich and immersive 7.1-channel high-definition audio. Whether you're gaming, streaming, or working, you can enjoy clean, studio-grade sound quality.The MSI PRO B650M-E AM5 provides robust expansion options with 1x PCI-E 4.0 x16 slot and 1x PCI-E 3.0 x1 slot. It supports full GPU acceleration and add-on cards for enhanced functionality. The PCI-E slots deliver scalable bandwidth depending on the installed Ryzen processor model. This ensures compatibility with a wide range of CPUs from the Ryzen 9000, 8000, and 7000 families.For storage, the B650M-E includes 1x M.2 slot (PCIe 4.0 x4) and 4x SATA 6Gb/s ports, offering fast data access and generous storage expandability. The M.2 slot supports devices up to 2280 in size, perfect for NVMe SSDs. RAID 0, 1, and 10 are supported on SATA ports, ensuring secure and efficient storage configurations.The network connection is handled by Realtek RTL8111H Gigabit LAN, offering stable and fast wired Ethernet connectivity. It's ideal for smooth online gaming, video calls, and data transfers.Connectivity is extensive with 2x rear USB 2.0 ports, 4x front USB 2.0 ports, 4x rear USB 5Gbps Type-A ports, and 2x front USB 5Gbps Type-A ports. These USB options ensure convenient connections for peripherals, external drives, and input devices.Internal headers include ATX power connectors, CPU and system fan headers, front panel connectors, chassis intrusion header, front audio header, COM port header, TPM 2.0 header, and RGB LED connector (JRGB). The inclusion of 4x EZ Debug LED indicators makes system diagnosis and troubleshooting quick and simple.The form factor is micro-ATX (mATX), measuring 211mm x 243.84mm, making it perfect for compact and space-efficient PC builds without compromising features.The MSI PRO B650M-E motherboard offers premium features in a compact design. It supports next-gen AMD Ryzen processors, ultra-fast DDR5 memory, PCIe 4.0 storage and GPU compatibility, and high-speed USB connectivity. Ideal for business users, gamers, and system builders, this Motherboard delivers outstanding value and MSI’s signature quality and reliability.
Specifications
- Chipset
- AMD B650
- M.2 slots
- 1
- RAM type
- Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; 1DPC 1R Max speed up to 6800+ MHz; 1DPC 2R Max speed up to 6000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO
- Form factor
- mATX; 211mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 2 x UDIMM
- Highlights — Model
- PRO B650M-E
- Graphics — Graphics
- 1x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- 1x PCI-E x16 slot; Supports x16 (For Ryzen 9000/ 7000 Series processors); Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); Supports x4 (For Ryzen™ 8500/ 8300 Series processors); 1x PCI-E x1 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Highlights — Features
- Realtek RTL8111H Gigabit LAN
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- Flash BIOS Button
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio
- Connector & Ports — Audio
- 1x Front Audio (JAUD)
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 2x DDR5, up to 6800+ (OC)
- Connector & Ports — USB (s)
- 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front)
- Connector & Ports — VGA (s)
- 1x VGA
- Highlights — Graphics Output
- 1x HDMI, 1x VGA
- Connector & Ports — LAN Port (s)
- Realtek RTL8111H Gigabit LAN
- Basic Information — Supported CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
- Connector & Ports — Supported Storage
- 1x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports
- Warranty Information — Manufacturing Warranty
- 3 Years Warranty
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI PRO B650M-E AM5 mATX Motherboard |  MSIMSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard |  ColorfulColorful BATTLE-AX B550M-T PRO V14 AM4 mATX Motherboard |  ASRockASRock A620M-HDV/M.2 AM5 DDR5 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳11,500 | ৳11,500 | ৳11,500 | ৳11,500 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | MSI | MSI | Colorful | ASRock |
| M.2 slots | 1 | 1 | — | 1 |
| RAM type | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; 1DPC 1R Max speed up to 6800+ MHz; 1DPC 2R Max speed up to 6000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports AMD EXPO | 2x DDR4 memory slots, support up to 64GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual-channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory | Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory; Support Extreme Memory Profile (XMP) memory technology; Supports dual channel memory technology | Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Form factor | mATX; 211mmx243.84mm | — | M-ATX; 197mm x 240mm | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm; 2oz Copper PCB |
| Chipset | AMD B650 | AMD B550 Chipset | AMD B450 | AMD A620; |
