ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard

Name: ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard
Brand: ASRock
Price: 18400 BDT
Availability: OutOfStock

Model: B650M PG LightningItem #: asrock-b650m-pg-lightning-wifi-am5-motherboard

৳18,400

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
- Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules RAM type
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Overview

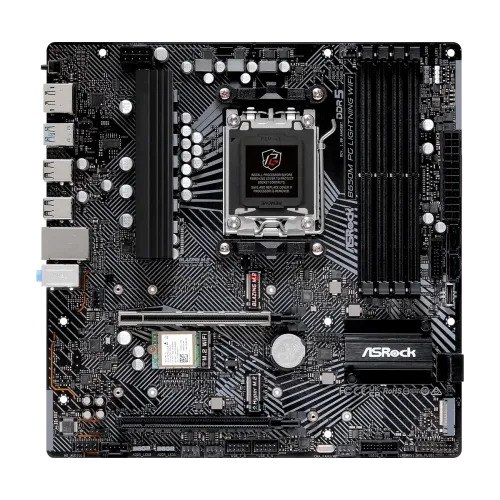

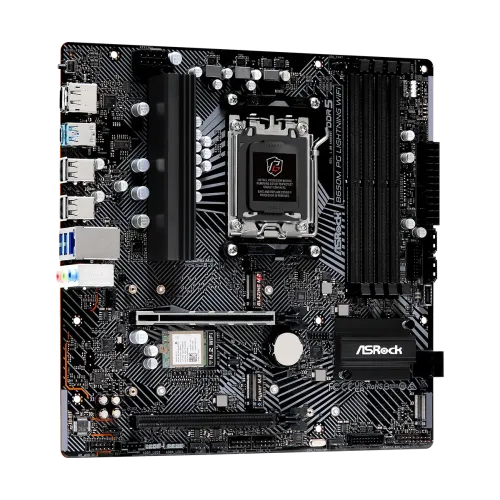

ASRock B650M PG Lightning AM5 Micro ATX Motherboard

The ASRock B650M PG Lightning AM5 Micro ATX motherboard is a powerful and versatile solution designed for gamers and PC enthusiasts alike. It is compatible with AMD Socket AM5 processors, including the Ryzen 9000, 8000, and 7000 series, ensuring support for the latest and most powerful CPUs. This motherboard is built with a 6+2+1 power phase design and Dr.MOS, providing stable power delivery and enhancing overall system performance. It supports up to 4 DDR5 DIMMs, allowing for dual-channel memory configurations with speeds up to 7200+ MHz when overclocked. The motherboard offers one PCIe 4.0 x16 slot and one PCIe 3.0 x16 slot, along with an M.2 Key-E slot for WiFi. It provides robust connectivity options, including HDMI and DisplayPort for graphics output. Audio is handled by the Realtek ALC897 7.1 CH HD Audio Codec, complemented by Nahimic Audio for an immersive sound experience. Storage options are plentiful, with 4 SATA3 ports, one Blazing M.2 (PCIe Gen5 x4), one Hyper M.2 (PCIe Gen4 x4), and one additional M.2 slot (PCIe Gen4 x2). USB connectivity is extensive, featuring one USB 3.2 Gen2 Type-A and Type-C on the rear, one USB 3.2 Gen1 Type-C on the front, and six USB 3.2 Gen1 Type-A ports (two rear, four front). The Phantom Gaming 2.5G LAN and 802.11ax WiFi 6E with Bluetooth ensures high-speed networking and wireless connectivity. The ASRock B650M PG Lightning also supports ASRock Auto Driver installation, simplifying setup and ensuring your system runs efficiently right out of the box. This motherboard is an ideal choice for building a high-performance, future-proof gaming or content-creation PC.

Specifications

Chipset: AMD B650
RAM type: - Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form factor: - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Memory — Type: DDR5
Memory — Slots: 4x DIMMs
Highlights — Model: B650M PG Lightning
Graphics — Graphics: Integrated AMD RDNA graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Expansion Slots — PCI: CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode; Chipset:; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - Supports AMD CrossFire; - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Show all 28 specifications

Highlights — Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
Memory — Maximum Memory: 256GB
Basic Information — BIOS: - 256Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1 x HDMI Port
Connector & Ports — RAID: - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Basic Information — Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Connector & Ports — Audio: HD Audio Jacks: Line in / Front Speaker / Microphone
Others — Bundled Software: Software; - ASRock Motherboard Utility (Phantom Gaming Tuning); - ASRock Phantom Gaming LAN Software; - ASRock Polychrome SYNC*; UEFI; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
Others — Special Features: Superb Productivity; - PCIe Gen5 (M.2); - Dual Channel DDR5; Rock-Solid Durability; - 6+2+1 Power Phase, 50A Dr.MOS; Ultrafast Connectivity; - 2.5G LAN; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer
Highlights — Supported RAM: 4x DDR5, 7200 +(OC), Max 256GB
Connector & Ports — USB (s): - 1 x USB 3.2 Gen2 Type-C (Rear); - 1 x USB 3.2 Gen2 Type-A (Rear); - 1 x USB 3.2 Gen1 Type-C (Front); - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front); - 8 x USB 2.0 (4 Rear, 4 Front)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Phantom Gaming LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User-Friendly UI; - Visual Network Usage Statistics; - Optimized Default Settings for Game, Browser, and Streaming Modes; - User Customized Priority Control
Basic Information — Supported CPU: - Supports AMD Socket AM5 Ryzem 9000, 8000 and 7000 Series Processors
Connector & Ports — Display Port (s): 1 x DisplayPort 1.4
Connector & Ports — Supported Storage: CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors

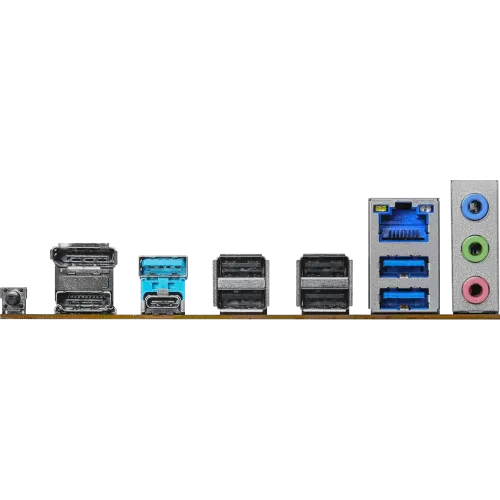

Connector & Ports — Internal I/O Ports: Rear Panel I/O; - 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s); - 2 x USB 3.2 Gen1 Type-A Ports; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone; ; Connector; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: - 802.11ax Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax; - Supports Dual-Band 2x2 with extended 6GHz band* support; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.2 + High speed class II; - Supports MU-MIMO
Connector & Ports — TPM (Trusted Platform Module ): - 1 x SPI TPM Header
