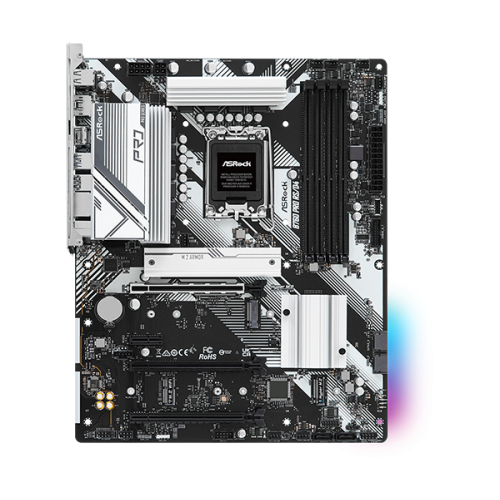

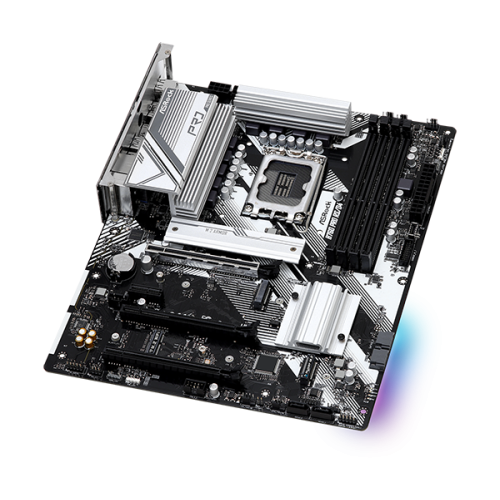

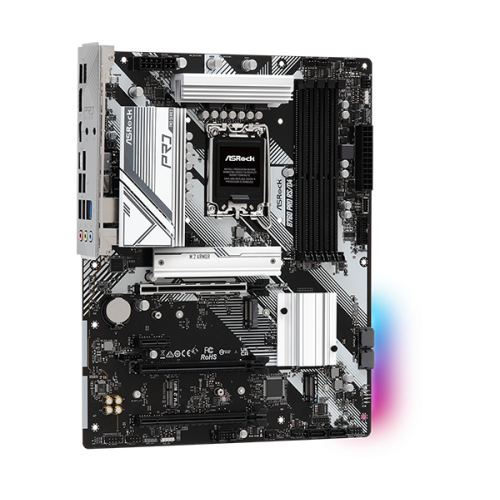

ASRock B760 Pro RS/D4 ATX Motherboard

Name: ASRock B760 Pro RS/D4 ATX Motherboard
Brand: ASRock
Price: 18500 BDT
Availability: OutOfStock

Model: B760 Pro RS/D4Item #: asrock-b760-pro-rs-d4-motherboard

৳18,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*; Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.; 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.; 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. RAM type
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;

Overview

The ASRock B760 Pro RS/D4 is an ATX motherboard designed to support 14th 13th Gen and 12th Gen Intel Core processors with an LGA1700 socket. With a 7+1+1 Power Phase and Dr.MOS for VCore+GT, it ensures efficient and stable power delivery to the CPU. The 14th Gen Motherboard supports DDR4 memory at speeds up to 5333MHz (OC), allowing for smooth multitasking and enhanced performance. It is equipped with multiple PCIe slots, including 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, and 1 PCIe 3.0 x1, the ASRock B760 Pro RS/D4 offers great expansion possibilities for graphics cards and other peripherals. It also features M.2 slots for high-speed storage solutions. The ASRock B760 Pro RS/D4 Motherboard provides a variety of connectivity options, including HDMI and DisplayPort for graphics output, USB 3.2 Gen2 Type-C and USB 3.2 Gen1 Type-C ports (both rear and front), as well as USB 3.2 Gen1 Type-A and USB 2.0 ports for connecting various devices. It comes with Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio for high-quality audio output and Dragon 2.5G LAN for fast and reliable network connectivity.

Specifications

Chipset: Intel B760
RAM type: Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*; Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.; 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.; 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
Form factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;
Memory — Type: DDR4
Memory — Slots: 4
Highlights — Model: B760 Pro RS/D4
Graphics — Graphics: Intel Xe Graphics Architecture (Gen 12); 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Expansion Slots — PCI: CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*; - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*; - 1 x PCIe 3.0 x1 Slot (PCIE2)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD CrossFire

Show all 27 specifications

Highlights — Features: Dragon 2.5G LAN
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio
Connector & Ports — Audio: HD Audio Jacks: Line in / Front Speaker / Microphone
Others — Bundled Software: Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC*; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock My Favorites in UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash; - ASRock Easy RAID Installer
Others — Special Features: Rock-Solid Durability; - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT; - Pre-Installed I/O Shield; - ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology; Ultrafast Connectivity; - 2.5G LAN EZ Update; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker
Highlights — Supported RAM: 4x DDR4, Max 128GB 5333MHz (OC)

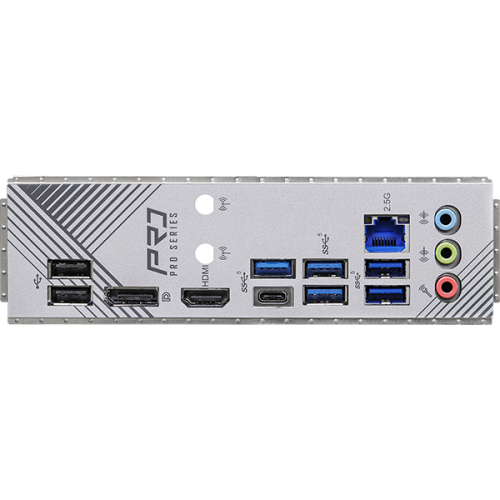

Connector & Ports — USB (s): 1 x USB 3.2 Gen2 Type-C (Front); 1 x USB 3.2 Gen1 Type-C (Rear); 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front); 4 x USB 2.0 (2 Rear, 2 Front); * All USB ports support ESD Protection
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
Basic Information — Supported CPU: Supports 14th 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT)
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
Connector & Ports — Internal I/O Ports: 1 x Chassis Intrusion and Speaker Header; 2 x RGB LED Headers*; 2 x Addressable LED Headers**; 1 x CPU Fan Connector (4-pin)***; 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card); 1 x USB 2.0 Header (Supports 2 USB 2.0 ports); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM Header
