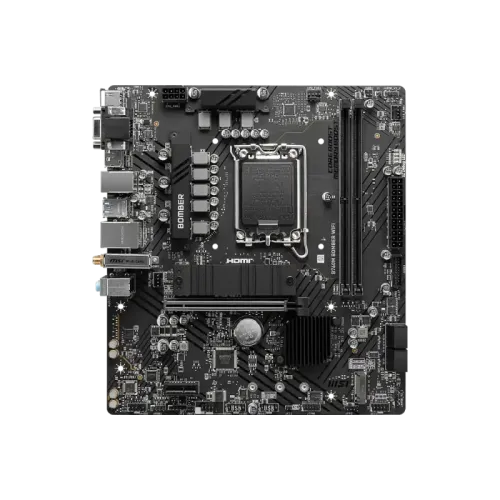

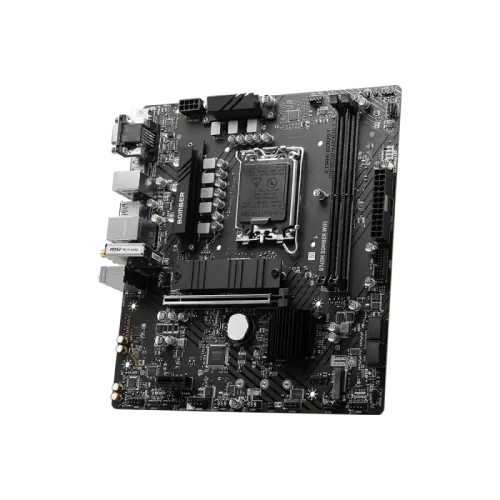

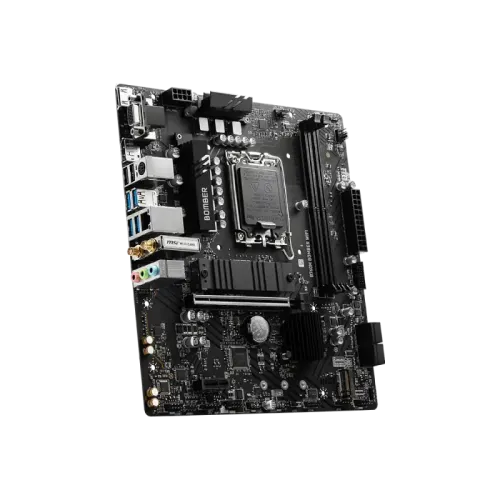

MSI B760M BOMBER WIFI mATX Motherboard
Model: B760M BOMBER WIFIItem #: msi-b760m-bomber-wifi-motherboard
৳18,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- INTEL B760 Chipset
- Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5600+ MHz; ; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory RAM type
- mATX; 220mmx243.84mm Form factor
Overview
The MSI B760M BOMBER WIFI mATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It supports both 14th 13th and 12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket, ensuring compatibility with a wide range of processors. The MSI B760M BOMBER WIFI Motherboard supports DDR5 memory with a dual-channel configuration, allowing for fast and efficient data transfer at speeds of 6400+MHz (OC). It features an enhanced power design with a 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, ensuring stable power delivery and optimal performance. The motherboard also incorporates Core Boost and Memory Boost technologies to enhance performance further. For improved thermals, the motherboard includes an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensuring efficient heat dissipation. Additional choke thermal pads are also included to support high-performance systems and provide a reliable gaming experience. The MSI B760M BOMBER WIFI offers lightning-fast gaming experiences with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 slot with M.2 Shield Frozr, and Turbo USB 3.2 Gen 2 10G for high-speed data transfer. It also features a 2.5G LAN with Wi-Fi 6E solution, providing upgraded network connectivity for professional and multimedia use. The high-quality PCB is constructed with a 6-layer design using 2oz thickened copper for improved durability and performance. The MSI B760M BOMBER WIFI Motherboard offers Audio Boost technology, and delivers studio-grade sound quality for an immersive gaming experience.
Specifications
- Chipset
- INTEL B760
- RAM type
- Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5600+ MHz; ; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
- Form factor
- mATX; 220mmx243.84mm
- Memory — Type
- DDR5
- Memory — Slots
- 2
- Highlights — Model
- B760M BOMBER WIFI
- Graphics — Graphics
- 1x HDMI; Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz; 1x D-Sub; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- Expansion Slots — PCI
- 5x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Show all 26 specificationsShow fewer
- Highlights — Features
- 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
- Memory — Maximum Memory
- 96GB
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Basic Information — Audio
- Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
- Others — Special Features
- 4x EZ Debug LED
- Highlights — Supported RAM
- 2x DDR5, Max 192GB 6400+MHz (OC)
- Connector & Ports — USB (s)

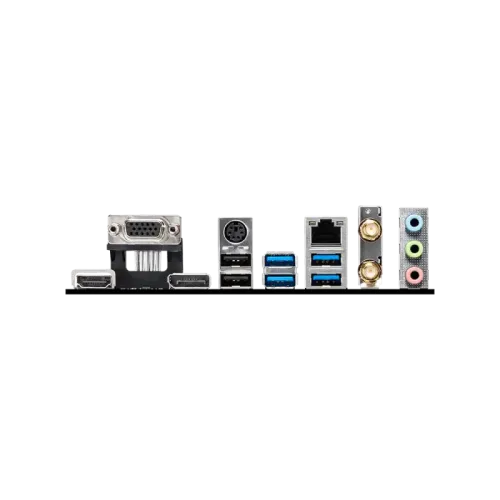

- 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 3.2 Gen1 Type A (Rear); 2x USB 3.2 Gen1 Type A (Front)
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort, 1x D-Sub
- Connector & Ports — D-Sub (s)
- 1x D-Sub
- Connector & Ports — LAN Port (s)
- Realtek RTL8125B 2.5Gbps LAN
- Basic Information — Supported CPU
- Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors; LGA1700
- Connector & Ports — Display Port (s)
- 1x DisplayPort
- Connector & Ports — Supported Storage
- 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G
- Connector & Ports — Internal I/O Ports
- 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x CPU Fan; 1x Pump Fan; 5x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 1x TBT connector (JTBT, supports RTD3); 2x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 4x USB 2.0 ports; 2x USB 3.2 Gen1 Type A ports; 1x USB 3.2 Gen1 Type C ports
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; ; Supports Bluetooth 5.3, FIPS, FISMA
- Connector & Ports — TPM (Trusted Platform Module )
- 1x TPM pin header(Support TPM 2.0)
Compare with similar products
 This itemMSI B760M BOMBER WIFI mATX Motherboard |  MSIMSI PRO B850M-B GEN4 AM5 mATX Motherboard |  ASRockASRock B760 Pro RS/D4 ATX Motherboard |  AsusAsus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard | |
|---|---|---|---|---|
| Price | ৳18,500 | ৳18,500 | ৳18,500 | ৳18,500 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | MSI | MSI | ASRock | Asus |
| RAM type | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5600+ MHz; ; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*; Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.; 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.; 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory |
| Form factor | mATX; 220mmx243.84mm | mATX; 226mmx243.84mm | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; | microATX; 24.4cm x 24.4cm |
| Chipset | INTEL B760 | AMD B850 | Intel B760 | B550 |
| M.2 slots | — | 2 | — | 2 |
