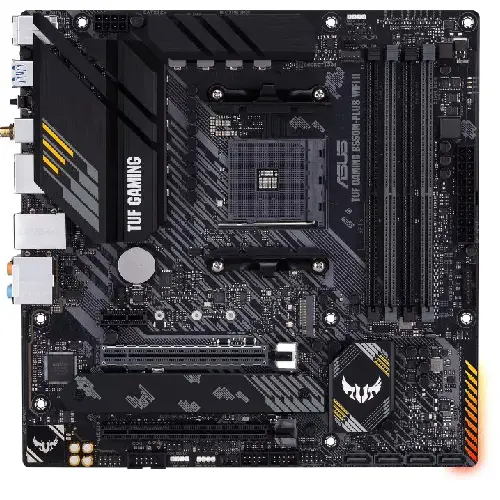

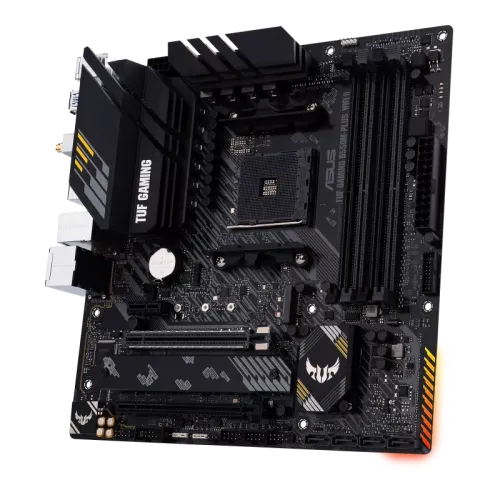

Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard
Model: TUF GAMING B550M Plus WIFI IIItem #: asus-tuf-gaming-b550m-plus-wifi-ii-motherboard
৳18,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- B550 Chipset
- 2 M.2 slots
- 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory RAM type
- microATX; 24.4cm x 24.4cm Form factor
Overview
The Asus TUF GAMING B550M Plus WIFI II Motherboard is a very important element in the field of the latest AMD platform. This motherboard has been combined with gaming features. That makes it more durable. The motherboard is engineered with an upgraded power solution and cooling options. This makes the motherboard perfect to deliver rock performance. The motherboard has 8+2 DrMOS power stages. Also has high-quality alloy chokes and durable capacitors. That allows the provision of reliable power for this latest AM B core CPUs. The motherboard is easy to set up even for first-time builders. This TUF gaming motherboard builds your gaming dream real without any complexity.
Wi-Fi 6 and Realtek 2.5Gb Ethernet
The Asus TUF GAMING B550M Plus WIFI II has an updated WiFi version. The WiFi 6 is compatible with the 802.11ax standard. And it gives a bandwidth of up to 2.4Gbps. It is more important for power users. It is designed to operate more effectively on congested networks with a lot of competing traffic. So, by pairing the motherboard with ASUS WiFi 6 router, you can get the benefit of WiFi 6 network potentiality. The motherboard has also a 2.5 Gb LAN with ASUS LANGuard. This gives you a high-performance gaming experience.
Gaming Audio & AI Noise Cancelling Technology
The Asus TUF GAMING B550M Plus WIFI II has industry-leading gaming audio. The high-fidelity audio from a SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III takes you deeper into the sound. That allows you to enjoy the full sound. The noise canceling technology provides a noise-free sound that avoids keyboard clatter, mouse clicks, and other forms of environmental noise.
Connectivity
The Asus TUF GAMING B550M Plus WIFI supports the best gaming connectivity. It supports HDMI 2.1 (4K,60HZ) and DisplayPort 1.2 output. This motherboard has USB connectivity. Many USB ports accommodate peripheral-laden gaming setups, including Type-A and Type-C connections with fast USB 3.2 Gen 2 connectivity for compatible cases.
Game look
The Asus TUF GAMING B550M Plus WIFI II has exclusive Aura Sync RGB lighting. This feature offers full RGB lighting control. Also offers a variety of functions with several useful settings for both strips attached to the onboard RGB connectors and the built-in RGB LEDs. It can also be connected with a broad range of hardware that supports Aura. So it gives an excellent gaming look.
Buy Asus TUF GAMING B550M Plus WIFI II Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- B550
- M.2 slots
- 2
- RAM type
- 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory
- Form factor
- microATX; 24.4cm x 24.4cm
- Memory — Type
- DDR4
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- TUF GAMING B550M Plus WIFI II
- Graphics — Graphics
- 1 x DisplayPort; 1 x HDMI port
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors; 1 x PCIe 3.0 x16 slot (supports x16 mode)*; AMD B550 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x1 slot; Support PCIe bifurcation for RAID on CPU function.; PCIEX16_2 will run x2 mode when the PCIEX1 slot is used.
- Highlights — Features
- Wi-Fi 6, Realtek 2.5Gb Ethernet
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI 2.1(4K@60HZ)
- Others — Bundled Software
- ASUS Exclusive Software; Armory Crate; - Aura Creator; - Aura Sync; - Two-Way AI Noise Cancelation; AI Suite 3; - Performance And Power Saving Utility; TurboV EVO; EPU; DIGI+ VRM; Fan Xpert 2+; - EZ update; TUF GAMING CPU-Z; AI Charger; DAEMON Tools; DTS Custom for GAMING Headsets; Norton Anti-virus software (Free Trial version); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode;
- Others — Special Features
- ASUS TUF PROTECTION; - DIGI+ VRM (Digital power design with DrMOS); - Enhanced DRAM Overcurrent Protection; - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - ProCool; AURA Sync; - AURA RGB headers; - Addressable Gen 2 header
- Highlights — Supported RAM
- 4 x DIMM, Max. 128GB, DDR4

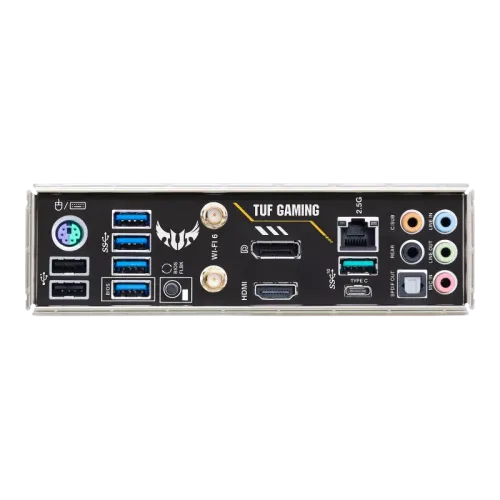

- Connector & Ports — USB (s)
- Rear USB:Total 8 ports; 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB:Total 6 ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Highlights — Graphics Output
- 1 x Display Port, 1 x HDMI
- Connector & Ports — LAN Port (s)
- TUF LANGuard
- Basic Information — Supported CPU
- AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Connector & Ports — Display Port (s)
- 1 x DisplayPort 1.2
- Connector & Ports — Supported Storage
- AMD Ryzen 5000 Series/ 3000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); AMD B550 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; Support RAID 0, 1, 10
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 1 x Addressable Gen 2 header; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header; 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
Compare with similar products
 This itemAsus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard |  MSIMSI PRO B850M-B GEN4 AM5 mATX Motherboard |  ASRockASRock B760 Pro RS/D4 ATX Motherboard |  MSIMSI B760M BOMBER WIFI mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳18,500 | ৳18,500 | ৳18,500 | ৳18,500 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | Asus | MSI | ASRock | MSI |
| M.2 slots | 2 | 2 | — | — |
| RAM type | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*; Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.; 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.; 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 6400+ MHz; • 1DPC 2R Max speed up to 5600+ MHz; ; Supports Intel® XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Form factor | microATX; 24.4cm x 24.4cm | mATX; 226mmx243.84mm | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; | mATX; 220mmx243.84mm |
| Chipset | B550 | AMD B850 | Intel B760 | INTEL B760 |
