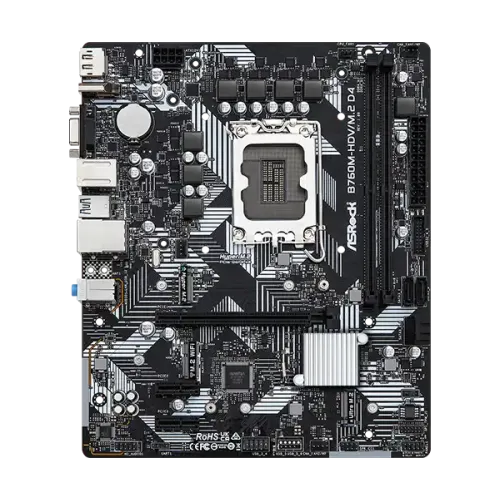

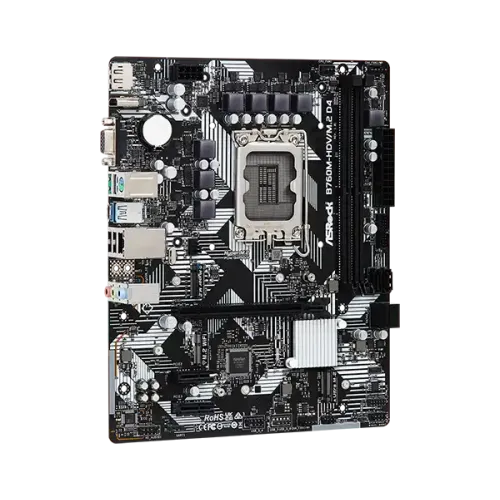

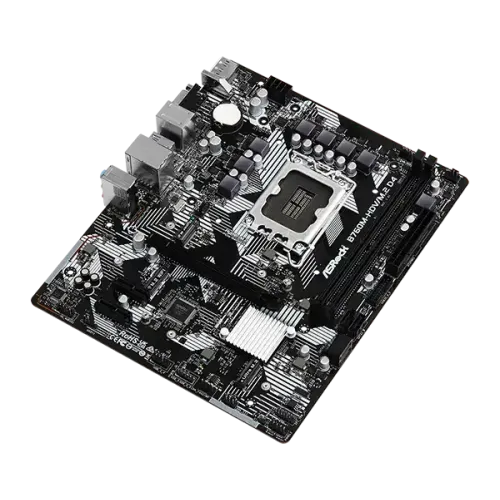

ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard
Model: B760M-HDV/M.2 D4Item #: asrock-b760m-hdv-m-2-d4-motherboard
৳13,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Chipset
- Dual Channel DDR4 Memory Technology; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. RAM type
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Overview
The ASRock B760M-HDV/M.2 D4 Motherboard supports 14th, 13th and 12th Gen Intel Core processors on the LGA1700 socket. With its 5+1+1 Power Phase design, it ensures stable power delivery for optimal performance. This motherboard supports speedy DDR4 memory clocked at 5333MHz (OC), allowing for smooth multitasking and efficient data handling. This 14th Gen Motherboard offers a range of expansion options, including 1 PCIe 4.0 x16 slot, 2 PCIe 3.0 x1 slots, and 1 M.2 Key E slot for WiFi connectivity. For graphics output, you have multiple choices with HDMI, DisplayPort, and D-Sub options. The Realtek ALC887/897 7.1 CH HD Audio Codec provides excellent audio quality for an immersive sound experience. It offers 4 SATA3 ports, 1 Hyper M.2 (PCIe Gen4x4), and 1 Ultra M.2 (PCIe Gen3x4 & SATA), ensuring you have plenty of options for connecting storage devices. The motherboard also features a convenient array of USB ports, including 1 USB 3.2 Gen1 Type-C at the rear, 5 USB 3.2 Gen1 Type-A (3 at the rear, 2 at the front), and 5 USB 2.0 ports (2 at the rear, 3 at the front). ASRock B760M-HDV/M.2 D4 Motherboard includes Realtek 1G LAN for reliable and high-speed networking. The ASRock Auto Driver Installer simplifies driver installation, making it user-friendly and convenient.
Specifications
- Chipset
- Intel B760
- RAM type
- Dual Channel DDR4 Memory Technology; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
- Form factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- Memory — Type
- DDR4
- Memory — Slots
- 2
- Highlights — Model
- B760M-HDV/M.2 D4
- Graphics — Graphics
- Intel Xe Graphics Architecture (Gen 12); 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
- Expansion Slots — PCI
- CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Show all 28 specificationsShow fewer
- Highlights — Features
- Realtek 1G LAN
- Memory — Maximum Memory
- 64GB
- Basic Information — BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Basic Information — Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Connector & Ports — Audio
- HD Audio Jacks: Line in / Front Speaker / Microphone
- Others — Bundled Software
- Software; - ASRock Motherboard Utility (A-Tuning); - ASRock XFast LAN; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock My Favorites in UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash; - ASRock Easy RAID Installer
- Others — Special Features
- Rock-Solid Durability; - 5+1+1 Power Phase; EZ Update; - ASRock Auto Driver Installer
- Highlights — Supported RAM
- 2x DDR4, Max 64GB 5333+(OC)
- Connector & Ports — USB (s)

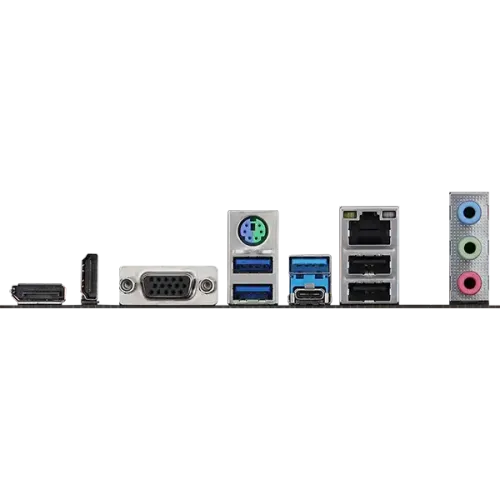

- 1 x USB 3.2 Gen1 Type-C (Rear); 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front); 5 x USB 2.0 (2 Rear, 3 Front); * All USB ports support ESD Protection
- Highlights — Graphics Output
- 1x HDMI, 1x DisplayPort, 1x D-Sub
- Connector & Ports — D-Sub (s)
- 1 x D-Sub
- Connector & Ports — LAN Port (s)
- Gigabit LAN 10/100/1000 Mb/s; Realtek 8111H
- Basic Information — Supported CPU
- Supports 14th Gen, 13th & 12th Gen and next-gen Intel Core Processors (LGA1700); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT)
- Connector & Ports — Display Port (s)
- 1x DisplayPort
- Connector & Ports — Supported Storage
- CPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors
- Connector & Ports — Internal I/O Ports
- 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin); 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 3 USB 2.0 ports); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Compare with similar products
 This itemASRock B760M-HDV/M.2 D4 Micro ATX Motherboard |  ASRockASRock B840M-HVS AMD AM5 mATX Motherboard |  GIGABYTEGigabyte B550M K WIFI6E AMD AM4 mATX Motherboard |  MSIMSI PRO B550M-B AMD AM4 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳13,500 | ৳13,500 | ৳13,500 | ৳13,500 |
| Availability | Out of stock | In stock | In stock | Out of stock |
| Brand | ASRock | ASRock | GIGABYTE | MSI |
| RAM type | Dual Channel DDR4 Memory Technology; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. | Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules | Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4600+ MHz; • 1DPC 2R Max speed up to 3866+ MHz |
| Form factor | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm | Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm; 2oz Copper PCB | Micro ATX Form Factor; 24.4cm x 24.4cm | mATX; 220mmx243.84mm |
| Chipset | Intel B760 | AMD B840 | AMD B550 | AMD B550 |
| M.2 slots | — | 1 | 1 | 2 |
