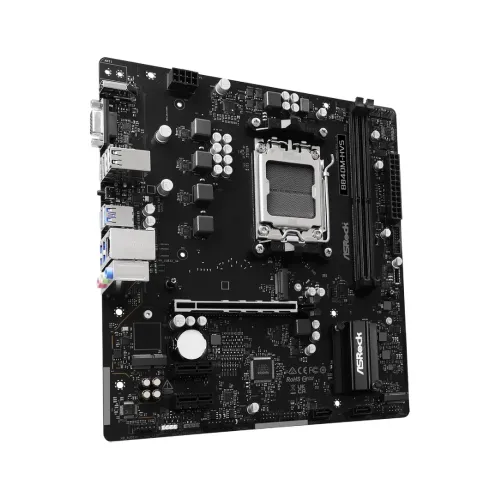

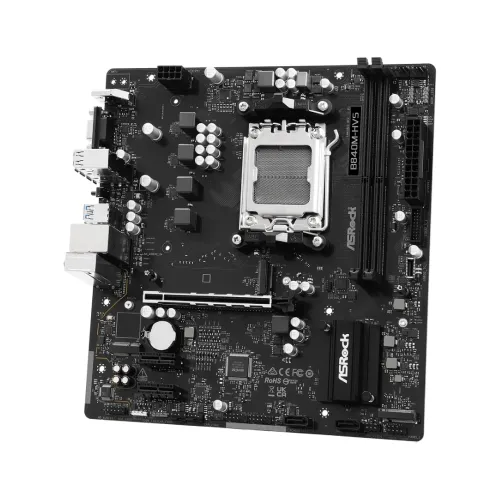

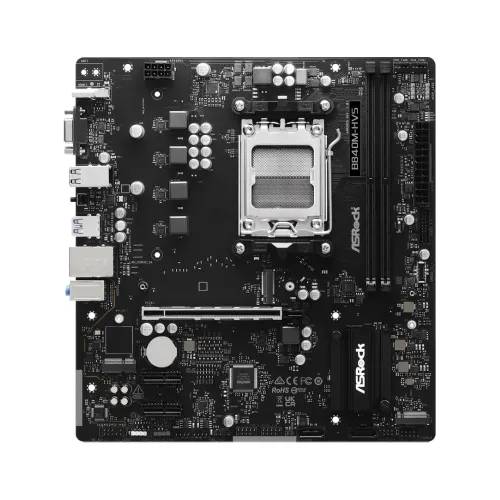

ASRock B840M-HVS AMD AM5 mATX Motherboard
Model: B840M-HVSItem #: asrock-b840m-hvs-motherboard
৳13,500৳14,800Save 9%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B840 Chipset
- 1 M.2 slots
- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules RAM type
- Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm; 2oz Copper PCB
Overview
The ASRock B840M-HVS AMD AM5 mATX Motherboard is built for AMD Ryzen 9000, 8000, and 7000 series processors. This offers DDR5 memory support, PCIe 4.0 expansion, and advanced storage options. With features like BIOS Flashback, Auto Driver Installer, and Post Status Checker, the ASRock B840M-HVS makes updates and troubleshooting simple. Compact in micro-ATX form, it delivers stability, productivity, and flexibility for modern PC builds.
Memory and Performance
The ASRock B840M-HVS supports dual-channel DDR5 memory up to 6800+(OC) with a maximum capacity of 128GB. It includes XMP and EXPO profiles for overclocking. Integrated AMD RDNA graphics provide HDMI 2.1 output up to 4K 120Hz and D-Sub up to Full HD, making this ASRock DDR5 Motherboard suitable for gaming and productivity.
Expansion and Storage
This ASRock motherboard offers one PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, and an M.2 socket for WiFi modules. Storage options include one Hyper M.2 Gen4x4 slot, one Ultra M.2 Gen3x4/SATA slot, and two SATA3 connectors. RAID 0, 1, and 10 are supported for M.2 NVMe devices, making the ASRock B840M-HVS AMD AM5 Motherboard versatile for different setups.
Connectivity and I/O

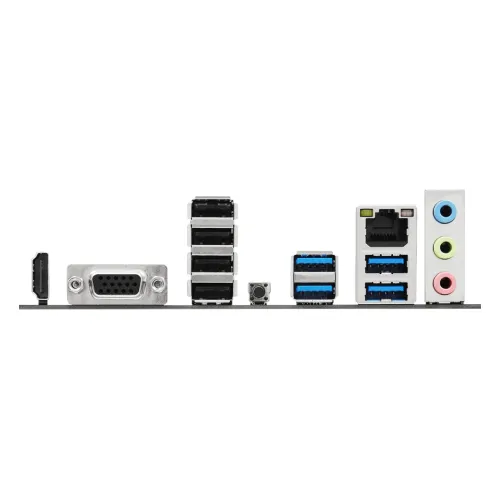

Rear I/O includes HDMI, D-Sub, four USB 3.2 Gen1 Type-A ports, four USB 2.0 ports, Gigabit LAN, HD audio jacks, and a BIOS Flashback button. Internal headers support USB 3.2 Gen1 Type-C, RGB, and addressable LED strips. With Realtek ALC897 7.1 HD audio and RTL8111H Gigabit LAN, this ASRock AM5 Motherboard ensures reliable connectivity and multimedia performance.
Durability and Design
Built with a 4+1+1 power phase design and Dr.MOS for Vcore, the ASRock B840M-HVS provides stable power delivery. It features a 2oz copper PCB, smart fan speed control, and multiple chassis/water pump fan connectors. EZ update and troubleshooting tools like BIOS Flashback and Post Status Checker make maintenance straightforward.
Form Factor and Accessories
The ASRock B840M-HVS comes in a micro-ATX form factor (24.4 × 22.9 cm) with VESA mounting support. Accessories include an I/O shield, SATA cables, and an M.2 screw. Compatible with Windows 10 and 11 (64-bit), this ASRock B840M-HVS AMD AM5 mATX Motherboard is ready for modern PC builds.
Specifications
- Chipset
- AMD B840
- M.2 slots
- 1
- RAM type
- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- Form factor
- Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm; 2oz Copper PCB
- Memory — Type
- Dual Channel DDR5 Memory Technology
- Memory — Slots
- 2 x DDR5 DIMM Slots
- Highlights — Model
- B840M-HVS
- Graphics — Graphics
- Integrated AMD RDNA graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- Highlights — Features
- Gigabit LAN, 2 x M.2
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Connector & Ports — HDMI
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible
- Connector & Ports — RAID
- - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
- Basic Information — Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Others — Bundled Software
- Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Polychrome SYNC*; UEFI; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
- Others — Special Features
- Superb Productivity; - Dual Channel DDR5; Rock-Solid Durability; - 4+1+1 Power Phase, Dr.MOS for Vcore; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer; EZ Troubleshooter
- Highlights — Supported RAM
- 2x DDR5, Up to 6800+(OC), Max 128GB
- Connector & Ports — USB (s)
- CPU:; - 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)); Chipset:; - 1 x USB 3.2 Gen1 Type-C (Front); - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front); - 8 x USB 2.0 (4 Rear, 4 Front)
- Highlights — Graphics Output
- 1x HDMI 2.1, 1x D-Sub
- Connector & Ports — D-Sub (s)
- 1 x D-Sub
- Connector & Ports — LAN Port (s)
- Gigabit LAN 10/100/1000 Mb/s; Realtek RTL8111H
- Basic Information — Supported CPU
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- Connector & Ports — Supported Storage
- CPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 2 x SATA3 6.0 Gb/s Connectors
- Connector & Ports — Internal I/O Ports
- - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header; ; Rear Panel I/O; - 2 x Antenna Mounting Points; - 1 x D-Sub Port; - 1 x HDMI Port; - 4 x USB 3.2 Gen1 Type-A Ports; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone
- Warranty Information — Manufacturing Warranty
- 3 Years
Compare with similar products

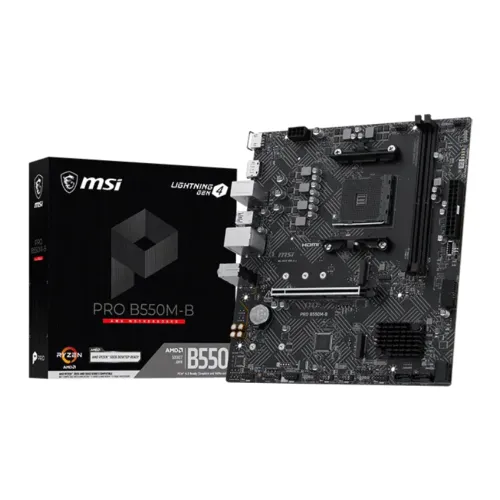

 This itemASRock B840M-HVS AMD AM5 mATX Motherboard |  GIGABYTEGigabyte B550M K WIFI6E AMD AM4 mATX Motherboard |  ASRockASRock B760M-HDV/M.2 D4 Micro ATX Motherboard |  MSIMSI PRO B550M-B AMD AM4 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳13,500 | ৳13,500 | ৳13,500 | ৳13,500 |
| Availability | In stock | In stock | Out of stock | Out of stock |
| Brand | ASRock | GIGABYTE | ASRock | MSI |
| M.2 slots | 1 | 1 | — | 2 |
| RAM type | Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules | Dual Channel DDR4 Memory Technology; Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0; ; 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.; 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. | Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; Max. overclocking frequency:; • 1DPC 1R Max speed up to 4600+ MHz; • 1DPC 2R Max speed up to 3866+ MHz |
| Form factor | Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm; 2oz Copper PCB | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm | mATX; 220mmx243.84mm |
| Chipset | AMD B840 | AMD B550 | Intel B760 | AMD B550 |
