ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard

Name: ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard
Brand: ASRock
Price: 13800 BDT
Availability: OutOfStock

Model: B760M-HDV/M.2Item #: asrock-b760m-hdv-m-2-ddr5-motherboard

৳13,800

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Chipset
- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Intel Extreme Memory Profile (XMP) 3.0 RAM type
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

Overview

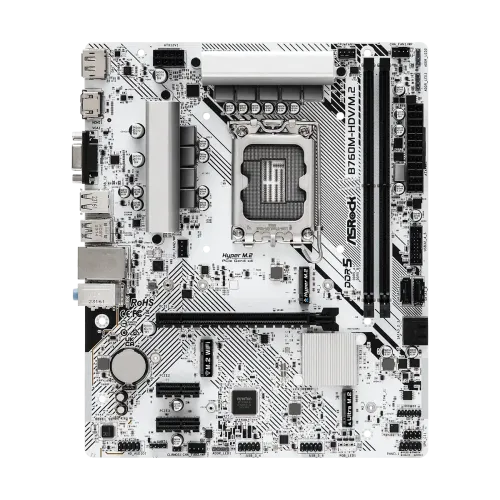

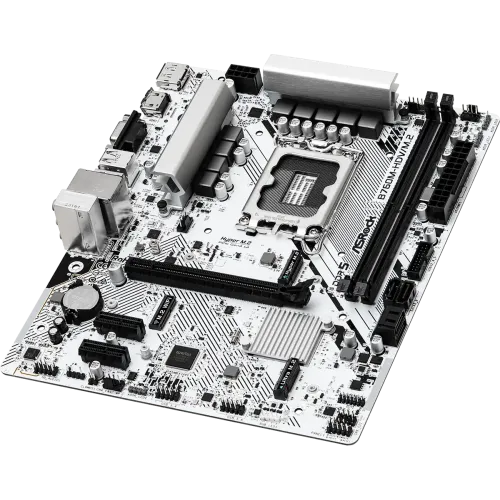

The ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard is a compact yet powerful solution designed for those who demand high performance from their systems. It supports Intel's 14th, 13th, and 12th Gen Core processors with the LGA1700 socket, ensuring that your build is future-proof and capable of handling the latest technologies. The motherboard features a 7+1+1 power phase design, delivering stable and efficient power distribution, even under heavy workloads. It supports up to 7200+ MHz DDR5 memory in a dual-channel configuration, providing exceptional speed and responsiveness. The B760M-HDV/M.2 offers a PCIe 4.0 x16 slot for high-performance graphics cards, two PCIe 3.0 x1 slots for additional peripherals, and an M.2 Key E slot for WiFi connectivity. The board's graphics output options include HDMI, DisplayPort, and D-Sub, allowing for flexible multi-display setups. Audio is handled by the Realtek ALC897 7.1 CH HD Audio Codec, ensuring high-quality sound for an immersive experience. This motherboard provides ample options with four SATA3 ports, a Hyper M.2 slot (PCIe Gen4 x4), and an Ultra M.2 slot (PCIe Gen3 x4), catering to both speed and capacity requirements. Connectivity is also robust, featuring one USB 3.2 Gen1 Type-C port, five USB 3.2 Gen1 Type-A ports, and six USB 2.0 ports for all your peripheral needs. The Dragon 2.5G LAN ensures fast and reliable network performance, while the ASRock Auto Driver Installer makes setup and installation a breeze. Overall, the ASRock B760M-HDV/M.2 is an excellent choice for anyone looking to build a powerful, feature-rich system in a compact Micro ATX form factor.

Specifications

Chipset: Intel B760
RAM type: - Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Supports Intel Extreme Memory Profile (XMP) 3.0
Form factor: - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Memory — Type: DDR5
Memory — Slots: 2
Highlights — Model: B760M-HDV/M.2
Graphics — Graphics: - Intel Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Expansion Slots — PCI: CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Show all 27 specifications

Highlights — Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Memory — Maximum Memory: 128GB
Basic Information — BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Basic Information — Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Others — Bundled Software: Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC*; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock My Favorites in UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash; - ASRock Easy RAID Installer
Others — Special Features: Superb Productivity; - Dual Channel DDR5; Rock-Solid Durability; - 7+1+1 Power Phase; -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology; Ultrafast Connectivity; - 2.5G LAN; EZ Update; - ASRock Auto Driver Installer
Highlights — Supported RAM: 2x DDR5, Max 128GB 7200+(OC)
Connector & Ports — USB (s): - 1 x USB 3.2 Gen1 Type-C (Rear); - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front); - 6 x USB 2.0 (2 Rear, 4 Front)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
Connector & Ports — D-Sub (s): 1x D-Sub
Connector & Ports — LAN Port (s): - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
Basic Information — Supported CPU: - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700); - Supports Intel Hybrid Technology; - Supports Intel Turbo Boost Max 3.0 Technology; - Supports Intel Thermal Velocity Boost (TVB); - Supports Intel Adaptive Boost Technology (ABT);
Connector & Ports — Display Port (s): 1x DisplayPort
Connector & Ports — Supported Storage: Chipset:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes**; - 4 x SATA3 6.0 Gb/s Connectors; ; * Supports Intel Volume Management Device (VMD); Supports NVMe SSD as boot disks

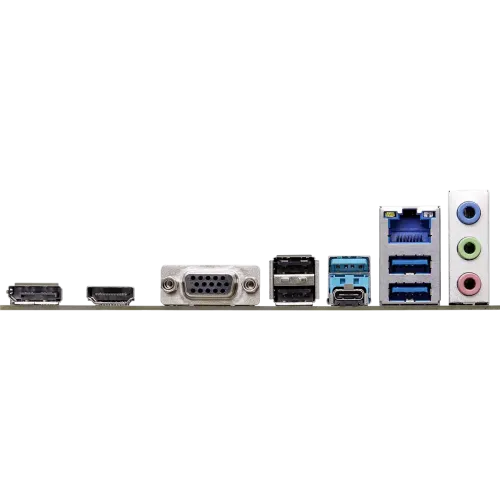

Connector & Ports — Internal I/O Ports: Rear Panel I/O; ; - 2 x Antenna Mounting Points; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone; ; ; Connector; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): - 1 x SPI TPM Header
