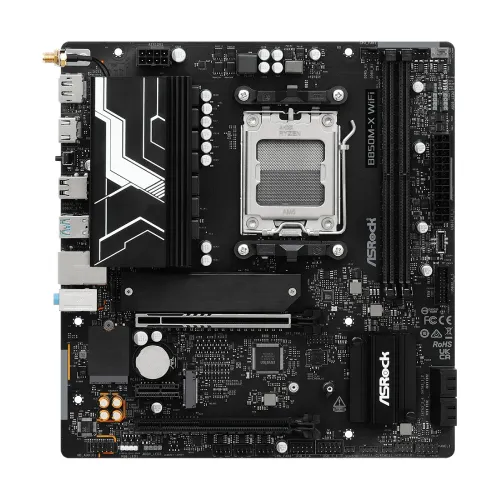

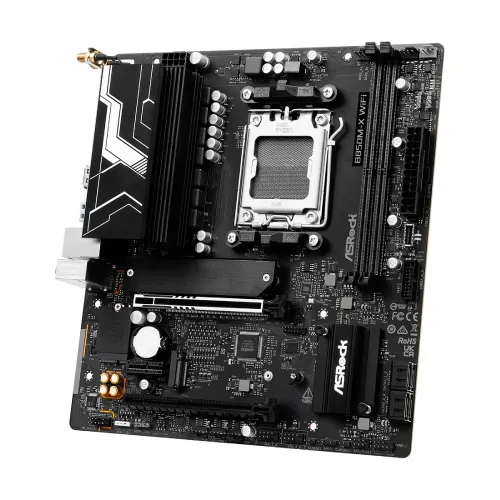

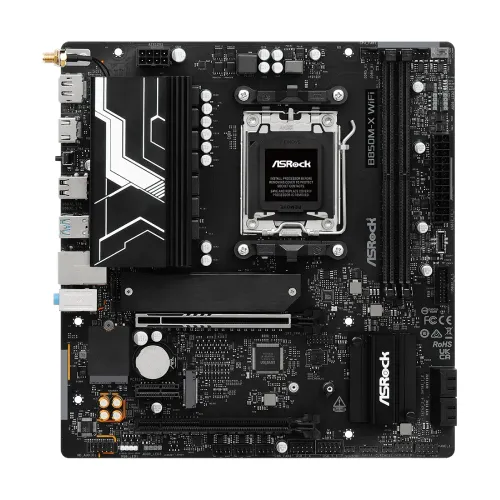

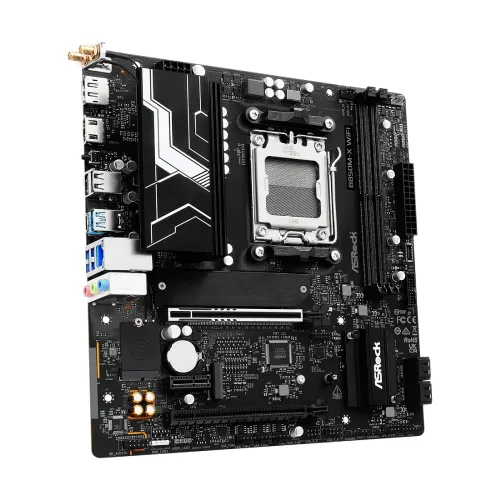

ASRock B850M-X R2.0 WiFi AMD AM5 mATX Motherboard
Model: B850M-X R2.0 WiFiItem #: asrock-b850m-x-r-2-0-wifi-motherboard
৳17,900
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B850 Chipset
- 1 M.2 slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules RAM type
- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
Overview
The ASRock B850M-X R2.0 WiFi AMD AM5 mATX Motherboard is designed for AMD Ryzen 9000, 8000, and 7000 series processors, offering PCIe Gen5 support, DDR5 memory compatibility, and ultrafast connectivity. With built-in Wi-Fi 6E, 2.5G LAN, and advanced storage options, the ASRock B850M-X R2.0 WiFi delivers strong performance for gaming and productivity. Features like BIOS Flashback, Auto Driver Installer, and Post Status Checker make updates and troubleshooting simple, while its micro-ATX form factor ensures flexibility for compact builds.
Memory and Performance
The ASRock B850M-X R2.0 WiFi supports dual-channel DDR5 memory up to 8200+(OC) with a maximum capacity of 128GB. It includes XMP and EXPO profiles for overclocking. Integrated AMD RDNA graphics provide HDMI 2.1 and DisplayPort 1.4 outputs up to 4K 120Hz, making this ASRock DDR5 Motherboard suitable for gaming, streaming, and productivity.
Expansion and Storage
This motherboard offers one PCIe 5.0 x16 slot, one PCIe 4.0 x1 slot, and one PCIe 4.0 x16 slot (x4 mode). Storage options include one Blazing M.2 Gen5x4 slot, one Hyper M.2 Gen4x4 slot, and four SATA3 connectors. RAID 0, 1, and 10 are supported for both SATA and M.2 NVMe devices, making the ASRock B850M-X R2.0 WiFi AMD AM5 Motherboard versatile for modern builds.
Connectivity and I/O

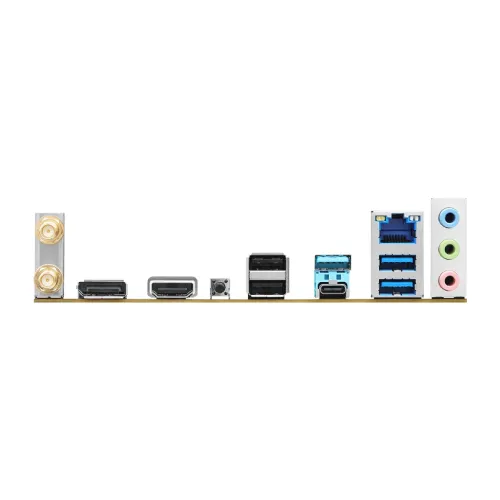

Rear I/O includes HDMI, DisplayPort, USB 3.2 Gen1 Type-C, three USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, Gigabit LAN, Wi-Fi antenna ports, HD audio jacks, and a BIOS Flashback button. Internal headers support RGB and addressable LED strips, multiple fan connectors, and USB 3.2 Gen1 Type-C. With Realtek ALC897 7.1 HD audio and Nahimic Audio, this ASRock AM5 Motherboard ensures immersive sound and reliable connectivity.
Durability and Design
Built with a 6+1+1 power phase design and Dr.MOS for VCore, the ASRock B850M-X R2.0 WiFi provides stable power delivery. It features smart fan speed control, multiple chassis/water pump connectors, and a 2oz copper PCB for durability. EZ update and troubleshooting tools like BIOS Flashback and Post Status Checker make maintenance straightforward.
Form Factor and Accessories
The ASRock B850M-X R2.0 WiFi comes in a micro-ATX form factor. Accessories include an I/O shield, SATA cables, and Wi-Fi antennas. Compatible with Windows 10 and 11 (64-bit), this ASRock B850M-X R2.0 WiFi AMD AM5 mATX Motherboard is ready for modern PC builds.
Specifications
- Chipset
- AMD B850
- M.2 slots
- 1
- RAM type
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- Form factor
- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
- Memory — Type
- Dual Channel DDR5 Memory Technology
- Memory — Slots
- 2 x DDR5 DIMM Slots
- Highlights — Model
- B850M-X R2.0 WiFi
- Graphics — Graphics
- Integrated AMD RDNA graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 1 x PCIe 4.0 x1 Slot (PCIE2)*; - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Highlights — Features
- 2.5G Gigabit LAN, 2 x M.2
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Connector & Ports — HDMI
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible
- Connector & Ports — RAID
- - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
- Basic Information — Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio
- Others — Bundled Software
- Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Polychrome SYNC*; UEFI; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
- Others — Special Features
- Superb Productivity; - Dual Channel DDR5; Rock-Solid Durability; - 4+1+1 Power Phase, Dr.MOS for Vcore; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer; EZ Troubleshooter
- Highlights — Supported RAM
- 2x DDR5, Up to 8200+(OC), Max 128GB
- Connector & Ports — USB (s)
- - 3 x USB 3.2 Gen1 Type-A (Rear); - 1 x USB 2.0 (Rear (USB_2)); Chipset:; - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front); - 2 x USB 3.2 Gen1 Type-A (Front); - 5 x USB 2.0 (1 Rear (USB_1), 4 Front)
- Highlights — Graphics Output
- 1x HDMI 2.1, 1x DisplayPort
- Connector & Ports — LAN Port (s)
- - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software
- Basic Information — Supported CPU
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- Connector & Ports — Display Port (s)
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
- Connector & Ports — Supported Storage
- CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 4 x SATA3 6.0 Gb/s Connectors
- Connector & Ports — Internal I/O Ports
- - 1 x Thermistor Cable Header; - 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen1 Header; ; Rear Panel I/O; - 2 x Antenna Ports; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- - 802.11axe Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax/axe; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.2; - Supports MU-MIMO
Compare with similar products

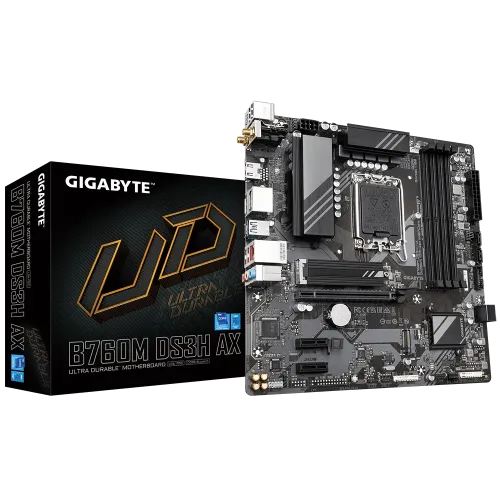

 This itemASRock B850M-X R2.0 WiFi AMD AM5 mATX Motherboard |  GIGABYTEGIGABYTE B760M DS3H AX mATX Motherboard |  ASRockASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard |  ASRockASRock B650M PG Lightning AM5 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳17,900 | ৳17,700 | ৳17,900 | ৳18,000 |
| Availability | Out of stock | Out of stock | Out of stock | Out of stock |
| Brand | ASRock | GIGABYTE | ASRock | ASRock |
| M.2 slots | 1 | — | 1 | — |
| RAM type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules | - Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Form factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Chipset | AMD B850 | Intel B760 Express Chipset | AMD B850 | AMD B650 |
