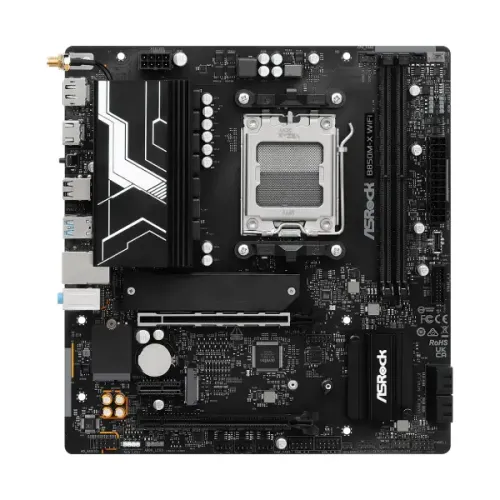

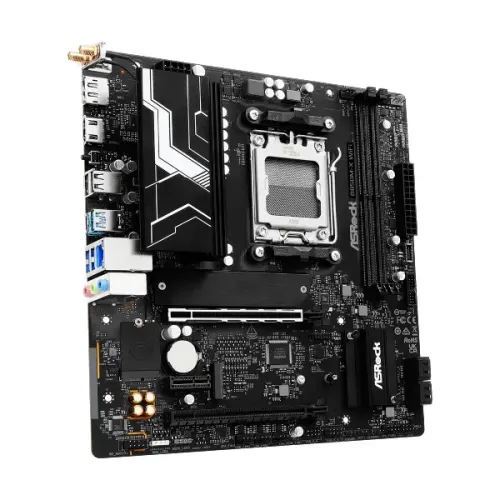

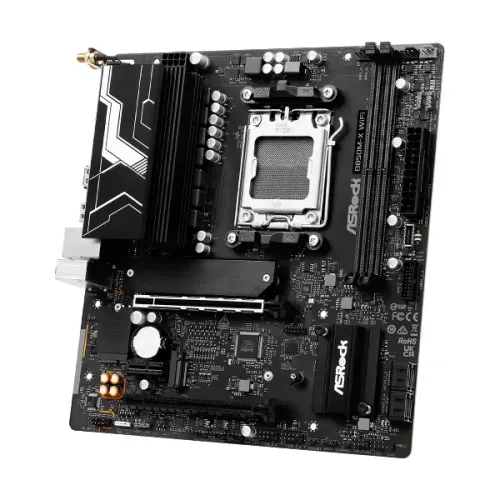

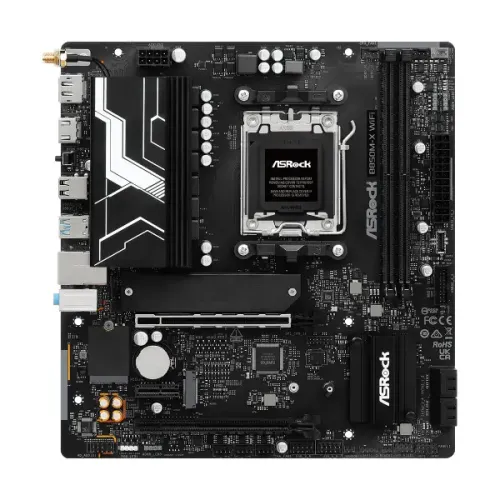

ASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard
Model: B850M-X WiFiItem #: asrock-b850m-x-wifi-am5-ddr5-motherboard
৳17,900
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B850 Chipset
- 1 M.2 slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules RAM type
- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
Overview
The ASRock B850M-X WiFi AM5 DDR5 ATX Motherboard is a next-generation Micro ATX motherboard engineered to deliver high performance, unmatched durability, and superior connectivity for modern gaming and productivity setups. Powered by the AMD B850 chipset, it fully supports AMD Ryzen 9000, 8000, and 7000 Series processors on the advanced Socket AM5 platform. The ASRock B850M-X WiFi AM5 DDR5 Motherboard is equipped with 2 DDR5 DIMM slots, supporting up to 128GB of dual-channel DDR5 memory at overclocked speeds of 8200MHz+, and is compatible with ECC/non-ECC un-buffered memory, XMP, and EXPO profiles for fine-tuned performance. This motherboard is ideal for builders looking for cutting-edge memory bandwidth and stability. In terms of graphics, the ASRock B850M-X WiFi Motherboard includes integrated AMD RDNA graphics (support varies by CPU), with one HDMI 2.1 and one DisplayPort 1.4 output, both supporting up to 4K resolution at 120Hz, HDR, and HDCP 2.3 for crystal-clear visuals in gaming, media, and productivity applications. For storage, it provides one Blazing M.2 Gen5x4 slot (128 Gb/s) and one Hyper M.2 Gen4x4 slot (64 Gb/s) directly from the CPU, as well as four SATA3 6.0 Gb/s connectors via the chipset. The board supports RAID 0, 1, and 10 for both SATA and NVMe storage, making it highly flexible for fast and secure data storage. This ASRock B850M-X WiFi AM5 DDR5 ATX Motherboard also excels in connectivity with 2.5 Gigabit LAN powered by the Dragon RTL8125BG controller, supporting smart auto bandwidth adjustment, traffic prioritization, and real-time usage stats through ASRock’s intuitive software. Wireless connectivity is next-level with an integrated 802.11axe Wi-Fi 6E module, featuring dual-band 2x2 MU-MIMO, Bluetooth 5.2, and extended 6GHz band support for ultra-low latency and faster wireless speeds. Expansion options are abundant, including one PCIe 4.0 x16 slot (CPU), one PCIe 4.0 x4 slot, one PCIe 4.0 x1 slot, and an M.2 (Key E) slot for wireless modules. The rear I/O is rich with ports, offering one USB 3.2 Gen1 Type-C, three USB 3.2 Gen1 Type-A, two USB 2.0, HDMI, DisplayPort, 2x Wi-Fi antenna connectors, RJ-45 LAN, HD audio jacks, and a BIOS Flashback button for effortless updates. Audio quality is powered by the Realtek ALC897 codec with 7.1 channel HD audio and Nahimic Audio enhancements for immersive soundscapes. Internally, it also includes five more USB ports (front), a front panel audio connector, and all standard headers for cooling and RGB. With a compact Micro ATX form factor (9.6 x 8.9 inches), the ASRock B850M-X WiFi offers elite features in a space-saving design. Its durable 6+1+1 power phase layout with Dr.MOS for VCore, ensures stability even under heavy loads. It also includes ASRock's exclusive features such as Post Status Checker, Auto Driver Installer, Instant Flash, A-Tuning, and Polychrome SYNC RGB control software. Overall, the ASRock B850M-X WiFi AM5 DDR5 ATX Motherboard is a future-proof choice for gamers, content creators, and PC enthusiasts who want premium specs, high-speed connectivity, and robust reliability in a compact and affordable platform.
Specifications
- Chipset
- AMD B850
- M.2 slots
- 1
- RAM type
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules
- Form factor
- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
- Memory — Type
- Dual Channel DDR5 Memory Technology
- Memory — Slots
- 2 x DDR5 DIMM Slots
- Highlights — Model
- B850M-X WiFi
- Graphics — Graphics
- Integrated AMD RDNA graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- CPU:; - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset:; - 1 x PCIe 4.0 x1 Slot (PCIE2)*; - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Highlights — Features
- 2.5G LAN, 802.11axe Wi-Fi 6E Module, Bluetooth 5.2
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Connector & Ports — HDMI
- 1 x HDMI 2.1
- Connector & Ports — RAID
- - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Basic Information — Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio
- Connector & Ports — Audio
- 1 x Front Panel Audio Connector
- Others — Bundled Software
- Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
- Others — Special Features
- Superb Productivity; - PCIe Gen5 (M.2); - Dual Channel DDR5; Rock-Solid Durability; - 6+1+1 Power Phase, Dr.MOS for VCore; Ultrafast Connectivity; - 2.5G LAN, 802.11axe Wi-Fi 6E Module; EZ Update; - BIOS Flashback Button; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker
- Highlights — Supported RAM
- 2x DDR5, Up to 8000+(OC), Max 128GB
- Connector & Ports — USB (s)
- CPU:; - 3 x USB 3.2 Gen1 Type-A (Rear); - 1 x USB 2.0 (Rear (USB_2)); Chipset:; - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front); - 2 x USB 3.2 Gen1 Type-A (Front); - 5 x USB 2.0 (1 Rear (USB_1), 4 Front)
- Highlights — Graphics Output
- 1x HDMI 2.1, 1x DisplayPort 1.4
- Connector & Ports — LAN Port (s)
- - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
- Basic Information — Supported CPU
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- Connector & Ports — Display Port (s)
- 1 x DisplayPort 1.4
- Connector & Ports — Supported Storage
- CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset:; - 4 x SATA3 6.0 Gb/s Connectors
- Connector & Ports — Internal I/O Ports

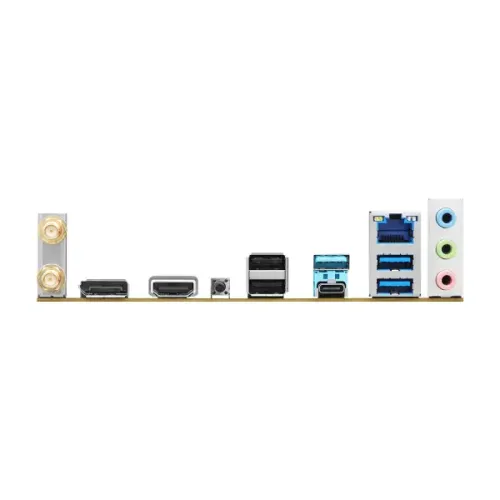

- Rear Panel I/O:; - 2 x Antenna Ports; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- - 802.11axe Wi-Fi 6E Module; - Supports IEEE 802.11a/b/g/n/ac/ax/axe; - Supports Dual-Band 2x2 with extended 6GHz band support*; - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.2; - Supports MU-MIMO
Compare with similar products
 This itemASRock B850M-X WiFi AM5 DDR5 Micro ATX Motherboard |  GIGABYTEGIGABYTE B760M DS3H AX mATX Motherboard |  ASRockASRock B850M-X R2.0 WiFi AMD AM5 mATX Motherboard |  ASRockASRock B650M PG Lightning AM5 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳17,900 | ৳17,700 | ৳17,900 | ৳18,000 |
| Availability | Out of stock | Out of stock | Out of stock | Out of stock |
| Brand | ASRock | GIGABYTE | ASRock | ASRock |
| M.2 slots | 1 | — | 1 | — |
| RAM type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC); Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | - Dual Channel DDR5 Memory Technology; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC); - Max. capacity of system memory: 256GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Form factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Chipset | AMD B850 | Intel B760 Express Chipset | AMD B850 | AMD B650 |
