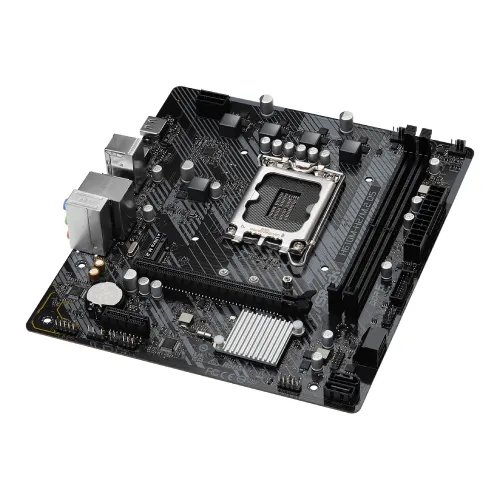

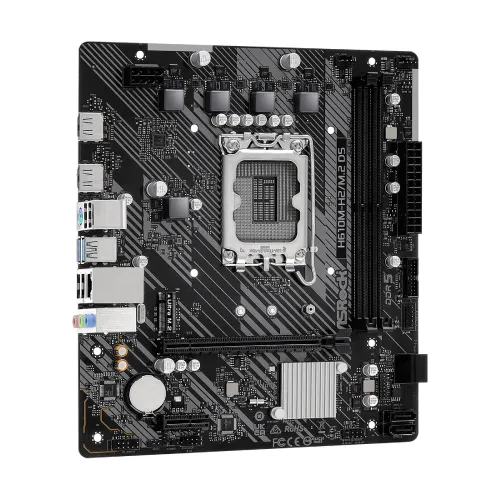

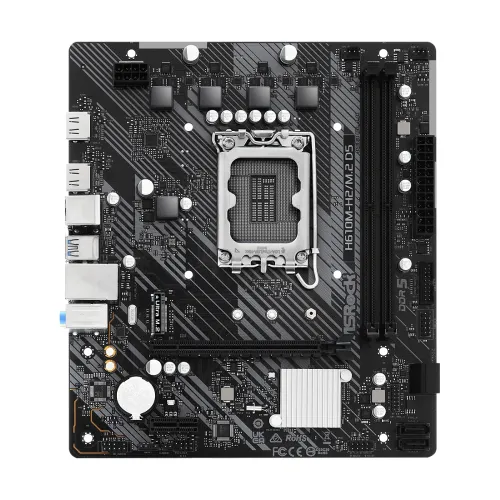

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR5 Motherboard
Model: H610M-H2/M.2Item #: asrock-h610m-h2-m2-motherboard
৳9,100৳10,000Save 9%
In stockverified
Quantity
1
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Chipset
- 1 M.2 slots
- 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600; 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800; Supports Intel Extreme Memory Profile (XMP) 3.0 RAM type
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Overview
The ASROCK H610M-H2/M.2 DDR5 Motherboard is a powerful and versatile Micro ATX solution designed for Intel’s 14th, 13th, and 12th Gen Core processors (LGA1700), making it an ideal choice for high-performance gaming, productivity, and multimedia setups. This ASROCK H610M-H2/M.2 mATX DDR5 Motherboard is built on the Intel H610 chipset and features a 128Mb AMI UEFI BIOS with GUI support, ensuring smooth system management and stable operation. It supports dual-channel DDR5 memory with 2 DIMM slots, accommodating up to 96GB of high-speed RAM (up to 5600 MHz for 13th Gen and 4800 MHz for 12th Gen CPUs) with Intel XMP 3.0 for optimized performance. Graphics capabilities are powered by Intel Xe Graphics Architecture (Gen 12) and 2 HDMI 2.1 ports supporting 4K resolution at 60Hz, providing crystal-clear visuals for high-definition displays. For storage, the ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR5 Motherboard includes 1 Ultra M.2 socket (PCIe Gen3x4, 32 Gb/s) and 4 SATA3 6.0 Gb/s connectors, while expansion options include 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot for additional cards. Networking is powered by Realtek Gigabit LAN (10/100/1000 Mb/s), and connectivity is abundant with 4 USB 3.2 Gen1 ports, 6 USB 2.0 ports, internal headers for fan control, front panel audio, and TPM security support. The Realtek ALC897 codec delivers 7.1 channel HD audio for an immersive sound experience. The rear I/O of this ASROCK H610M-H2/M.2 DDR5 Motherboard includes a PS/2 port, dual HDMI outputs, multiple USB ports, an RJ-45 LAN port, and HD audio jacks, ensuring full peripheral compatibility. Users also benefit from ASRock utilities such as A-Tuning, EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, and Instant Flash, making firmware updates and system optimization simple. Compact yet feature-rich, the ASROCK H610M-H2/M.2 mATX DDR5 Motherboard combines cutting-edge performance, DDR5 memory support, and multi-generation Intel CPU compatibility for a robust computing experience.
Specifications
- Chipset
- Intel H610
- M.2 slots
- 1
- RAM type
- 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600; 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800; Supports Intel Extreme Memory Profile (XMP) 3.0
- Form factor
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
- Memory — Type
- Dual Channel DDR5 Memory Technology
- Memory — Slots
- 2 x DDR5 DIMM Slots
- Highlights — Model
- H610M-H2/M.2
- Graphics — Graphics
- Intel Xe Graphics Architecture (Gen 12); 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
Show all 25 specificationsShow fewer
- Expansion Slots — PCI
- CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset:1 x PCIe 3.0 x1 Slot (PCIE2)
- Highlights — Features
- Realtek Gigabit LAN 10/100/1000 Mb/s
- Memory — Maximum Memory
- 96GB
- Basic Information — BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Connector & Ports — HDMI
- 2x HDMI Port 2.1
- Basic Information — Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Connector & Ports — Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Others — Bundled Software
- ASRock Motherboard Utility (A-Tuning); UEFI; ASRock EZ Mode; ASRock Full HD UEFI; ASRock My Favorites in UEFI; ASRock Auto Driver Installer; ASRock Instant Flash;
- Highlights — Supported RAM
- 2x DDR5, up to 5600 Hz
- Connector & Ports — USB (s)
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front); 6 x USB 2.0 (4 Rear, 2 Front)
- Highlights — Graphics Output
- 2x HDMI, Max. Resolution up to 4K 60Hz
- Connector & Ports — LAN Port (s)
- Gigabit LAN 10/100/1000 Mb/s; Realtek 8111H
- Basic Information — Supported CPU
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); Supports Intel® Hybrid Technology; Supports Intel® Turbo Boost Max 3.0 Technology
- Connector & Ports — Supported Storage
- Chipset:; 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode; 4 x SATA3 6.0 Gb/s Connectors
- Connector & Ports — Internal I/O Ports
- 1 x SPI TPM Header; 1 x Chassis Intrusion and Speaker Header; 1 x CPU Fan Connector (4-pin)*; 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x 24-pin ATX Power Connector; 1 x 8 pin 12V Power Connector; 1 x Front Panel Audio Connector; 1 x USB 2.0 Header (Supports 2 USB 2.0 ports); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports).; Rear Panel I/O; 1 x PS/2 Mouse/Keyboard Port; 2 x HDMI Ports; 2 x USB 3.2 Gen1 Type-A Ports; 4 x USB 2.0 Ports; 1 x RJ-45 LAN Port; HD Audio Jacks: Line in / Front Speaker / Microphone
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Compare with similar products
 This itemASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR5 Motherboard |  GIGABYTEGIGABYTE B450M K AMD AM4 Micro ATX Motherboard |  GIGABYTEGIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard |  GIGABYTEGigabyte H410M H 10th Gen Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳9,100 | ৳8,800 | ৳8,800 | ৳9,200 |
| Availability | In stock | In stock | In stock | In stock |
| Brand | ASRock | GIGABYTE | GIGABYTE | GIGABYTE |
| M.2 slots | 1 | — | — | 1 |
| RAM type | 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600; 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800; Supports Intel Extreme Memory Profile (XMP) 3.0 | Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Dual channel memory architecture; Support for DDR3 1600/1333 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules | Intel® Core™ i9/i7 processors:; Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules; Intel Core i5/ i3/ Pentium /Celeron processors:; Support for DDR4 2666/ 2400/ 2133 MHz memory modules |
| Form factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm | Micro ATX Form Factor; 24.4cm x 19.5cm | Micro ATX Form Factor; 22.6cm x 17cm | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Chipset | Intel H610 | AMD B450 | Intel H81 Express Chipset | Intel H410 Express Chipset |
