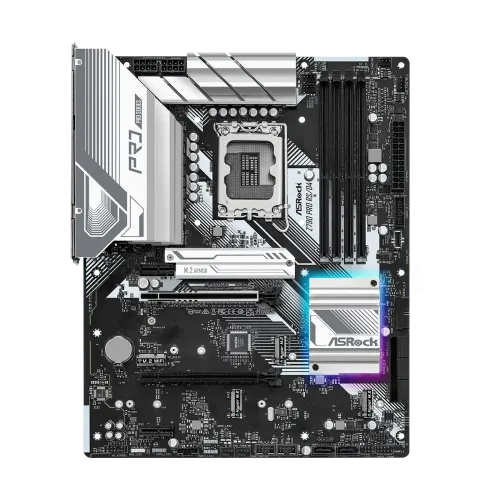

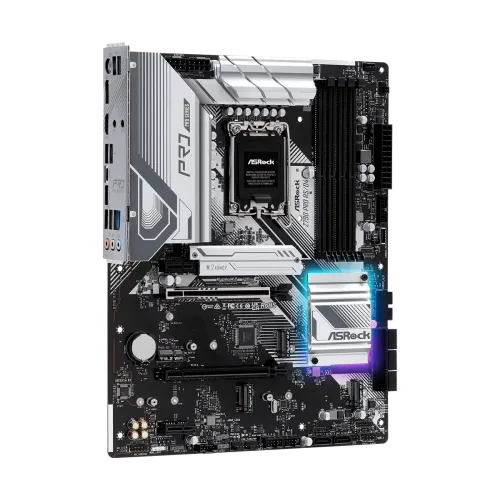

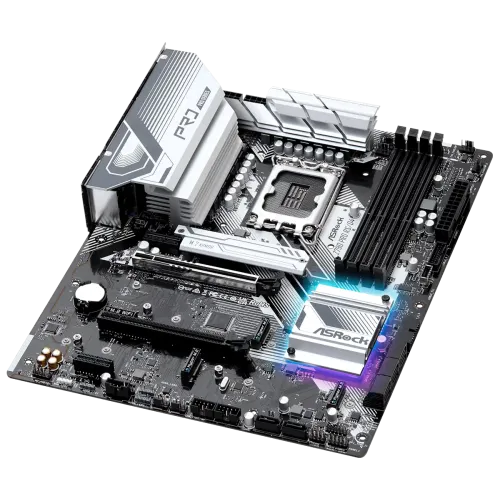

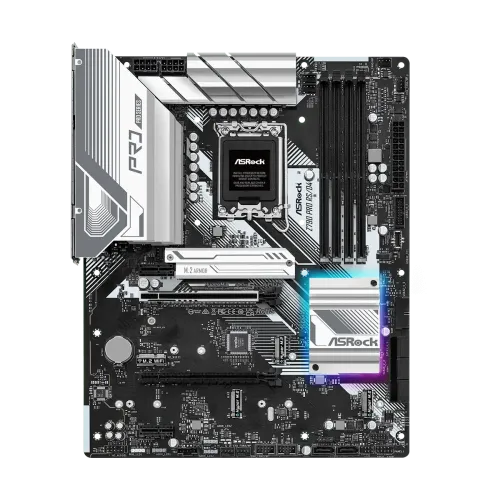

ASRock Z790 Pro RS/D4 ATX Motherboard

Name: ASRock Z790 Pro RS/D4 ATX Motherboard
Brand: ASRock
Price: 28500 BDT
Availability: OutOfStock

Model: Z790 Pro RS/D4Item #: asrock-z790-pro-rs-d4-motherboard

৳28,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z790 Chipset
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Supports Intel Extreme Memory Profile (XMP) 2.0 RAM type
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 2oz Copper PCB

Overview

ASRock Z790 Pro RS/D4 motherboard supports 14th Gen 13th Gen & 12th Gen Intel Core Processors (LGA1700), 14+1+1 Phase Power Design, Dr.MOS for VCore+GT. It comes with 4 x DDR4 DIMMs and supports up to 5333+(OC). This Motherboard featured with 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi. It comes with 1 HDMI, 1 DisplayPort, eDP graphics output options. The ASRock Z790 Pro RS/D4 offers 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. This ASRock motherboard also has 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3. It comes with 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front), and Realtek 2.5G LAN. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. ASRock Z790 Pro RS/D4 13th Gen ATX Motherboard features via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio, which offers you the most engaging listening experience, vibrant and rich with details. This ASRock Z790 Pro RS/D4 motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD. This 13th Gen ASRock motherboard is also capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. The latest ASRock Z790 Pro RS/D4 Motherboard comes with 03 years warranty.

Specifications

Chipset: Intel Z790
RAM type: - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Supports Intel Extreme Memory Profile (XMP) 2.0
Form factor: - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 2oz Copper PCB
Memory — Type: DDR4
Memory — Slots: 4 x DDR4 DIMM Slots
Highlights — Model: Z790 Pro RS/D4
Graphics — Graphics: - Intel Xe Graphics Architecture (Gen 12); - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Expansion Slots — PCI: CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode; Chipset:; - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode; - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT); ; - Supports AMD CrossFire

Show all 27 specifications

Highlights — Features: 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
Connector & Ports — HDMI: 1 x HDMI Port
Connector & Ports — RAID: - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices; - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Basic Information — Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio
Connector & Ports — Audio: HD Audio Jacks: Line in / Front Speaker / Microphone
Others — Bundled Software: Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock My Favorites in UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash; - ASRock Easy RAID Installer
Others — Special Features: Superb Productivity; - PCIe Gen5 (Graphics); Rock-Solid Durability; - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor; - Flexible Integrated I/O Shield; Ultrafast Connectivity; - 2.5G LAN EZ Update; - ASRock Auto Driver Installer; EZ Troubleshooter; - ASRock Post Status Checker
Highlights — Supported RAM: 4 x DDR4 DIMMs, up to 5333+(OC)

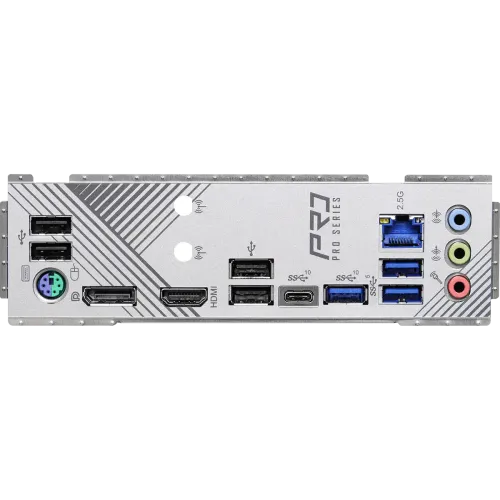

Connector & Ports — USB (s): - 1 x USB 3.2 Gen2x2 Type-C (Front); - 1 x USB 3.2 Gen2 Type-C (Rear); - 1 x USB 3.2 Gen2 Type-A (Rear); - 6 x USB 3.2 Gen1 (2 Rear, 4 Front); - 8 x USB 2.0 (4 Rear, 4 Front)
Highlights — Graphics Output: 1x HDMI, 1x DisplayPort, eDP
Connector & Ports — LAN Port (s): - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
Basic Information — Supported CPU: - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700); - Supports Intel Hybrid Technology; - Supports Intel Turbo Boost Max 3.0 Technology; - Supports Intel Thermal Velocity Boost (TVB); - Supports Intel Adaptive Boost Technology (ABT)
Connector & Ports — Display Port (s): 1 x DisplayPort 1.4
Connector & Ports — Supported Storage: CPU:; - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; - 8 x SATA3 6.0 Gb/s Connectors
Connector & Ports — Internal I/O Ports: - 1 x eDP Signal Connector; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header; - 3 x Addressable LED Headers; - 1 x CPU Fan Connector (4-pin); - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control); - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM Header;
