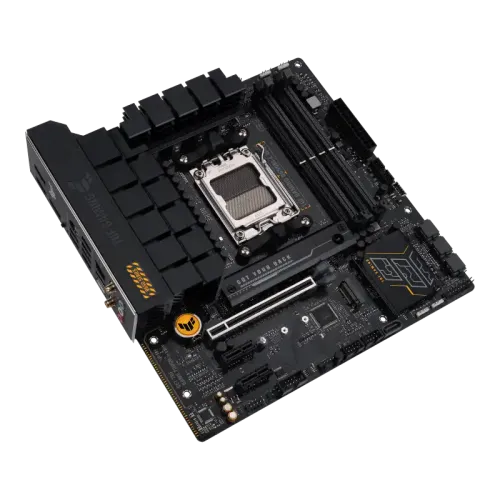

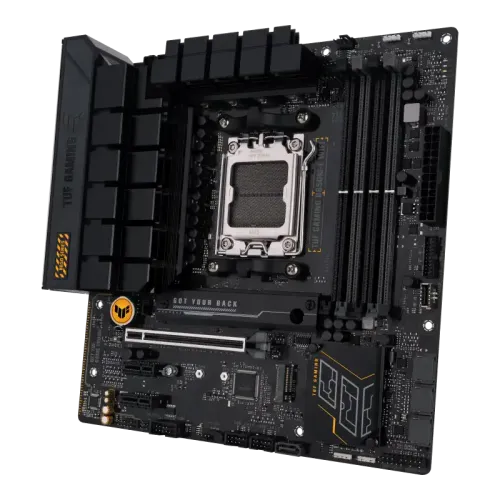

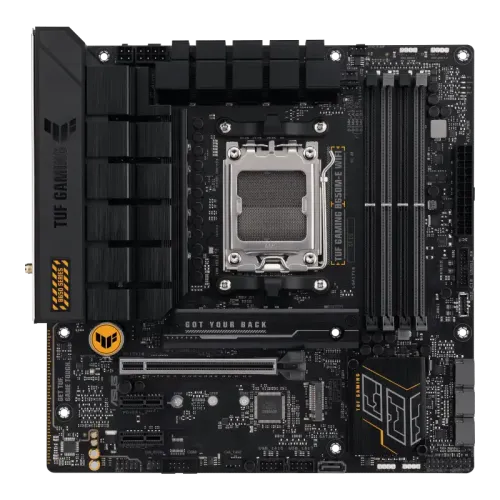

Asus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard
Model: TUF GAMING B650M-E WIFIItem #: asus-tuf-gaming-b650m-e-wifi-motherboard
৳28,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B650 Chipset
- DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II RAM type
- micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Overview
The ASUS TUF GAMING B650M-E WIFI motherboard is compatible with the latest AMD Ryzen 8000 & 7000-series processors. This motherboard is built with military-grade components, an upgraded power solution, and an extensive cooling system, ensuring rock-solid and stable performance during marathon gaming sessions. It's not just about performance; this motherboard undergoes rigorous endurance testing to ensure it can withstand challenging conditions. Asus TUF GAMING B650M-E WIFI Motherboard features 8+2 power stages, PCIe 5.0 for M.2 storage, DDR5 memory module support, USB 3.2 Gen 2 Type-C, 2.5 Gb Ethernet, and WiFi 6, it covers all the bases for modern gaming and computing needs. This motherboard also offers intelligent control, allowing you to fine-tune and optimize various aspects of your system, including CPU performance, power savings, and more. The UEFI BIOS provides easy configuration options for both beginners and experienced users. It even features advanced tuning capabilities for serious tweakers. The TUF GAMING B650M-E WIFI motherboard has an enlarged VRM heatsink, optimized M.2 heatsink design, and comprehensive fan controls. Asus TUF GAMING B650M-E WIFI Motherboard comes with ESD Guards, TUF LANGuard, and a stainless steel back I/O panel. It also offers convenient features like M.2 Q-Latch, which simplifies M.2 SSD installation, and Q-LED troubleshooting lights. The motherboard offers ultrafast networking, AI noise cancellation, and high-quality audio with DTS Audio Processing. Its RGB lighting can be customized through Aura Sync, creating a personalized gaming atmosphere.
Specifications
- Chipset
- AMD B650
- RAM type
- DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II
- Form factor
- micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- Memory — Type
- DDR5
- Memory — Slots
- 4 DIMMs
- Highlights — Model
- TUF GAMING B650M-E WIFI
- Graphics — Graphics
- 2 x DisplayPort; 1 x HDMITM port
- Expansion Slots — PCI
- AMD Ryzen 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot; AMD B650 Chipset; 2 x PCIe 4.0 x1 slots
Show all 27 specificationsShow fewer
- Highlights — Features
- Wi-Fi 6, Realtek 2.5Gb Ethernet
- Memory — Maximum Memory
- 192GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; - Power Saving; - Two-Way AI Noise Cancelation; AI Suite 3; - TurboV EVO; - DIGI+ VRM; - PC Cleaner; TUF GAMING CPU-Z; DTS Audio Processing; MyASUS; Norton 360 for Gamers(60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS TUF PROTECTION; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot Core+; - SafeDIMM; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
- Highlights — Supported RAM
- 4x DDR5, up to 192GB, 7600+(OC)
- Connector & Ports — USB (s)

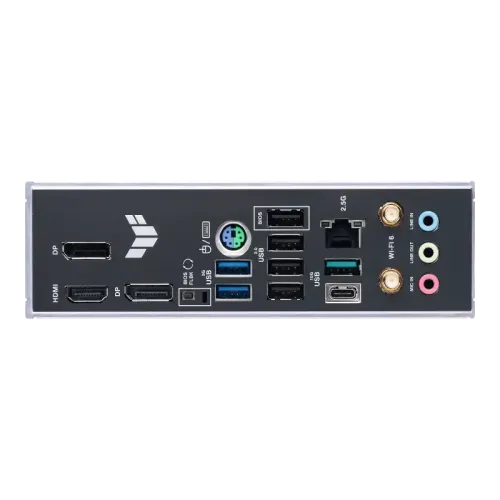

- Rear USB (Total 8 ports); 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C); 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Highlights — Graphics Output
- 1x HDMI, 2x Display Port
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
- Basic Information — Supported CPU
- AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
- Connector & Ports — Display Port (s)
- 2x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD B650 Chipset; 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function;
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module

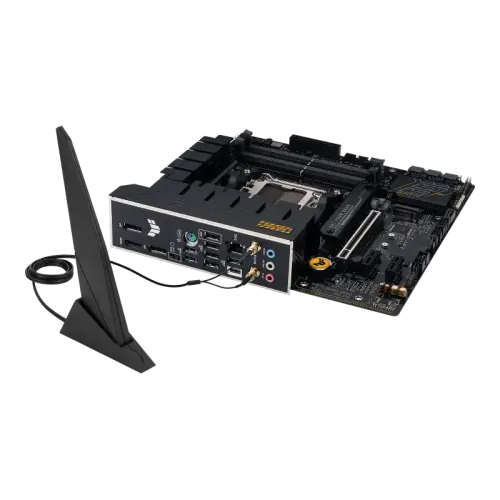

- Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2
Compare with similar products
 This itemAsus TUF GAMING B650M-E WIFI AMD AM5 micro-ATX Motherboard |  GIGABYTEGIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard |  GIGABYTEGIGABYTE Z790 D DDR5 ATX Motherboard |  ASRockASRock Z790 Pro RS/D4 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳28,500 | ৳28,500 | ৳28,500 | ৳28,500 |
| Availability | Out of stock | Out of stock | Out of stock | Out of stock |
| Brand | Asus | GIGABYTE | GIGABYTE | ASRock |
| RAM type | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD EXTended Profiles for Overclocking (EXPO); OptiMem II | 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | 14th and 13th Generation Intel Core i9/i7 Pocessors:; - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules; 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:; - Support for DDR5 4800/4400 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC); - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Form factor | micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | ATX Form Factor; 30.5cm x 24.4cm | ATX Form Factor; 30.5cm x 24.4cm | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 2oz Copper PCB |
| Chipset | AMD B650 | AMD B650 | Intel Z790 Express Chipset | Intel Z790 |
