ASUS B760M-AYW WIFI D4 mATX Motherboard
Model: B760M-AYW WIFI D4Item #: asus-b760m-ayw-wifi-d4-motherboard
৳19,700
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Chipset
- 2 M.2 slots
- 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) RAM type
- mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Overview
The ASUS B760M-AYW WIFI D4 mATX Motherboard is an excellent option for both gamers and creators, providing a strong platform for Intel's 14th, 13th, and 12th Gen processors, supporting LGA1700 sockets. Its two DIMM slots support up to 64GB of DDR4 memory, with speeds up to 5333MHz (OC), allowing for quick and seamless performance. It is powered by the Intel B760 chipset. With two PCIe 4.0 x1 slots for additional devices and one PCIe 4.0 x16 slot for graphics cards, the ASUS B760M-AYW WIFI D4 mATX Motherboard offers great expansion options. It provides versatile and fast data access for storage by supporting four SATA 6Gb/s ports and two M.2 slots with PCIe 4.0 x4 mode. The ASUS B760M-AYW WIFI D4 mATX Motherboard's connectivity is its strongest point; it has Realtek 2.5Gb Ethernet and Wi-Fi 6 for incredibly quick networking. Bluetooth 5.2 further improves wireless peripheral connectivity. With four USB 3.2 Gen 1 Type-A connections, two USB 2.0 ports, and an HDMI port for integrated graphics, the back I/O panel offers plenty of USB connectivity. The Realtek 7.1 Surround Sound High Definition Audio CODEC, which supports playback at up to 24-bit/192kHz, provides excellent sound quality for audio performance. Advanced ASUS features like multiple fan headers, DIGI+ VRM, and a VRM heatsink design promote stability and cooling. With addressable Gen 2 and RGB connections, users may personalize their lighting configurations with the ASUS B760M-AYW WIFI D4 mATX Motherboard's Aura Sync RGB feature. It guarantees long-lasting durability with ASUS's 5X Protection III, which includes overvoltage protection, SafeSlot Core, and stainless-steel back I/O. It is a great choice for a range of customers looking for high performance, stability, and customization in a small mATX form factor because it also includes user-friendly software like Armoury Crate, AI Suite 3, and UEFI BIOS for system monitoring and tuning.
Specifications
- Chipset
- Intel B760 Chipset
- M.2 slots
- 2
- RAM type
- 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)
- Form factor
- mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- B760M-AYW WIFI D4
- Graphics — Graphics
- 1 x HDMI port; Graphics specifications may vary between CPU types; Supports 4K@60Hz as specified in HDMI 2.1
Show all 28 specificationsShow fewer
- Highlights — Storage
- 2 x M.2 slots, 4 x SATA 6Gb/s ports
- Expansion Slots — PCI
- Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 2 x PCIe 4.0 x1 slots
- Highlights — Features
- Realtek 2.5Gb Ethernet, Wi-Fi 6, PCIe 4.0 x16 slot
- Memory — Maximum Memory
- 64GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert; - Power Saving; AI Suite 3; - DIGI+ VRM; - PC Cleaner; ASUS CPU-Z; MyASUS; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS EZ DIY; - ProCool; ASUS Thermal Solution; - VRM heatsink design; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
- Highlights — Supported RAM
- 2 x DIMM, Max. 64GB, DDR4
- Connector & Ports — USB (s)

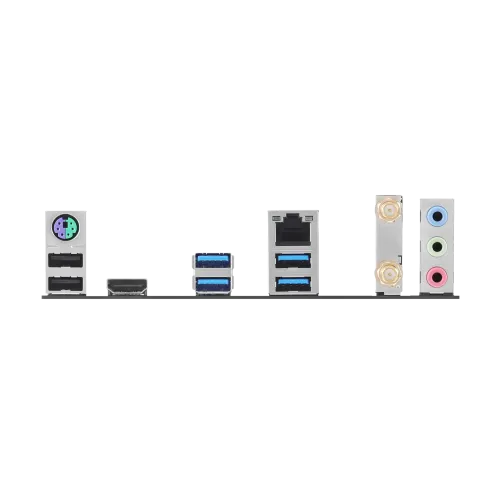

- Rear USB (Total 6 ports); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A）; Front USB (Total 4 ports); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet
- Basic Information — Supported CPU
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 2 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6; Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth® v5.2
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
Compare with similar products
 This itemASUS B760M-AYW WIFI D4 mATX Motherboard |  AsusASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard |  AsusASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard |  GIGABYTEGIGABYTE B760M GAMING DDR5 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳19,700 | ৳19,700 | ৳19,800 | ৳19,800 |
| Availability | Out of stock | In stock | In stock | Out of stock |
| Brand | Asus | Asus | Asus | GIGABYTE |
| M.2 slots | 2 | — | 2 | — |
| RAM type | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II | p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Form factor | mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm); | micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ); | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Chipset | Intel B760 Chipset | AMD A620 Chipset | AMD B650 Chipset | Intel B760 Express Chipset |
