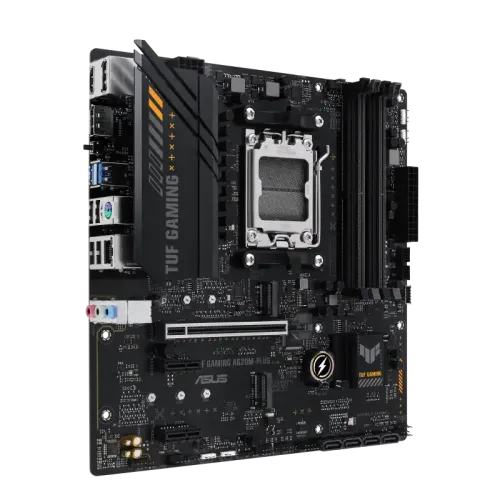

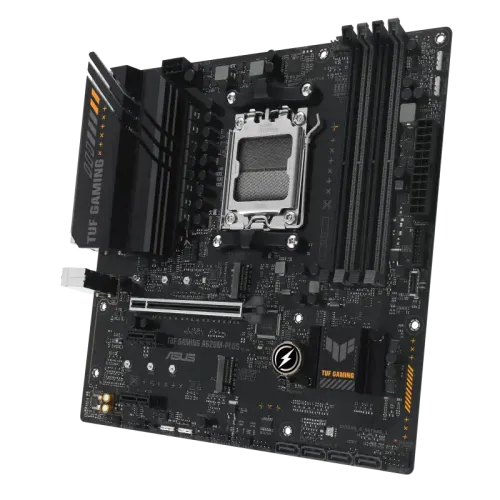

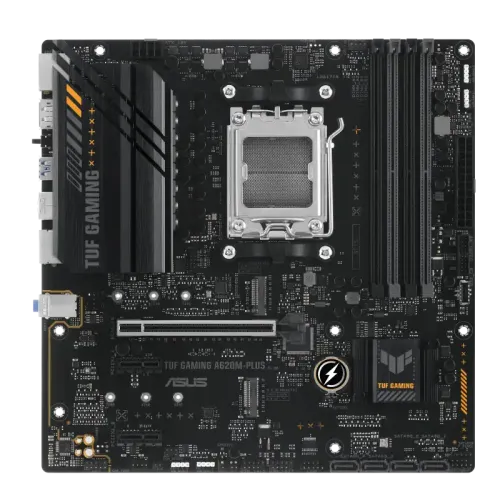

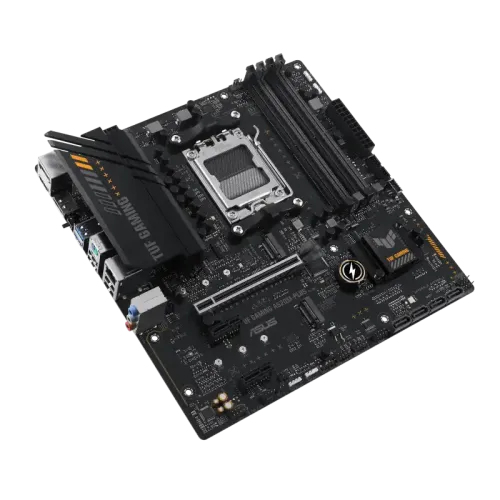

ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard
Model: TUF GAMING A620M-PLUSItem #: asus-tuf-gaming-a620m-plus-motherboard
৳19,700৳19,800Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD A620 Chipset
- DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II RAM type
- Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm);
Overview
The ASUS TUF GAMING A620M-PLUS is a Micro-ATX motherboard designed for gaming. It supports the AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors. The motherboard features the AMD A620 chipset and supports up to 128GB of DDR5 memory with speeds up to 6400MHz (OC). It has dual-channel memory architecture and supports AMD Extended Profiles for overclocking. The graphics capabilities include 2 x DisplayPort and 1 x HDMI ports, with support for high-resolution displays up to 8K at 60Hz and 4K at 60Hz respectively. The expansion slots consist of 1 x PCIe 4.0 x16 slot for the CPU and 2 x PCIe 3.0 x1 slots for additional expansion cards. For storage, it has 2 x M.2 slots (supporting PCIe 4.0 x4 mode) and 4 x SATA 6Gb/s ports. The ASUS TUF GAMING A620M-PLUS Motherboard also features 1 x Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 and USB 2.0 ports, Realtek 7.1 Surround Sound High Definition Audio CODEC, and various internal I/O connectors for fans, power, storage, and USB. It comes with ASUS TUF PROTECTION features for enhanced durability, ASUS Q-Design for easy installation and maintenance, and ASUS Thermal Solution for efficient cooling. The ASUS TUF GAMING A620M-PLUS Motherboard supports ASUS-exclusive software such as Armoury Crate and AI Suite 3 for system optimization and control. It is compatible with Windows 11 and Windows 10 64-bit operating systems.
Specifications
- Chipset
- AMD A620 Chipset
- RAM type
- DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II
- Form factor
- Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm);
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- TUF GAMING A620M-PLUS
- Graphics — Graphics
- 2 x DisplayPort**; 1 x HDMI port***; ** Support max. 8K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots — PCI
- AMD Ryzen 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot; AMD A620 Chipset; 2 x PCIe 3.0 x1 slots
Show all 25 specificationsShow fewer
- Highlights — Features
- 1 x Realtek 2.5Gb Ethernet
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; - Power Saving; - Two-Way AI Noise Cancellation; AI Suite 3; - TurboV EVO; - DIGI+ VRM; - PC Cleaner; TUF GAMING CPU-Z; Norton 360 for Gamers (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS TUF PROTECTION; - DIGI+ VRM; - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers

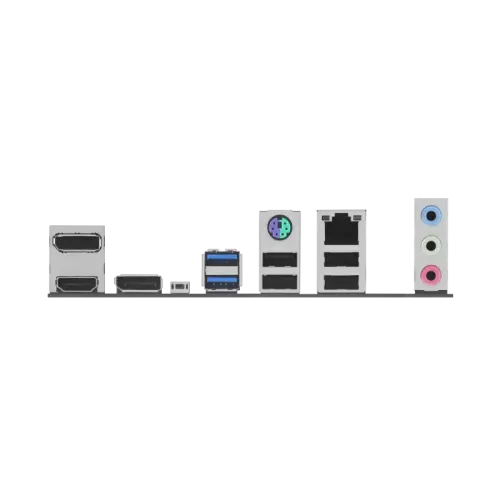

- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Highlights — Graphics Output
- 2 x DisplayPort, 1 x HDMI port
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
- Basic Information — Supported CPU
- AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors
- Connector & Ports — Display Port (s)
- 2 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD A620 Chipset; 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 Years
Compare with similar products
 This itemASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard |  AsusASUS B760M-AYW WIFI D4 mATX Motherboard |  AsusASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard |  GIGABYTEGIGABYTE B760M GAMING DDR5 Micro ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳19,700 | ৳19,700 | ৳19,800 | ৳19,800 |
| Availability | In stock | Out of stock | In stock | Out of stock |
| Brand | Asus | Asus | Asus | GIGABYTE |
| RAM type | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); OptiMem II | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) | p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Form factor | Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm); | mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ); | Micro ATX Form Factor; 24.4cm x 22.5cm |
| Chipset | AMD A620 Chipset | Intel B760 Chipset | AMD B650 Chipset | Intel B760 Express Chipset |
| M.2 slots | — | 2 | 2 | — |
