Shop all Asus products

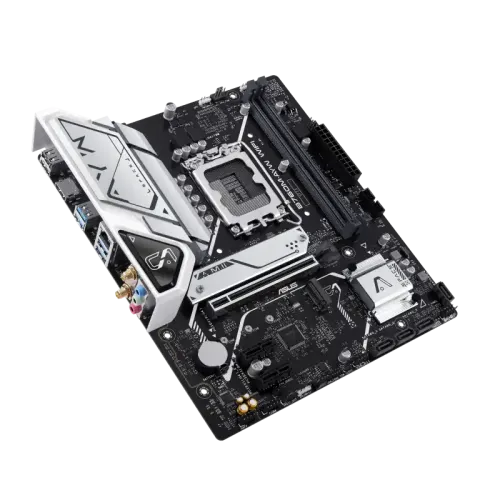

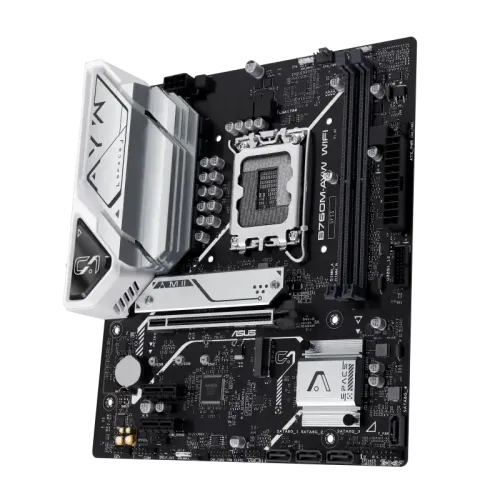

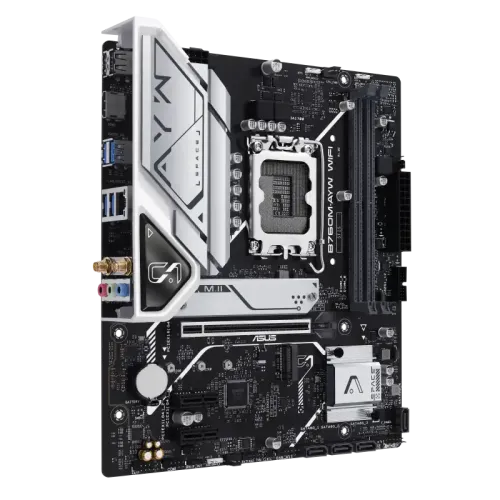

ASUS B760M-AYW WIFI mATX Motherboard
Model: B760M-AYW WIFIItem #: asus-b760m-ayw-wifi-motherboard
৳19,200৳19,500Save 2%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Chipset
- 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) RAM type
- mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Overview
The ASUS B760M-AYW WIFI mATX motherboard offers a powerful, compact solution ideal for gaming, content creation, and advanced AI applications. Built with the Intel B760 chipset and LGA 1700 socket, it’s compatible with Intel’s 12th, 13th, and future 14th-gen processors. This flexibility gives builders an edge in choosing or upgrading to the latest processors, ensuring longevity and performance in every build. For those exploring artificial intelligence computing, the ASUS B760M-AYW WIFI motherboard is engineered with robust connectivity and power management features, making it a future-ready choice for demanding AI tasks and other intensive applications. With high-speed connectivity options, including PCIe 4.0 slots and two PCIe 4.0 M.2 slots, users can achieve ultrafast storage and data transfer speeds. The board’s Realtek 2.5Gb Ethernet and WiFi 6 provide stable, high-speed internet connectivity, essential for gaming, streaming, and more. The inclusion of front USB 3.2 Gen 1 ports further improves data transfer convenience, allowing users to easily connect devices for faster performance. To ensure system stability and long-term reliability, the ASUS B760M-AYW WIFI motherboard is designed with a comprehensive cooling solution. This includes a VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and the Fan Xpert 2+ feature, all working together to keep temperatures in check during heavy usage. This robust cooling setup protects the system, extending the life of components by preventing overheating. The motherboard also offers Aura Sync RGB lighting with onboard Addressable Gen 2 headers. These allow for easy customization of RGB LED strips, making it simple to synchronize lighting with other Aura Sync-compatible components. This adds a personalized touch to your build, enabling it to reflect your unique style. The ASUS B760M-AYW WIFI motherboard is an excellent choice for users looking for a future-ready, high-performance mATX build that combines AI capabilities, high-speed connectivity, effective cooling, and a visually customizable setup.
Specifications
- Chipset
- Intel B760 Chipset
- RAM type
- 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP)
- Form factor
- mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
- Memory — Type
- DDR5
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- B760M-AYW WIFI
- Graphics — Graphics
- Supports 4K@60Hz as specified in HDMITM 2.1.
- Highlights — Storage
- 2 x M.2 slots, 4 x SATA 6Gb/s ports
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core™ Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 2 x PCIe 4.0 x1 slots
- Highlights — Features
- Realtek 2.5Gb Ethernet, Wi-Fi 6
- Memory — Maximum Memory
- Max. 96GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3 x audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert 2+; - Power Saving; - Two-Way AI Noise Cancellation; AI Suite 3; - DIGI+ VRM; - PC Cleaner; ASUS CPU-Z; MyASUS; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core +; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS EZ DIY; - ProCool; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; Aura Sync; - Addressable Gen 2 headers
- Highlights — Supported RAM
- 2 x DIMM, Max. 96GB, DDR5
- Connector & Ports — USB (s)

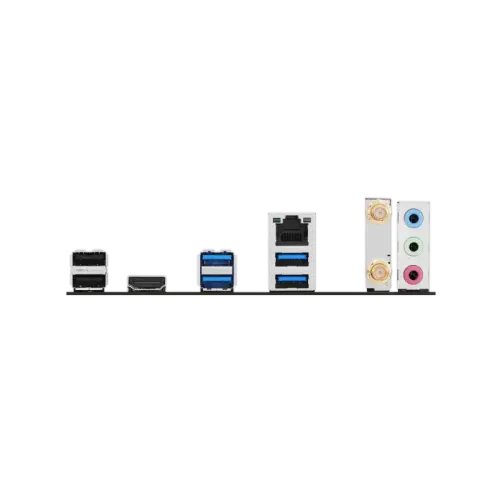

- Rear USB (Total 6 ports); 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A）; Front USB (Total 4 ports); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core™ Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6; Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
Compare with similar products
 This itemASUS B760M-AYW WIFI mATX Motherboard |  MSIMSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard |  AsusASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard |  MSIMSI PRO B760M-A WIFI mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳19,200 | ৳19,100 | ৳19,200 | ৳19,200 |
| Availability | In stock | Out of stock | In stock | Out of stock |
| Brand | Asus | MSI | Asus | MSI |
| RAM type | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8000+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 5600+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Form factor | mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | mATX; 243.84mmx243.84mm | Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm); | mATX; 243.84mmx243.84mm |
| Chipset | Intel B760 Chipset | AMD B840 | AMD A620 Chipset | INTEL B760 |
| M.2 slots | — | 2 | — | — |
