ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard
Model: TUF GAMING A620M-PLUS WIFIItem #: asus-tuf-gaming-a620m-plus-wifi-motherboard
৳19,200৳19,800Save 3%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD A620 Chipset
- DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II RAM type
- Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm);
Overview

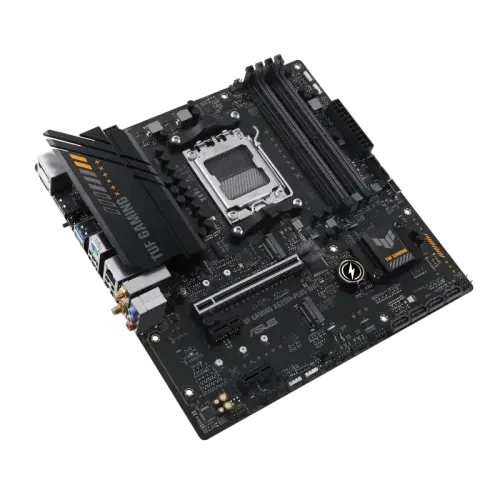

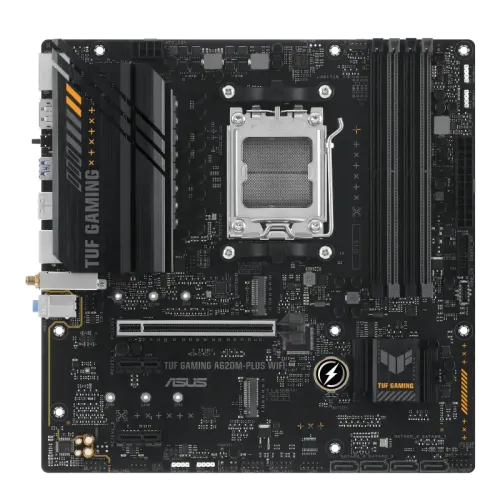

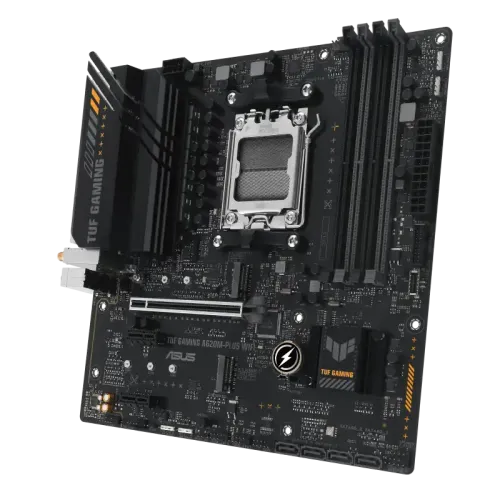

The ASUS TUF GAMING A620M-PLUS WIFI is a Micro-ATX motherboard designed for gaming. It supports the AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors. The motherboard features the AMD A620 chipset and supports up to 192GB of DDR5 memory with speeds up to 7600MHz+ (OC). It has dual-channel memory architecture and supports AMD Extended Profiles for overclocking. The graphics capabilities include 2 x DisplayPort and 1 x HDMI ports, with support for high-resolution displays up to 8K at 60Hz and 4K at 60Hz respectively. The expansion slots consist of 1 x PCIe 4.0 x16 slot for the CPU and 2 x PCIe 3.0 x1 slots for additional expansion cards. For storage, it has 2 x M.2 slots (supporting PCIe 4.0 x4 mode) and 4 x SATA 6Gb/s ports. The ASUS TUF GAMING A620M-PLUS WIFI Motherboard also features 1 x Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 and USB 2.0 ports, Realtek 7.1 Surround Sound High Definition Audio CODEC, and various internal I/O connectors for fans, power, storage, and USB. It comes with ASUS TUF PROTECTION features for enhanced durability, ASUS Q-Design for easy installation and maintenance, and ASUS Thermal Solution for efficient cooling. The ASUS TUF GAMING A620M-PLUS WIFI Motherboard supports ASUS-exclusive software such as Armory Crate and AI Suite 3 for system optimization and control. It is compatible with Windows 11 and Windows 10 64-bit operating systems.
Specifications
- Chipset
- AMD A620 Chipset
- RAM type
- DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II
- Form factor
- Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm);
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- TUF GAMING A620M-PLUS WIFI
- Graphics — Graphics
- 2 x DisplayPort**; 1 x HDMI port***; ** Support max. 8K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots — PCI
- AMD Ryzen 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot; AMD A620 Chipset; 2 x PCIe 3.0 x1 slots
Show all 26 specificationsShow fewer
- Highlights — Features
- Wi-Fi 6, Bluetooth v5.3, Realtek 2.5Gb Ethernet
- Memory — Maximum Memory
- 192GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; - Power Saving; - Two-Way AI Noise Cancellation; AI Suite 3; - TurboV EVO; - DIGI+ VRM; - PC Cleaner; TUF GAMING CPU-Z; Norton 360 for Gamers (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS TUF PROTECTION; - DIGI+ VRM; - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers

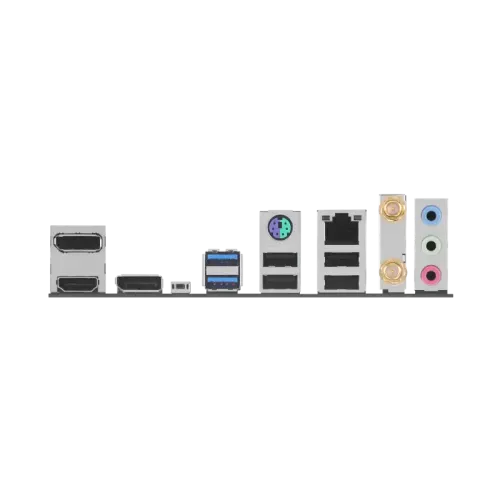

- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Highlights — Graphics Output
- 2 x DisplayPort, 1 x HDMI port
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
- Basic Information — Supported CPU
- AMD Socket AM5 for AMD Ryzen 8000/ 7000 Series Desktop Processors
- Connector & Ports — Display Port (s)
- 2 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); AMD A620 Chipset; 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 Years

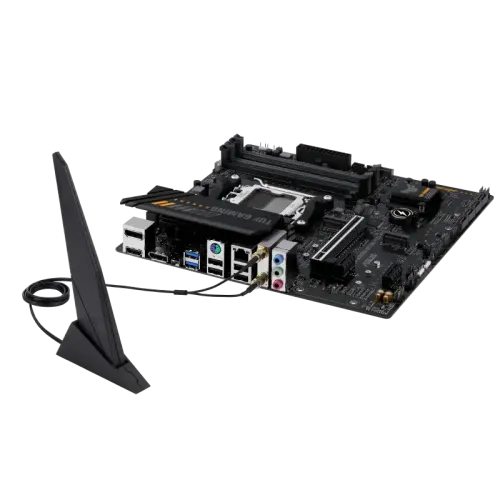

- Connector & Ports — Wireless Communication module
- Wi-Fi 6; 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3
Compare with similar products
 This itemASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard |  MSIMSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard |  AsusASUS B760M-AYW WIFI mATX Motherboard |  MSIMSI PRO B760M-A WIFI mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳19,200 | ৳19,100 | ৳19,200 | ৳19,200 |
| Availability | In stock | Out of stock | In stock | Out of stock |
| Brand | Asus | MSI | Asus | MSI |
| RAM type | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8000+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 5600+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 6800+ MHz; • 1DPC 2R Max speed up to 6400+ MHz; • 2DPC 1R Max speed up to 6000+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; ; Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Form factor | Micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm); | mATX; 243.84mmx243.84mm | mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | mATX; 243.84mmx243.84mm |
| Chipset | AMD A620 Chipset | AMD B840 | Intel B760 Chipset | INTEL B760 |
| M.2 slots | — | 2 | — | — |
