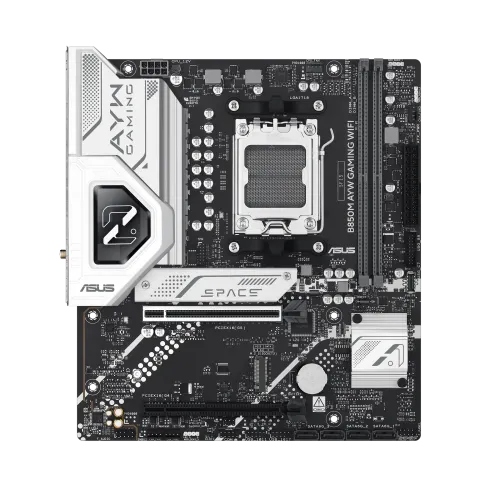

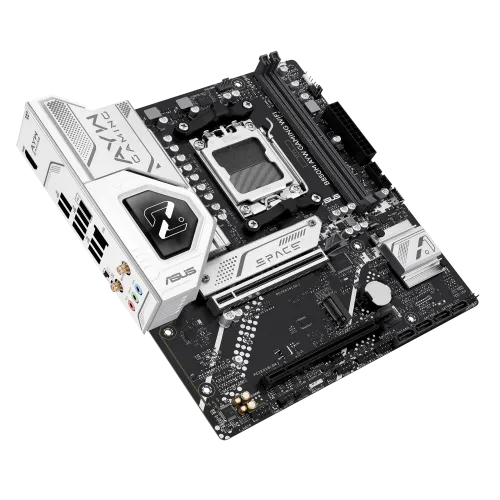

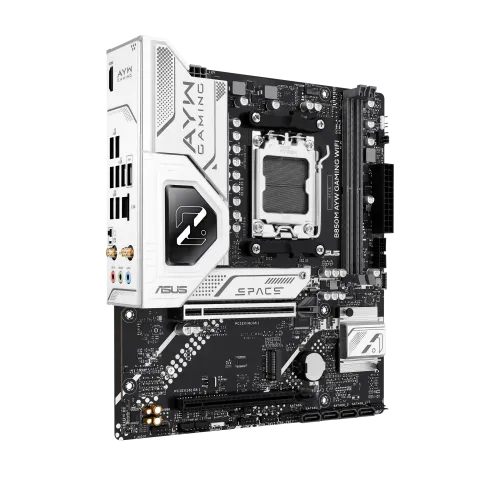

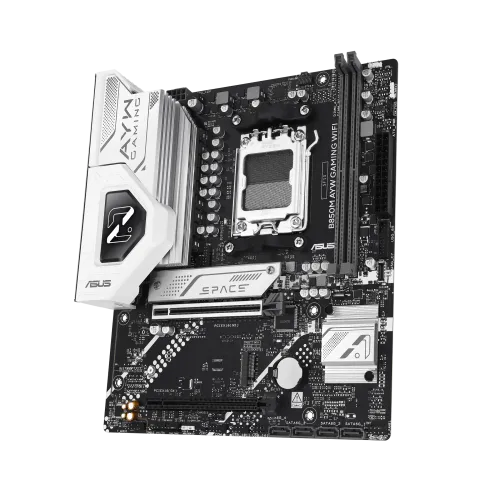

Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
Model: B850M AYW GAMING WIFIItem #: asus-b850m-ayw-gaming-wifi-motherboard
৳26,900৳27,200Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B850 Chipset
- 9000 M.2 slots
- Supports up to; 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,; 8400+MT/s(OC) with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,; ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) RAM type
- micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Overview
The Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard is a compact yet powerful solution designed for modern AMD builds, offering robust performance and top-tier features for gamers and PC enthusiasts. Built with the AMD B850 chipset, the Asus B850M AYW GAMING WIFI Motherboard supports the latest Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket. It accommodates up to 128GB of DDR5 RAM through 2 DIMM slots, with memory speeds reaching up to 8400+MT/s (OC) depending on the processor. Its micro-ATX form factor (24.4 x 22.1 cm) makes it ideal for compact gaming setups without sacrificing capability. The Asus B850M AYW GAMING WIFI micro-ATX Motherboard features built-in Wi-Fi 6, Bluetooth 5.3, and Realtek 2.5Gb Ethernet with ASUS LANGuard, ensuring fast, stable connectivity for gaming, streaming, and multitasking. Rear I/O connectivity includes 8 USB ports (2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0), while the front panel supports 7 additional USB ports, including a USB Type-C® connector with 5V/3A power delivery. For display output, the Asus B850M AYW GAMING WIFI offers an HDMI 2.1 port supporting 4K@60Hz, though capabilities depend on the installed CPU. Storage expansion is versatile, with 2 x M.2 slots and 4 x SATA 6Gb/s ports, supporting PCIe 5.0/4.0 speeds and RAID configurations (RAID 0/1/5/10) using AMD RAIDXpert2 Technology. The motherboard supports one PCIe 5.0 x16 slot for Ryzen 9000/7000 and PCIe 4.0 x16/x8/x4 slots for Ryzen 8000, enhancing GPU and expansion card options. Premium cooling is ensured with dedicated M.2 and VRM heatsinks, and ASUS Q-Design features like Q-LED, Q-DIMM, and M.2 Q-Latch enhance user-friendly installation and diagnostics. The Asus B850M AYW GAMING WIFI Motherboard also delivers immersive audio through the Realtek 7.1 Surround Sound CODEC, supporting 24-bit/192kHz playback and enhanced by premium capacitors and audio shielding. A pre-mounted I/O shield, ASUS 5X Protection III, and support for Aura Sync RGB lighting complete its high-end offering. Bundled software like Armoury Crate, Fan Xpert 2+, and a 60-day Norton 360 Deluxe trial make the Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard a feature-packed, future-ready choice for performance-driven builders.
Specifications
- Chipset
- AMD B850 Chipset
- M.2 slots
- 9000
- RAM type
- Supports up to; 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,; 8400+MT/s(OC) with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,; ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP)
- Form factor
- micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
- Memory — Type
- DDR5
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- B850M AYW GAMING WIFI
- Graphics — Graphics
- 1 x HDMI port; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; Supports 4K@60Hz as specified in HDMI 2.1.
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- AMD Ryzen 9000 & 7000 Series Desktop Processors; 1 x PCIe 5.0 x16 slot (supports x16 mode); AMD Ryzen 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode); AMD B850 Chipset; 1 x PCIe 4.0 x16 slot (support x4 mode)
- Highlights — Features
- Realtek 2.5Gb Ethernet, Wi-Fi 6, Realtek 7.1 Surround Sound
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; ASUS AI Advisor; ASUS DriverHub; TurboV Core; ASUS GlideX; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - Pre-mounted I/O shield; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - SafeSlot; Aura Sync; - Addressable RGB Gen 2 headers
- Connector & Ports — USB (s)
- Rear USB (Total 8 ports); 2 x USB 10Gbps ports (2 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A
- Highlights — Graphics Output
- 1 x HDMI port Supports 4K@60Hz
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Connector & Ports — Supported Storage
- Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*; AMD B850 Chipset; 4 x SATA 6Gb/s ports; * Specifications vary by CPU types.; AMD RAIDXpert2 Technology; Ryzen 9000 Series Processors: RAID 0/1/5/10; Ryzen 8000 Series Processors: RAID 0/1; Ryzen 7000 Series Processors: RAID 0/1/10
- Connector & Ports — Internal I/O Ports

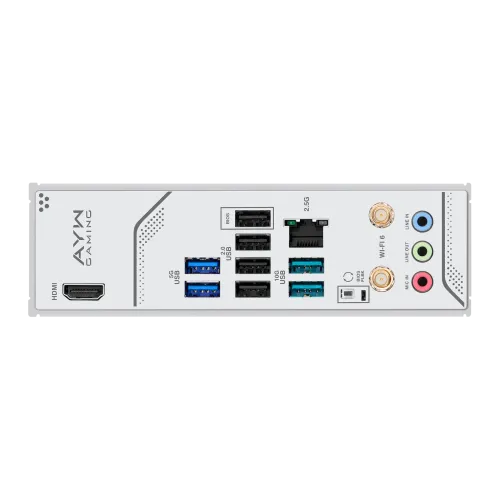

- Fan and Cooling Related; 1 x 4-pin CPU Fan header; 3 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header; Back Panel I/O Ports:; 2 x USB 10Gbps ports (2 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack™ button
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6; 1x1 Wi-Fi 6 (802.11ax); Supports 2.4/5GHz frequency band; Bluetooth® v5.3; The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1 pin)
Compare with similar products

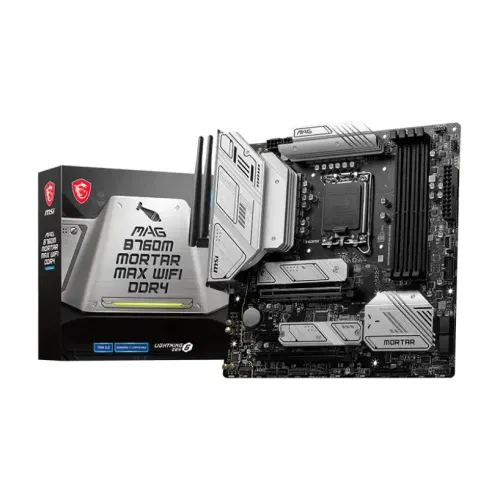

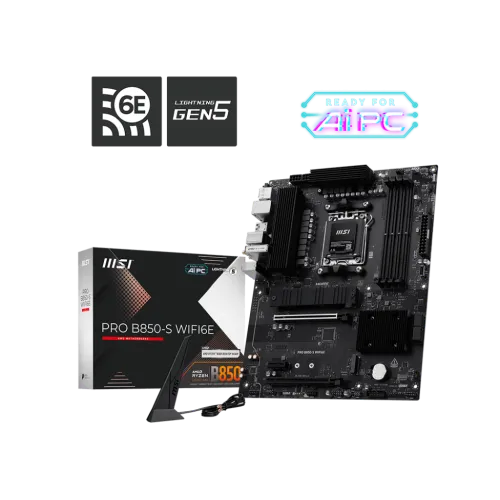

 This itemAsus B850M AYW GAMING WIFI AM5 m-ATX Motherboard |  MSIMSI PRO B850-S WIFI6E AM5 ATX Motherboard |  AsusAsus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard |  MSIMSI MAG B760M MORTAR MAX WIFI DDR4 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳26,900 | ৳26,800 | ৳26,900 | ৳26,900 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | Asus | MSI | Asus | MSI |
| M.2 slots | 9000 | 2 | 2 | — |
| RAM type | Supports up to; 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,; 8400+MT/s(OC) with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,; ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII); * Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile |
| Form factor | micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) | ATX; 243.84mmx304.8mm | micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | mATX; 243.84mmx243.84mm |
| Chipset | AMD B850 Chipset | AMD B850 | Intel B860 Chipset | INTEL B760 |
