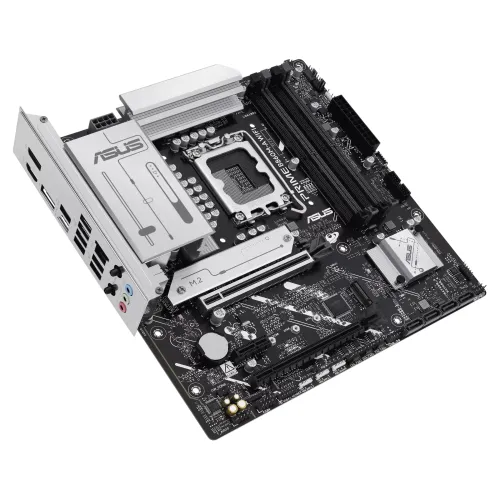

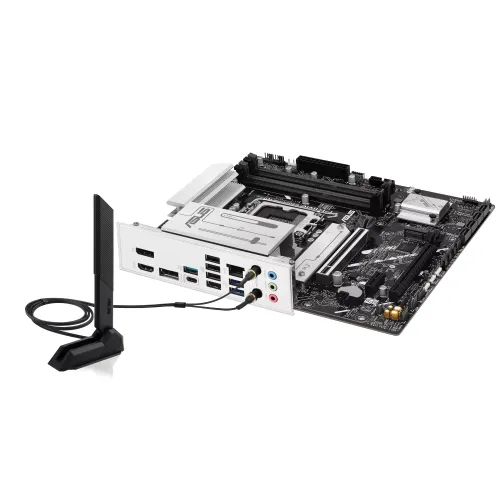

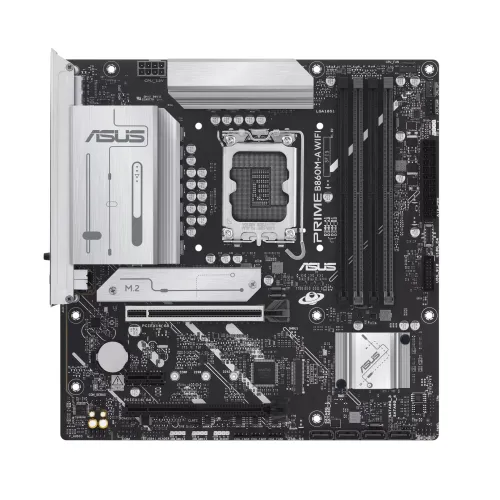

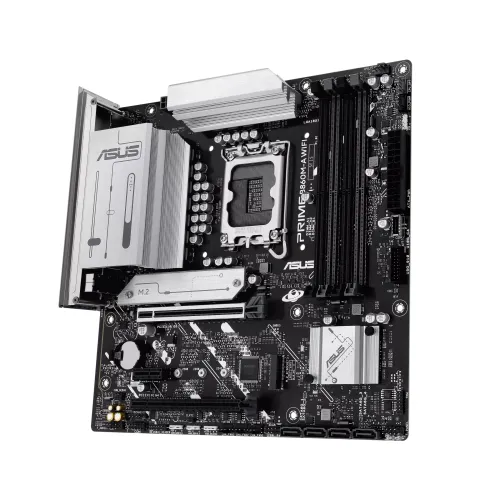

Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard
Model: PRIME B860M-A WIFI-CSMItem #: asus-prime-b860m-a-wifi-csm-motherboard
৳26,900৳29,150Save 8%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B860 Chipset
- 2 M.2 slots
- Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII); * Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. RAM type
- micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Overview
Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard delivers reliable performance for modern systems powered by Intel Core Ultra Processors Series 2 on the LGA1851 socket. The Asus Motherboard uses the Intel B860 chipset and supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0. This Asus PRIME B860M-A WIFI-CSM Motherboard features four DDR5 DIMM slots supporting up to 256GB memory with speeds reaching 8666+MT/s overclocked. It supports Non-ECC unbuffered and Clocked Unbuffered DIMMs, dual channel architecture, DIMM Fit, XMP, and ASUS Enhanced Memory Profile III. The Asus Motherboard also supports On-Die ECC function for DDR5 memory, ensuring improved stability during heavy workloads. For graphics output, it provides two DisplayPort, one HDMI, and a USB 20Gbps Type-C port supporting DisplayPort Alt Mode. It supports up to 4K at 60Hz via DisplayPort 1.4 and HDMI 2.1, and up to 4K at 120Hz through DisplayPort. Expansion includes one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot running at x4 mode, and one PCIe 4.0 x1 slot. Storage options include two M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4, plus four SATA 6Gb/s ports with RAID 0,1,5,10. The Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard integrates Realtek 2.5Gb Ethernet with ASUS LANGuard for stable networking. It features Wi-Fi 6E supporting 2.4, 5, and 6GHz bands, plus Bluetooth 5.3 for modern wireless connectivity. Rear and front USB connectivity includes USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0 ports with power delivery up to 5V/3A. Realtek 7.1 surround audio supports 24-bit 192kHz playback with shielding and premium capacitors. ASUS 5X Protection III, Q-Design, Thermal Solution, Aura Sync, and EZ DIY features enhance durability and customization. This micro-ATX board measures 9.6 inches square and supports Windows 11 and Windows 10 64-bit systems.
Specifications
- Chipset
- Intel B860 Chipset
- M.2 slots
- 2
- RAM type
- Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII); * Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- Form factor
- micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- Memory — Type
- DDR5
- Memory — Slots
- 4x DIMM
- Highlights — Model
- PRIME B860M-A WIFI-CSM
- Graphics — Graphics
- 2 x DisplayPort; 1 x HDMI port; 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output; Supports max. 4K@60Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.; Supports max. 4K@120Hz as specified in DisplayPort 1.4.; VGA resolution support depends on processors' or graphic cards' resolution.; While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Show all 29 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core Ultra Processors(series 2); 1 x PCIe 5.0 x16 slot; Intel B860 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot
- Highlights — Features
- 2x M.2, Realtek 2.5Gb LAN, Wi-Fi 6E, Bluetooth 5.3
- Memory — Maximum Memory
- Maximum Memory Capacity 256GB
- Basic Information — BIOS
- 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI port
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 2+; - Power Saving; ASUS DriverHub; ASUS GlideX; ASUS CPU-Z; Norton 360 for Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; - Pre-mounted I/O shield; Aura Sync; - Aura RGB header; - Addressable Gen2 headers
- Highlights — Supported RAM
- 4x DDR5, Max 256GB, 8666+ MT/s (OC)
- Connector & Ports — USB (s)

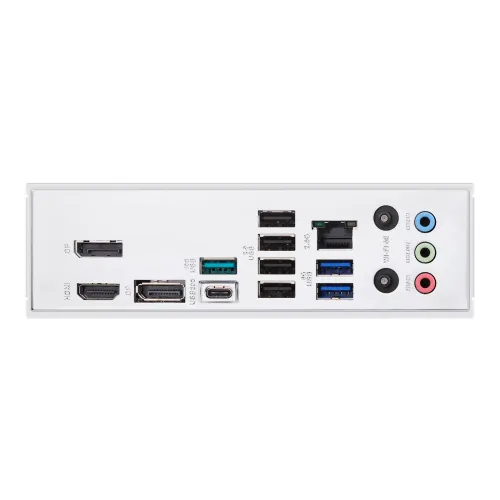

- Rear USB (Total 8 ports); 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode); 1 x USB 10Gbps port (1 x Type-A ); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 5 ports); 1 x USB 10Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; USB Type-C power delivery output: max. 5V/3A; USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
- Highlights — Graphics Output
- 2x DisplayPort, 1x HDMI, 1x USB (20Gbps)
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
- Connector & Ports — Display Port (s)
- 2 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Ultra Processors (Series 2); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel B860 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin Front System Panel header; 1 x Thunderbolt (USB4) header; Back Panel I/O Ports; 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A ); 2 x DisplayPort; 1 x HDMI port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks
- Warranty Information — Manufacturing Warranty
- 3 Year warranty
- Connector & Ports — Wireless Communication module
- Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11ax); Supports 2.4/5/6GHz frequency band; Bluetooth v5.3; WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later; The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1 pin)
Compare with similar products
 This itemAsus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard |  MSIMSI PRO B850-S WIFI6E AM5 ATX Motherboard |  AsusAsus B850M AYW GAMING WIFI AM5 m-ATX Motherboard |  MSIMSI MAG B760M MORTAR MAX WIFI DDR4 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳26,900 | ৳26,800 | ৳26,900 | ৳26,900 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | Asus | MSI | Asus | MSI |
| M.2 slots | 2 | 2 | 9000 | — |
| RAM type | Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII); * Adjustments will be made based on the specifications of mass-produced memory products available on the market.; * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | Supports up to; 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,; 8400+MT/s(OC) with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,; ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency:; • 1DPC 1R Max speed up to 5333+ MHz; • 1DPC 2R Max speed up to 4800+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; ; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel Extreme Memory Profile |
| Form factor | micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | ATX; 243.84mmx304.8mm | micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) | mATX; 243.84mmx243.84mm |
| Chipset | Intel B860 Chipset | AMD B850 | AMD B850 Chipset | INTEL B760 |
