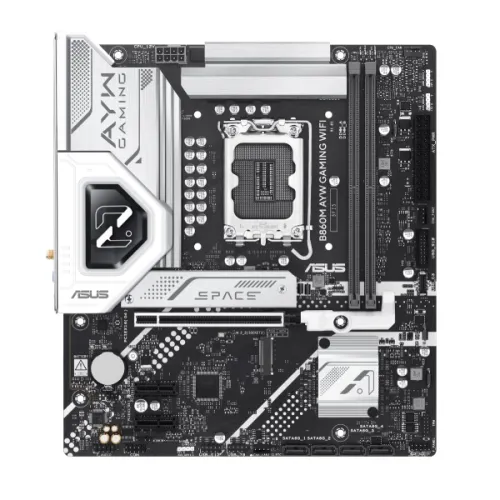

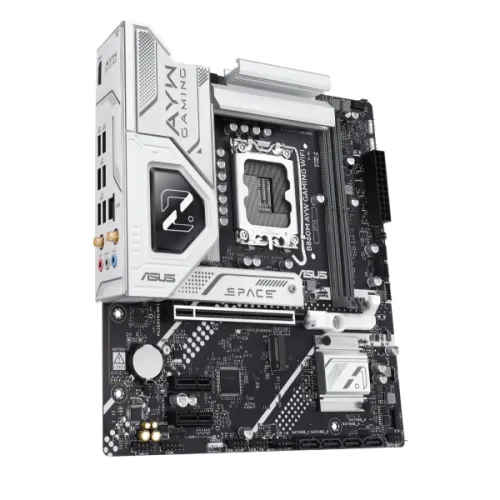

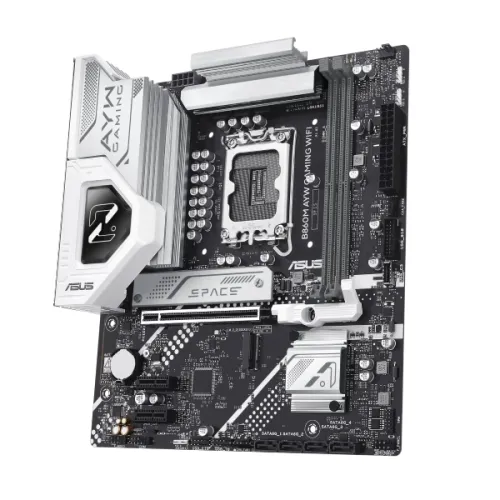

ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard
Model: B860M AYW GAMING WIFIItem #: asus-b860m-ayw-gaming-wifi-motherboard
৳23,300৳23,500Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B860 Chipset
- 2 M.2 slots
- Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) RAM type
- micro-ATX Form Factor; 9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Overview
The ASUS B860M AYW GAMING WIFI motherboard is a powerful micro-ATX solution designed for Intel Core Ultra Processors (Series 2) with the LGA1851 socket. It fully supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0. It is powered by the Intel B860 chipset and can support up to 128GB of DDR5 memory with speeds of 8800+MT/s (OC), as well as dual-channel architecture, Intel XMP, and ASUS Enhanced Memory Profile III. The ASUS B860M AYW GAMING WIFI Motherboard features an HDMI 2.1 port that supports 4K at 60Hz. The expansion possibilities include one PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots. The storage is sturdy, with two M.2 slots and four SATA 6Gb/s connectors. The M.2_1 slot supports PCIe 5.0 x4, while the M.2_2 slot supports PCIe 4.0 x4, with RAID 0/1/5/10 capability provided by Intel Rapid Storage Technology. This ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard supports Realtek 2.5Gb Ethernet with ASUS LANGuard, Wi-Fi 6 (1x1) with dual-band compatibility, and Bluetooth v5.3. Rear I/O features one USB 10Gbps Type-A, two USB 5Gbps Type-A, and three USB 2.0 ports, while front USB compatibility includes one USB 5Gbps Type-C connector, one 5Gbps header, and two USB 2.0 headers that provide four additional ports. The ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard features audio driven by the Realtek 7.1 Surround Sound codec, which supports 24-bit/192kHz playback, audio shielding, quality capacitors, and dedicated PCB layers. Internal I/O includes fan headers, power connectors, storage connectors, several USB headers, and addressable Gen2 RGB. ASUS' features include 5X Protection III, Q-Design elements for easier DIY building, thermal solutions for VRM and M.2, and Aura Sync lighting. The ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard also includes UEFI BIOS with ASUS EZ DIY features, Armoury Crate, Fan Xpert 2+, ASUS AI Advisor, and support for Windows 11 and Windows 10 64-bit. It is a small, high-performance board that is excellent for modern gaming and productivity projects.
Specifications
- Chipset
- Intel B860 Chipset
- M.2 slots
- 2
- RAM type
- Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII)
- Form factor
- micro-ATX Form Factor; 9.6 inch x 8.75 inch (24.4cm x 22.2cm)
- Memory — Type
- DDR5
- Memory — Slots
- 2x DIMM slots
- Highlights — Model
- B860M AYW GAMING WIFI
- Graphics — Graphics
- 1 x HDMITM port; Supports 4K@60Hz as specified in HDMI 2.1. ; VGA resolution support depends on processors' or graphic cards' resolution.
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core Ultra Processors (Series 2); 1 x PCIe 4.0 x16 slot; Intel B860 Chipset; 2 x PCIe 4.0 x1 slots
- Highlights — Features
- 2x M.2 Slot, 1 x 2.5Gb LAN, Wi-Fi 6, Bluetooth 5.3
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 256(128+128) Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert 2+; - Power Saving; ASUS AI Advisor; ASUS DriverHub; ASUS GlideX; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsinks design; ASUS EZ DIY; - ProCool; - Pre-mounted I/O shield; Aura Sync; - Addressable Gen2 headers
- Highlights — Supported RAM
- 2x DDR5, Max 128GB, Support up to 8800+MT/s (OC)
- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 3 x USB 2.0 ports (3 x Type-A)**; Front USB (Total 7 ports); 1 x USB 5Gbps connector (supports USB Type-C®)*; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports**; * USB Type-C® power delivery output: max. 5V/3A.; ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
- Highlights — Graphics Output
- 1 x HDMI, Supports 4K@60Hz as specified in HDMI 2.1
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Supports Intel Core Ultra Processors (Series 2), LGA1851; Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® Core™ Ultra Processors (Series 2) *; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); Intel® B860 Chipset; M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports

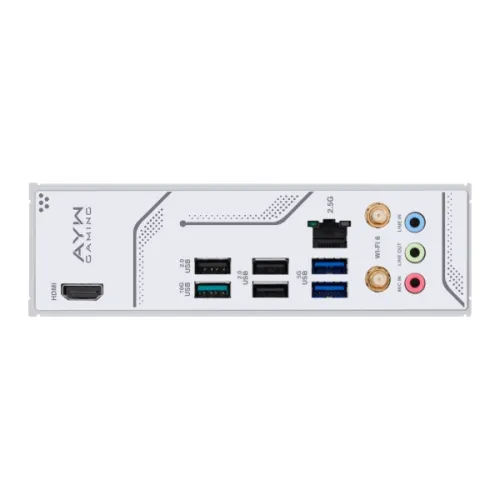

- Back Panel I/O Ports; 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 3 x USB 2.0 ports (3 x Type-A); 1 x HDMITM port; 1 x Wi-Fi module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; Internal I/O Connectors; Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin Front Panel System header
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6; 1x1 Wi-Fi 6 (802.11ax); Supports 2.4/5GHz frequency band; Bluetooth v5.3
Compare with similar products

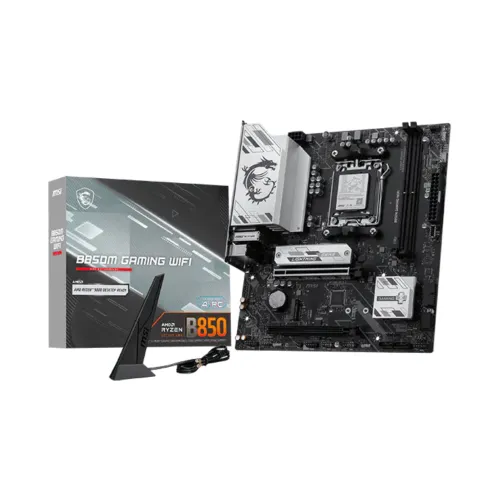

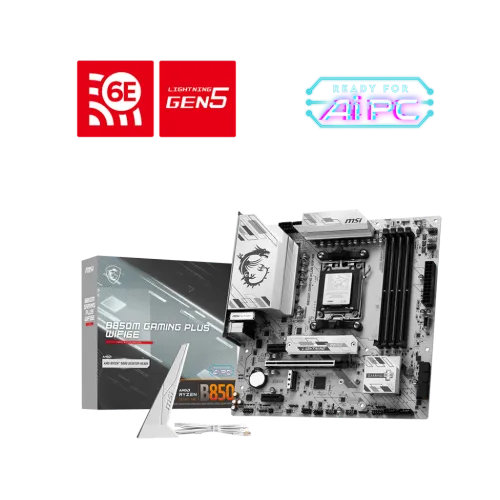

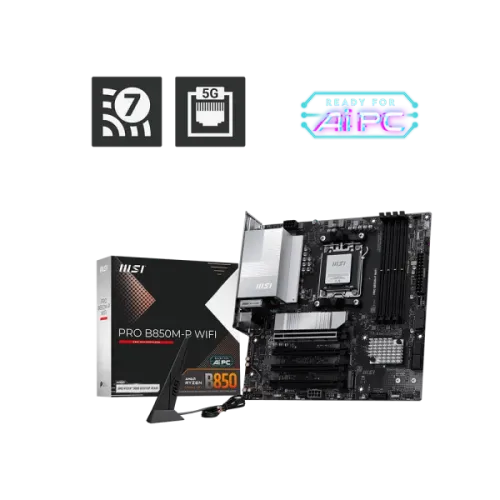

 This itemASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard |  MSIMSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard |  MSIMSI PRO B850M-P WIFI AM5 mATX Motherboard |  MSIMSI B850M GAMING WIFI7 AM5 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳23,300 | ৳23,100 | ৳23,200 | ৳23,200 |
| Availability | In stock | Out of stock | Out of stock | Out of stock |
| Brand | Asus | MSI | MSI | MSI |
| M.2 slots | 2 | 2 | 3 | 2 |
| RAM type | Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III(AEMPIII) | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only | Memory Support 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only; ; CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; The DIMM slots on this motherboard only have single-sided latches.; Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only |
| Form factor | micro-ATX Form Factor; 9.6 inch x 8.75 inch (24.4cm x 22.2cm) | mATX; 243.84mmx243.84mm | mATX; 243.84mmx243.84mm | mATX; 226mmx243.84mm |
| Chipset | Intel B860 Chipset | AMD B850 | AMD B850 | AMD B850 |
