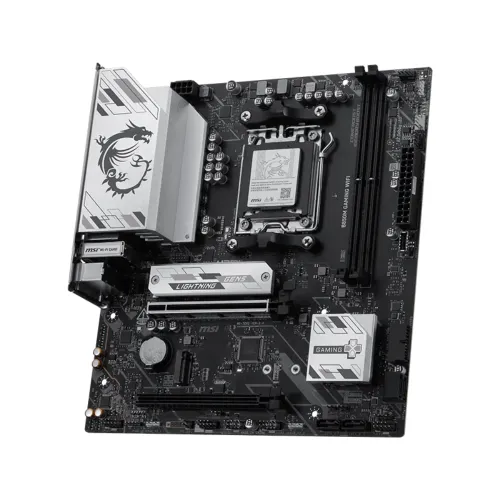

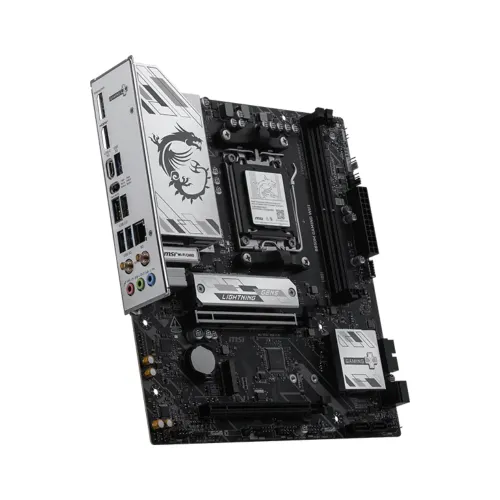

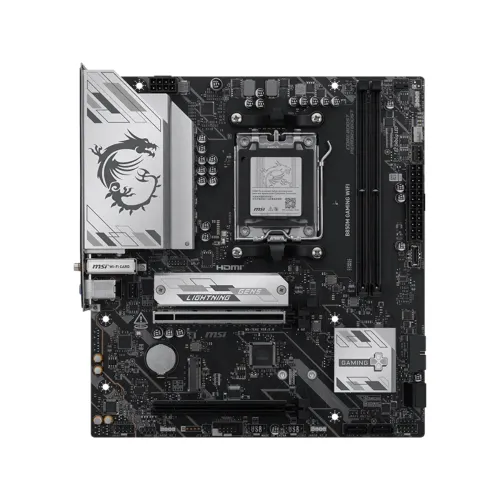

MSI B850M GAMING WIFI7 AM5 mATX Motherboard

Name: MSI B850M GAMING WIFI7 AM5 mATX Motherboard
Brand: MSI
Price: 23200 BDT
Availability: OutOfStock

Model: B850M GAMING WIFIItem #: msi-b850m-gaming-wifi-motherboard

৳23,200

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B850 Chipset
2 M.2 slots
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only RAM type
mATX; 226mmx243.84mm Form factor

Overview

The MSI B850M GAMING WIFI AM5 mATX Motherboard is built for AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. This Motherboard runs on the AMD B850 chipset and supports two DDR5 UDIMM slots with a maximum capacity of 128GB. DDR5 memory speeds reach up to 8200 MT/s via overclocking, with JEDEC speeds supported from 4800 to 5600 MT/s for broad compatibility. AMD EXPO and dual-channel memory support maximize bandwidth and performance across all supported Ryzen processor generations.

The MSI B850M GAMING WIFI AM5 Motherboard features a primary PCIe 5.0 x16 slot delivering up to 128GB/s bandwidth for next-generation GPU performance. A secondary PCIe 4.0 x4 slot from the chipset provides additional expansion capability for other peripherals and cards. Two M.2 slots include M.2_1 supporting PCIe 5.0 x4 from the CPU and M.2_2 supporting PCIe 4.0 x4 for ultra-fast NVMe storage. Both M.2 slots benefit from M.2 Shield Frozr thermal protection that prevents throttling and keeps SSDs running at peak speeds.

The MSI B850M GAMING WIFI mATX Motherboard has four SATA 6G ports support RAID 0, 1, and 10 configurations for flexible traditional storage setups. The MSI WIFI7 Motherboard includes a pre-installed Wi-Fi 7 module supporting 2.4GHz, 5GHz, and 6GHz bands at up to 2.9Gbps with Bluetooth 5.4, MLO, and 4KQAM. A Realtek 8126 5G LAN controller delivers premium wired network performance for low-latency gaming and streaming.

Onboard graphics output includes HDMI 2.1 and DisplayPort 1.4, both supporting up to 4K 60Hz resolution. This MSI B850M GAMING WIFI AMD Motherboard has realtek ALC897 powers 7.1-channel HD audio for immersive studio-grade sound quality. The MSI AMD AM5 Motherboard features four EZ Debug LEDs and one EZ Memory Detection LED for simplified hardware troubleshooting. An extended PWM heatsink and enhanced circuit design keep even high-end processors running at full speed consistently. The MSI mATX Motherboard measures 226×243.84mm and fully supports Windows 11 64-bit operating systems.

Specifications

Chipset: AMD B850
M.2 slots: 2
RAM type: Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 8000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only
Form factor: mATX; 226mmx243.84mm
Memory — Type: DDR5
Memory — Slots: 2x UDIMM
Highlights — Model: B850M GAMING WIFI
Graphics — Graphics: 1x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Show all 29 specifications

Expansion Slots — PCI: 2x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E1 slot; • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors); • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors); • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Highlights — Features: Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4
Memory — Maximum Memory: 128GB
Basic Information — BIOS: Flash BIOS Button
Connector & Ports — HDMI: 1x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz
Connector & Ports — RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Basic Information — Audio: Realtek ALC897; 7.1-Channel High Definition Audio
Connector & Ports — Audio: 1x Front Audio (JAUD)
Others — Bundled Software: Support for Windows 11 64-bit
Others — Special Features: 4x EZ Debug LED; 1x EZ Memory Detection LED
Highlights — Supported RAM: 2x DDR5, Up to 8200 (OC) MT/s, Max 128GB

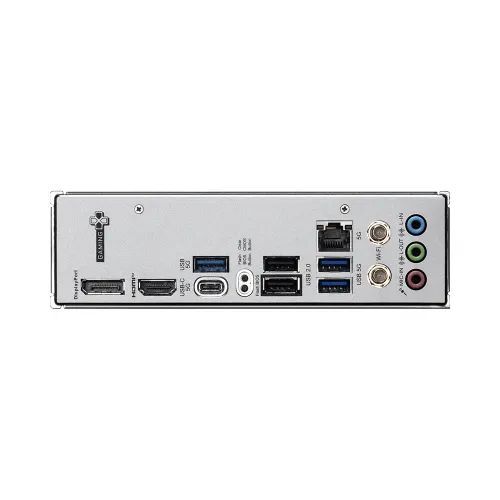

Connector & Ports — USB (s): 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 3x USB 5Gbps Type A (Rear); 1x USB 5Gbps Type C (Rear); 2x USB 5Gbps Type A (Front); 1x USB 10Gbps Type C (Front)
Highlights — Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
Connector & Ports — LAN Port (s): Realtek 8126 5G LAN
Basic Information — Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors; Socket AM5
Connector & Ports — Display Port (s): 1x DisplayPort; Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports — Supported Storage: 2x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; M2_1 slot; • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors); • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors); M2_2 slot; • Supports up to PCIe 4.0 x4; • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Connector & Ports — Internal I/O Ports: 1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Com Port (JCOM); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Warranty Information — Manufacturing Warranty: 3 Years Warranty
Connector & Ports — Wireless Communication module: Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth 5.4, MLO, 4KQAM
Connector & Ports — TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0);
