Asus EX-H610M-V3 D4 mATX Motherboard
Model: EX-H610M-V3 D4Item #: asus-ex-h610m-v3-d4-motherboard
৳9,800
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Chipset
- 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) RAM type
- mATX Form Factor; 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Overview

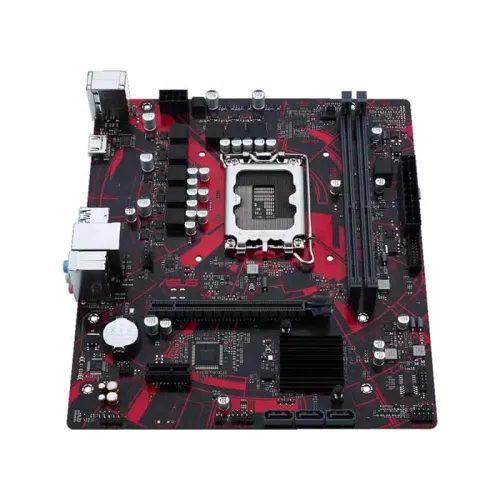

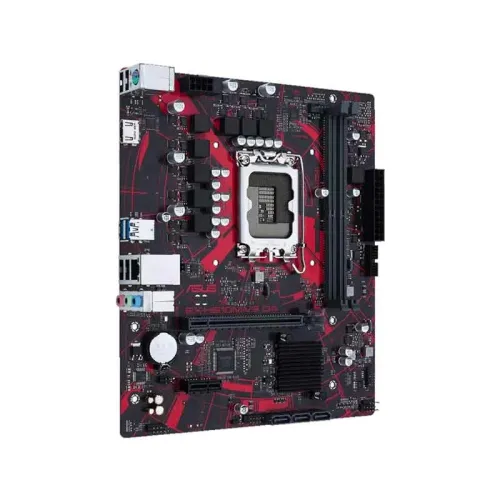

The Asus EX-H610M-V3 D4 is a micro ATX motherboard with an LGA 1700 socket built for 12th, 13th, and 14th-generation Intel CPUs. PCIe 4.0, HDMI, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and Realtek 1 Gb Ethernet are among the features. The motherboard has a bright anti-moisture layer that adds endurance and protection against moisture. It also has USBGuard, which protects against power spikes. This motherboard is a superb choice for iCafés, custom-built gaming systems, and quality-conscious enterprises. Its features, such as LANGuard, SafeSlot Core+, and 5X Protection III, ensure continuous longevity. The stainless-steel rear I/O offers further corrosion resistance. Beyond VR-ready and Epic audio-certified, the Asus EX-H610M-V3 D4 ensures an immersive gaming experience. In addition, the motherboard has been evaluated for compatibility with a broad range of peripherals, CPUs, memory modules, graphics cards, and top games. The ASUS iCafé LAB has verified the motherboard, confirming that it can handle reboots and diskless systems. The Asus EX-H610M-V3 D4 is a non-stop competitor for anybody searching for a trustworthy micro ATX motherboard, thanks to its unrivaled durability, compatibility, and gaming capabilities.
Buy Asus EX-H610M-V3 D4 mATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel H610 Chipset
- RAM type
- 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP)
- Form factor
- mATX Form Factor; 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
- Memory — Type
- DDR4
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- EX-H610M-V3 D4
- Graphics — Graphics
- 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
- Expansion Slots — PCI
- Intel 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel H610 Chipset; 1 x PCIe 3.0 x1 slot
Show all 21 specificationsShow fewer
- Memory — Maximum Memory
- Max. 64GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI port
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; ; Audio Features; - Audio Shielding; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-Slot; ASUS Thermal Solution; - Aluminum heatsink design; Non-stop Action; - Lightning Boot; Non-stop Challenger; - ASUS iCafe labs certified; Non-stop Durability; - Anti-moisture coating; - USBGuard
- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); ; Front USB (Total 4 ports); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- Highlights — Graphics Output
- 1 x HDMI
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet port
- Basic Information — Supported CPU
- Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Supported Storage
- Total supports 3 x SATA 6Gb/s ports; Intel H610 Chipset; 3 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports

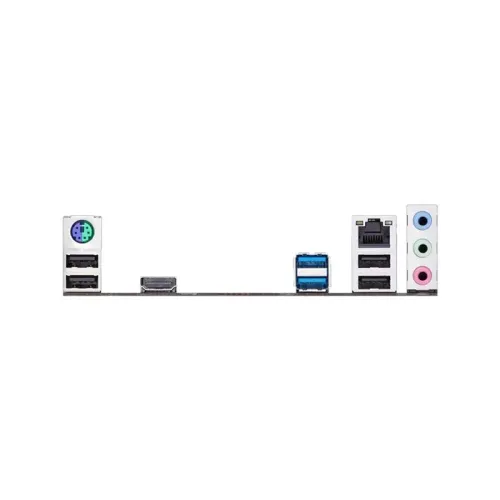

- Internal I/O Connectors; Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 3 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP); 1 x Speaker header; 1 x 10-1 pin System Panel header; ; Back Panel I/O Ports; 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMI port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
- Warranty Information — Manufacturing Warranty
- 3 years warranty
