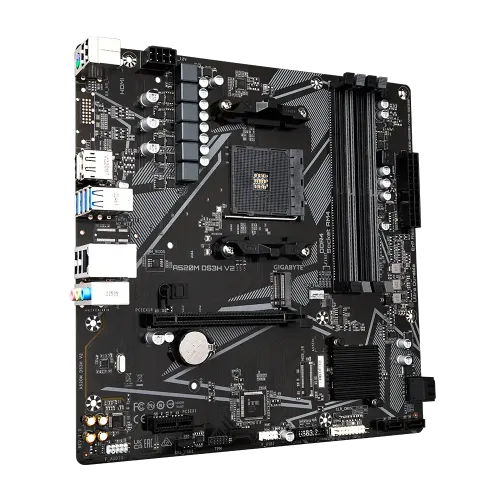

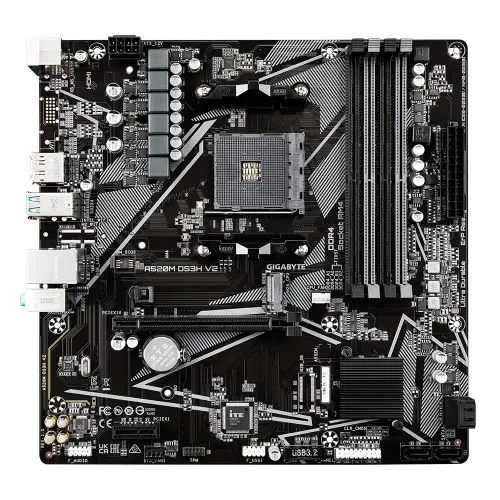

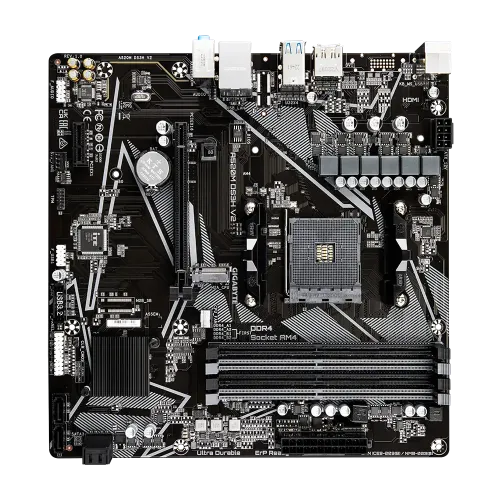

Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard

Name: Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
Brand: GIGABYTE
Price: 9800 BDT
Availability: InStock

Model: A520M DS3H V2Item #: gigabyte-a520m-ds3h-v2-motherboard

৳9,800~~৳10,300~~Save 5%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD A520 Chipset
1 M.2 slots
DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

GIGABYTE A520M DS3H Micro-ATX AMD AM4 Motherboard (China Version)

The Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard is a strong and feature-rich choice for individuals wishing to construct a powerful, low-cost PC. This Gigabyte A520M DS3H V2 DDR4 AMD AM4 Motherboard is compatible with a broad selection of CPUs, including the AMD Ryzen 5000 Series, Ryzen 4000 G-Series, and Ryzen 3000 Series, making it a good choice for those seeking versatility and compatibility. The Gigabyte A520M DS3H V2 AMD AM4 Motherboard supports up to 128 GB of DDR4 RAM and has outstanding overclocking capabilities, reaching speeds of up to 4733 MHz (OC) for high-performance activities. The Gigabyte A520M DS3H V2 Motherboard, with integrated graphics support via one DisplayPort and one HDMI connector, provides outstanding video output, supporting resolutions of up to 5120x2880 at 60Hz and 4096x2160 at 60Hz. This makes it excellent for multi-display setups, such as gaming, streaming, and content production. The Gigabyte A520M DS3H V2 DDR4 AMD Motherboard also has Realtek Audio CODEC for high-quality sound output, which supports 2/4/5.1/7.1-channel audio for a full audio experience. In terms of storage and expansion, the Gigabyte A520M DS3H V2 Motherboard offers an M.2 connector for PCIe 3.0 x4/x2 SSDs and four SATA 6Gb/s connectors for RAID configurations, ensuring fast data transfer speeds and reliability. With PCIe 3.0 x16 and x1 slots, the Gigabyte Motherboard offers ample room for expansion, making it a solid choice for users who want flexibility in their build. The Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard also has Smart Fan 5 technology, which comprises numerous temperature sensors and hybrid fan headers with FAN STOP to ensure effective cooling under heavy workloads. The Gigabyte A520M DS3H V2 DDR4 AMD AM4 Motherboard has an Ultra Durable design that includes anti-sulfur resistors and high-quality capacitors. This Gigabyte A520M DS3H V2 Motherboard is completely compatible with Windows 10 and 11 64-bit operating systems, ensuring a stable and dependable foundation for all of your computing requirements.

Specifications

Chipset: AMD A520
M.2 slots: 1
RAM type: DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: Dual-Channel Memory Architecture
Memory — Slots: 4 x DDR4 DIMM
Highlights — Model: A520M DS3H V2
Graphics — Graphics: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; Supports DisplayPort 1.4 version, HDCP 2.3, and HDR.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Supports HDMI 2.1 version, HDCP 2.3, and HDR.

Show all 28 specifications

Expansion Slots — PCI: CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16; Chipset: 1 x PCI Express x1 slots, Supporting PCIe 3.0 x1 mode
Highlights — Features: Realtek GbE LAN chip, Ultra Durable PCIe 3.0 x16 Slot
Memory — Maximum Memory: 128 GB (32 GB single DIMM capacity)
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: Realtek ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for APP Center; Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; @BIOS; EasyTune; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install; Support for Windows 11 64-bit; Support for Windows 10 64-bit
Highlights — Supported RAM: 4x DDR4, up to 128GB
Connector & Ports — USB (s): CPU:; 4 x USB 3.2 Gen 1 ports on the back panel; Chipset:; 2 x USB 3.2 Gen 1 ports available through the internal USB header; 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Graphics — Max Shared Memory: Maximum shared memory of 16 GB
Highlights — Graphics Output: 1x Display Port, 1x HDMI
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Mbps)
Basic Information — Supported CPU: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors;
Connector & Ports — Display Port (s): 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
Connector & Ports — Supported Storage: 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:; Supporting SATA and PCIe 3.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors, integrated in the Chipset:; Supporting for RAID 0, RAID 1, and RAID 10

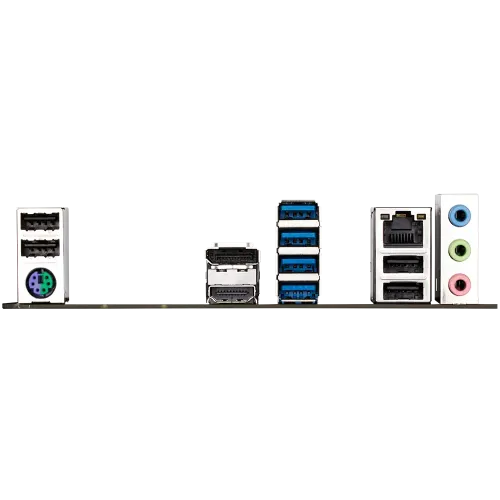

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper; Back Panel Connectors:; 1 x PS/2 keyboard/mouse port; 1 x DisplayPort; 1 x HDMI port; 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only);

Compare with similar products

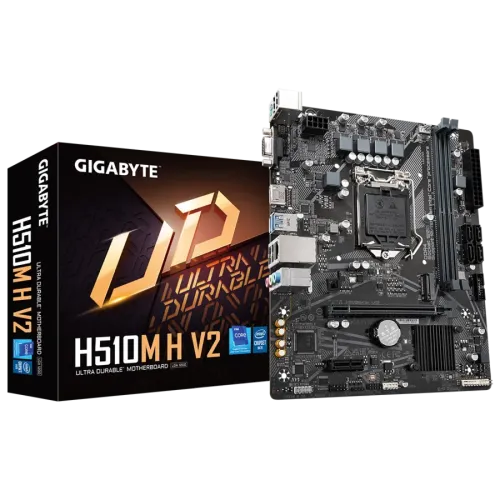

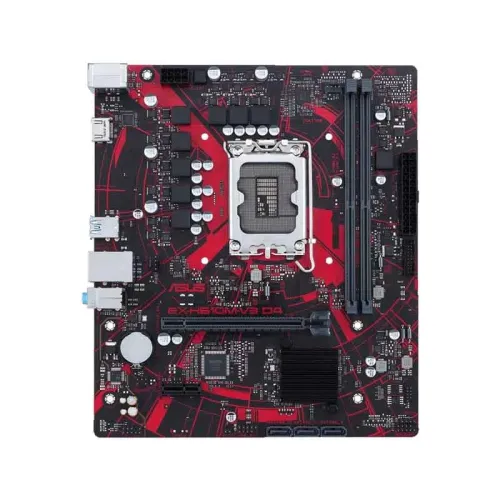

	This itemGigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard	MSIMSI PRO H610M-S DDR4 m-ATX Motherboard	AsusAsus EX-H610M-V3 D4 mATX Motherboard	GIGABYTEGIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard
