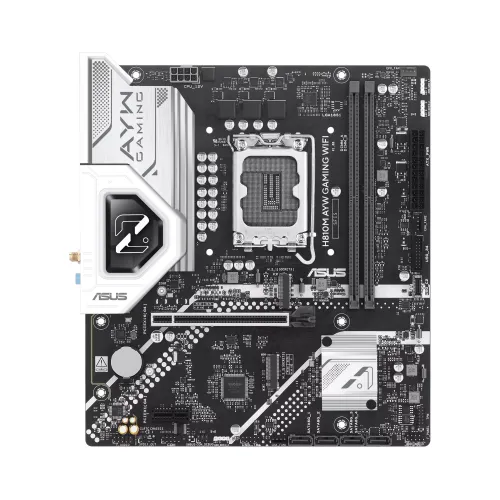

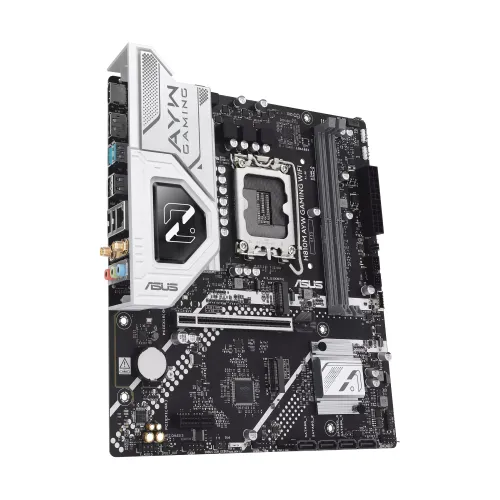

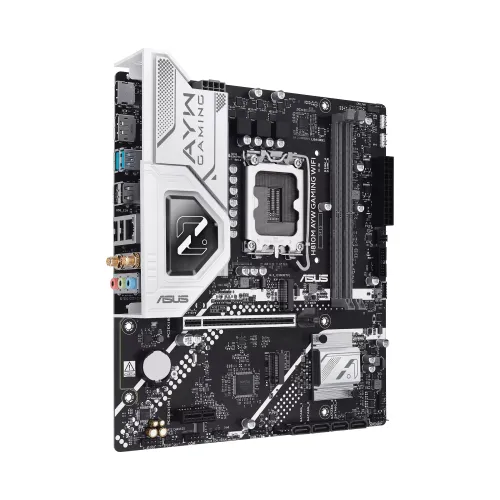

Asus H810M AYW GAMING WIFI LGA 1851 mATX Motherboard

Name: Asus H810M AYW GAMING WIFI LGA 1851 mATX Motherboard
Brand: Asus
Price: 16700 BDT
Availability: InStock

Model: H810M AYW GAMING WIFIItem #: asus-h810m-ayw-gaming-wifi-motherboard

৳16,700~~৳17,000~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel H810 Chipset
2 M.2 slots
Supports up to; 7200MT/s with Intel® Core™ Ultra 200S Plus Processors; 6400MT/s with Intel® Core™ Ultra 200S Processors; Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit RAM type
micro-ATX Form Factor; 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

Overview

The Asus H810M AYW GAMING WIFI LGA 1851 mATX Motherboard is a compact yet powerful solution for gamers and everyday PC users. Built on the Intel H810 chipset, this Asus Intel Motherboard supports Intel Core Ultra Series 2 processors, DDR5 memory, and PCIe 4.0 expansion. With integrated Wi‑Fi 6 and Bluetooth 5.3, it delivers modern connectivity in a reliable micro‑ATX design.

Performance and Compatibility

The Asus H810M AYW GAMING WIFI Motherboard features the LGA 1851 socket, ensuring compatibility with Intel Core Ultra Series 2 CPUs. With dual DDR5 DIMM slots, it supports up to 128GB of high‑speed memory, optimized with ASUS AEMP II and DIMM Fit technology. This Asus Motherboard for Core Ultra processor provides smooth multitasking and efficient performance for gaming and productivity builds.

Expansion and Storage Options

Designed for flexibility, the Asus H810M AYW Motherboard includes a PCIe 4.0 x16 SafeSlot Core+ for graphics cards and a PCIe 4.0 x1 slot for expansion. Storage is future‑ready with dual M.2 slots (PCIe 4.0 x4 and PCIe 4.0 x2) alongside four SATA 6Gb/s ports, ensuring fast NVMe SSD performance and traditional HDD support.

Connectivity and I/O Features

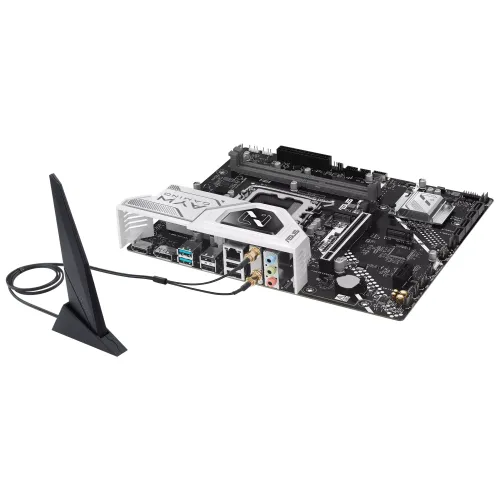

The Asus H810M AYW GAMING WIFI LGA 1851 Motherboard offers integrated Wi‑Fi 6 and Bluetooth 5.3 for seamless wireless connections, plus Intel 1Gb Ethernet for stable wired networking. The rear I/O panel includes HDMI 2.1 and DisplayPort 1.4 for high‑resolution displays, multiple USB 10Gbps and USB Type‑C ports, and audio powered by Realtek codec for clear sound. This Asus WiFi Motherboard ensures modern connectivity for gaming and everyday use.

Cooling and Design

Equipped with a 6+1+1+1 phase digital VRM design, the Asus H810M AYW GAMING WIFI Motherboard delivers stable power to critical components. Onboard heatsinks, thermal pads, and ASUS Fan Xpert 2+ software provide efficient cooling, while the compact micro‑ATX form factor makes it suitable for a wide range of cases. Aura Sync RGB headers allow users to customize lighting for a personalized build.

Specifications

Chipset: Intel H810 Chipset
M.2 slots: 2
RAM type: Supports up to; 7200MT/s with Intel® Core™ Ultra 200S Plus Processors; 6400MT/s with Intel® Core™ Ultra 200S Processors; Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit
Form factor: micro-ATX Form Factor; 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
Memory — Type: DDR5
Memory — Slots: 2 x DIMM
Highlights — Model: H810M AYW GAMING WIFI
Graphics — Graphics: 1 x DisplayPort**; 1 x HDMI™ port***; * Graphics specifications may vary between CPU types

Show all 27 specifications

Expansion Slots — PCI: 1 x PCIe 4.0 x16 slot; Intel® H810 Chipset; 1 x PCIe 4.0 x1 slot
Highlights — Features: 2x M.2, Realtek 1Gb LAN, Wi-Fi 6, Bluetooth 5.3
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI 2.1
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Connector & Ports — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert 2+; - Power Saving; ASUS DriverHub; ASUS GlideX; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core+; - Stainless-steel back I/O; ASUS Q-Design; - Q-DIMM; - Q-Dashboard; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; Aura Sync; - Addressable Gen 2 headers
Highlights — Supported RAM: 2x DDR5, Max 128GB, 8800+ MT/s (OC)
Connector & Ports — USB (s): Rear USB (Total 6 ports); 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 5 ports); 1 x USB 5Gbps connector (supports USB Type-C®)*; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; * USB Type-C® power delivery output: max. 5V/3A; ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Highlights — Graphics Output: 1x DisplayPort, 1x HDMI
Connector & Ports — LAN Port (s): 1 x Intel 1Gb Ethernet port*; ASUS LANGuard
Basic Information — Supported CPU: Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Connector & Ports — Display Port (s): 1 x DisplayPort 1.4
Connector & Ports — Supported Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® H810 Chipset; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V CPU Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin Front Panel System header; ; Back Panel I/O Ports; 2 x USB 10Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi module; 1 x Intel® 1Gb Ethernet port; 3 x Audio jacks
Warranty Information — Manufacturing Warranty: 3 Year warranty
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1 pin)

Compare with similar products

	This itemAsus H810M AYW GAMING WIFI LGA 1851 mATX Motherboard	GIGABYTEGIGABYTE B550M GAMING X WIFI6 AM4 mATX Motherboard	GIGABYTEGIGABYTE B760M DS3H DDR4 mATX Motherboard	MSIMSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
Price	৳16,700	৳16,600	৳16,600	৳16,700
Availability	In stock	Out of stock	Out of stock	In stock
Brand	Asus	GIGABYTE	GIGABYTE	MSI
M.2 slots	2	1	1	1
RAM type	Supports up to; 7200MT/s with Intel® Core™ Ultra 200S Plus Processors; 6400MT/s with Intel® Core™ Ultra 200S Processors; Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit	Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	—
Form factor	micro-ATX Form Factor; 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro-ATX
Chipset	Intel H810 Chipset	AMD B550	Intel B760 Express Chipset	Intel H810
