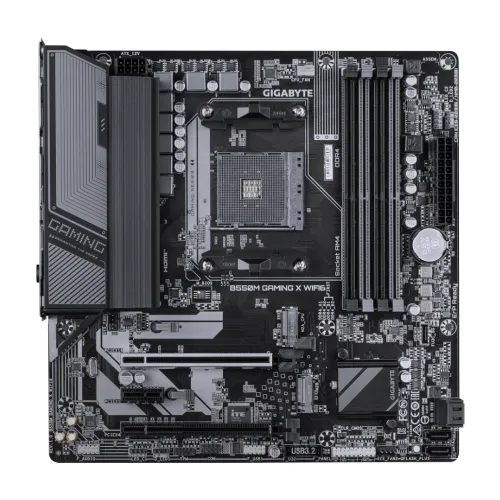

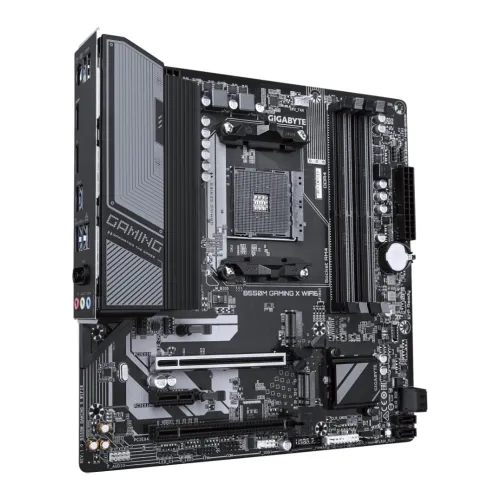

GIGABYTE B550M GAMING X WIFI6 AM4 mATX Motherboard
Model: B550M GAMING X WIFI6Item #: gigabyte-b550m-gaming-x-wifi6-motherboard
৳16,600
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B550 Chipset
- 1 M.2 slots
- Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
- Micro ATX Form Factor; 24.4cm x 24.4cm
Overview
The GIGABYTE B550M GAMING X WIFI6 AM4 mATX Motherboard is a powerful and reliable choice for gamers and creators, delivering next‑generation performance with support for AMD Ryzen processors on the AM4 socket, DDR4 high‑speed memory, and PCIe 4.0 for ultra‑fast graphics cards and NVMe SSDs. Built with Gigabyte Ultra Durable components, advanced thermal design, and Smart Fan 5 technology, it ensures stable operation under heavy workloads, while integrated WiFi 6 and Gigabit LAN provide seamless connectivity for online gaming and productivity. With dual M.2 slots featuring thermal guards, multiple USB 3.2 Gen1 and Gen2 ports, HDMI and DisplayPort outputs, and immersive audio powered by Realtek codec, this compact board balances affordability with premium features. The Gigabyte 550 motherboard design makes it future‑ready, while RGB Fusion lighting and Q‑Flash Plus BIOS update support add customization and ease of use. Compact yet versatile, the Gigabyte B550M Motherboard is ideal for building efficient rigs that demand speed, stability, and connectivity, making it a standout Gigabyte WiFi Motherboard solution for modern PC builds.
Specifications
- Chipset
- AMD B550
- M.2 slots
- 1
- RAM type
- Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
- Form factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
- Memory — Type
- DDR4
- Memory — Slots
- 4 x DIMM slots
- Highlights — Model
- B550M GAMING X WIFI6
- Graphics — Graphics
- Integrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.; ; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; ; Chipset:; - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4; - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
- Highlights — Features
- 2x M.2 slots, Realtek GbE LAN
- Memory — Maximum Memory
- Up to 128GB (32 GB single DIMM capacity)
- Basic Information — BIOS
- 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Connector & Ports — RAID
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Connector & Ports — Audio
- Realtek® ALC1220 CODEC; * The back panel line out jack supports DSD audio.; ; High Definition Audio; 2/4/5.1/7.1-channel
- Others — Bundled Software
- Norton® Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for APP Center; @BIOS; EasyTune; Fast Boot; Game Boost; ON/OFF Charge; RGB Fusion; Smart Backup; System Information Viewer; Support for Q-Flash Plus; Support for Q-Flash; Support for Xpress Install
- Highlights — Supported RAM
- 4x DDR4, Max 128GB, Supports Up to 3200
- Connector & Ports — USB (s)
- CPU:; - 4 x USB 3.2 Gen 1 ports on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- Graphics — Max Shared Memory
- 16 GB
- Highlights — Graphics Output
- 1x DisplayPort, 1x HDMI port
- Connector & Ports — LAN Port (s)
- Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- Basic Information — Supported CPU
- AMD Socket AM4, support for:; AMD Ryzen™ 5000 G-Series Processors/; AMD Ryzen™ 5000 Series Processors/; AMD Ryzen™ 4000 G-Series Processors/; AMD Ryzen™ 3000 G-Series Processors/; AMD Ryzen™ 3000 Series Processors
- Connector & Ports — Display Port (s)
- - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
- Connector & Ports — Supported Storage
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:; - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs; - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs; 4 x SATA 6Gb/s connectors;
- Connector & Ports — Internal I/O Ports
- Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x Q-Flash Plus button; Back Panel Connectors; 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x HDMI port (Note); 1 x DisplayPort (Note); 4 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 2 x antenna connectors; 3 x audio jacks
- Warranty Information — Manufacturing Warranty
- 03 Years
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Compare with similar products
 This itemGIGABYTE B550M GAMING X WIFI6 AM4 mATX Motherboard |  GIGABYTEGIGABYTE B760M DS3H mATX Motherboard |  GIGABYTEGIGABYTE B760M DS3H DDR4 mATX Motherboard |  MSIMSI PRO H810M-B DDR5 LGA1851 mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳16,600 | ৳16,500 | ৳16,600 | ৳16,700 |
| Availability | Out of stock | Out of stock | Out of stock | In stock |
| Brand | GIGABYTE | GIGABYTE | GIGABYTE | MSI |
| M.2 slots | 1 | — | 1 | 1 |
| RAM type | Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | — |
| Form factor | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro-ATX |
| Chipset | AMD B550 | Intel B760 Express Chipset | Intel B760 Express Chipset | Intel H810 |
