GIGABYTE B760M DS3H mATX Motherboard

Name: GIGABYTE B760M DS3H mATX Motherboard
Brand: GIGABYTE
Price: 16500 BDT
Availability: OutOfStock

Model: B760M DS3HItem #: gigabyte-b760m-ds3h-motherboard

৳16,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B760M DS3H is an mATX motherboard designed for Intel Socket LGA 1700, providing support for both 14th 13th and 12th Gen Series Processors. Its unparalleled performance is ensured by a Hybrid 6+2+1 Phases Digital VRM Solution, while the Dual Channel DDR5 with 4 DIMMs offers XMP Memory Module support for enhanced memory capabilities. The 14th Gen Motherboard also features next-generation storage with 2 PCIe 4.0 x4 M.2 Connectors, equipped with an M.2 Thermal Guard to maintain optimal M.2 SSD performance. GIGABYTE B760M DS3H offers convenient features like an EZ-Latch PCIe 4.0 x16 Slot with Quick Release Design, Fast 2.5GbE LAN for reliable network connectivity, and extended connectivity options with Rear USB-C 10Gb/s, DP, and HDMI ports. The Smart Fan 6 technology ensures efficient cooling with multiple temperature sensors and hybrid fan headers with FAN STOP, while the Q-Flash Plus feature allows for BIOS updates without the need to install the CPU, memory, and graphics card.

Specifications

Chipset: Intel B760 Express Chipset
RAM type: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4
Highlights — Model: B760M DS3H
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version.; Support for up to quad-display at the same time
Expansion Slots — PCI: CPU:; 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset:; 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Show all 28 specifications

Highlights — Features: Realtek 2.5GbE LAN chip
Memory — Maximum Memory: up to 192 GB (48 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus
Highlights — Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
Connector & Ports — USB (s): Chipset:; 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support; 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); 2 x USB 2.0/1.1 ports on the back panel; Chipset+2 USB 2.0 Hubs:; 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x HDMI, 2x DisplayPort, 1 x D-Sub
Connector & Ports — D-Sub (s): 1x D-Sub
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps);
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with the CPU
Connector & Ports — Display Port (s): 2x DisplayPort
Connector & Ports — Supported Storage: CPU:; 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x parallel port header; 1 x S/PDIF Out header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Compare with similar products

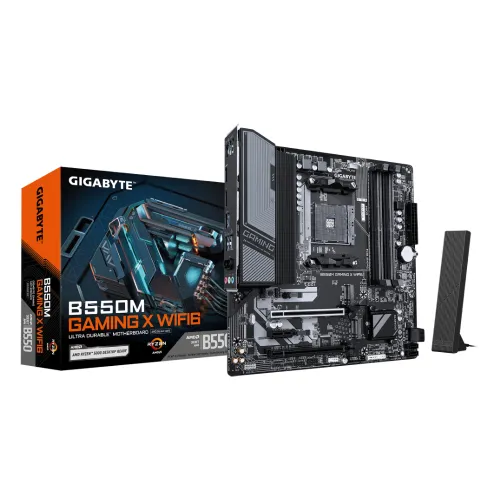

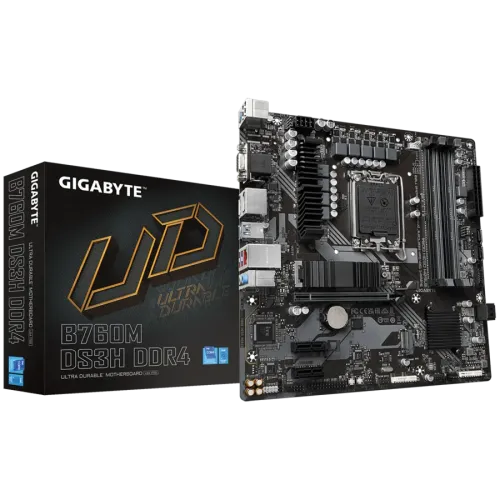

	This itemGIGABYTE B760M DS3H mATX Motherboard	AsusAsus EX-B650M-V7 AM5 micro-ATX Motherboard	GIGABYTEGIGABYTE B550M GAMING X WIFI6 AM4 mATX Motherboard	GIGABYTEGIGABYTE B760M DS3H DDR4 mATX Motherboard
Price	৳16,500	৳16,300	৳16,600	৳16,600
Availability	Out of stock	In stock	Out of stock	Out of stock
Brand	GIGABYTE	Asus	GIGABYTE	GIGABYTE
RAM type	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	8000+ (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II	Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor	Micro ATX Form Factor; 24.4cm x 24.4cm	micro-ATX Form Factor; 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro ATX Form Factor; 24.4cm x 24.4cm
Chipset	Intel B760 Express Chipset	AMD B650	AMD B550	Intel B760 Express Chipset
M.2 slots	—	—	1	1
