Asus Prime A520M-A Micro ATX AM4 Motherboard

Name: Asus Prime A520M-A Micro ATX AM4 Motherboard
Brand: Asus
Price: 8000 BDT
Availability: OutOfStock

Model: Asus Prime A520M-AItem #: asus-prime-a520m-a-motherboard

৳8,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD A520 Chipset
1 M.2 slots
4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/2666/ 2400/ 2133 MHz Un-buffered Memory; ECC Memory (ECC mode) support varies by CPU RAM type
mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Overview

ASUS Prime series is expertly engineered to unleash the full potential of the 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. The renowned ASUS UEFI BIOS provides everything you need to configure, tweak, and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time. PRIME A520M-A is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads. Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. M.2 slot supports up to 22110 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data. Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to an intuitive interface that lets you customize your system to create a uniquely personal look.

Specifications

Chipset: AMD A520
M.2 slots: 1
RAM type: 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/2666/ 2400/ 2133 MHz Un-buffered Memory; ECC Memory (ECC mode) support varies by CPU
Form factor: mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Memory — Type: Dual Channel Memory Architecture
Memory — Slots: 4 x DIMM slots
Highlights — Model: Asus Prime A520M-A
Graphics — Graphics: Integrated Graphics in the 3rd Gen AMD Ryzen with Radeon Graphics Processors; 1 x D-Sub; 1 x DVI-D; 1 x HDMI 2.1(4K@60HZ)

Show all 23 specifications

Expansion Slots — PCI: 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD A520 Chipset; 2 x PCIe 3.0 x1
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI 2.1(4K@60HZ)
Connector & Ports — Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC ; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; Audio Feature :; - LED-illuminated design; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors
Others — Special Features: ASUS Exclusive Software; Armoury Crate; AI Suite 3; - Performance And Power Saving Utility; TurboV EVO; EPU; Digi+ VRM; Fan Xpert 2+; - Lighting Control; - EZ update; ASUS CPU-Z; AI Charger; DAEMON Tools; Norton Anti-virus software (Free Trial for 60 days); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; ; ASUS 5X PROTECTION III; - ASUS DIGI+ VRM; - ASUS LANGuard; - ASUS Overvoltage Protection; - ASUS SafeSlot Core; - ASUS Stainless-Steel Back I/O; ASUS Q-Design; - ASUS Q-DIMM; - ASUS Q-Slot; ASUS Thermal Solution; - Aluminum heatsink design

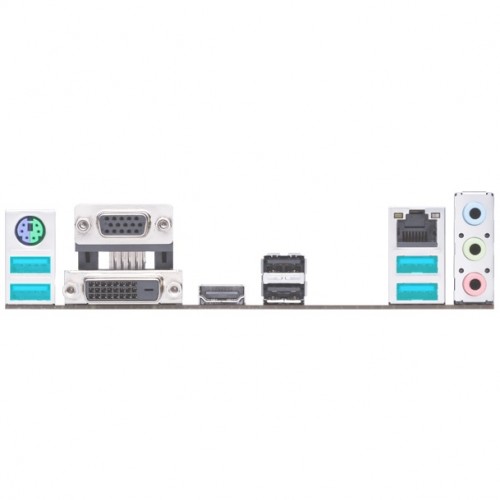

Connector & Ports — USB (s): Rear USB Port ( Total 6 ); 4 x USB 3.2 Gen 1 port(s)(4 x Type-A); 2 x USB 2.0 port(s)(2 x Type-A); Front USB Port ( Total 6 ); 2 x USB 3.2 Gen 1 port(s)(2 x Type-A); 4 x USB 2.0 port(s)(4 x Type-A)
Connector & Ports — D-Sub (s): 1 x D-Sub
Connector & Ports — DVI-D (s): 1 x DVI-D
Connector & Ports — LAN Port (s): Realtek RTL8111H 1Gb Ethernet; ASUS LANGuard
Basic Information — Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Connector & Ports — Supported Storage: Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports; 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors :; 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support; AMD A520 Chipset :; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10
Connector & Ports — Internal I/O Ports: 1 x CPU Fan connector(s); 2 x Chassis Fan connector(s); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 4 x SATA 6Gb/s connector(s); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin EATX 12V Power connectors; 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x COM port header
Warranty Information — Manufacturing Warranty: 03 Years Warranty
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header;

Compare with similar products

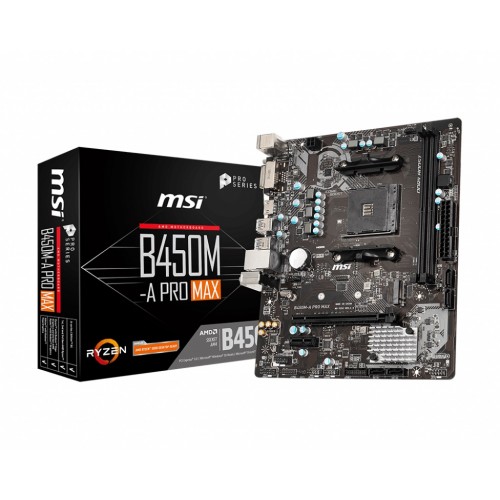

	This itemAsus Prime A520M-A Micro ATX AM4 Motherboard	MSIMSI A520M-A Pro AM4 AMD Micro-ATX Motherboard	ASRockASRock B450M-HDV R4.0 AMD Motherboard	MSIMSI B450M-A PRO MAX AMD AM4 Motherboard
Price	৳8,000	৳7,800	৳8,000	৳8,000
Availability	Out of stock	In stock	Out of stock	Out of stock
Brand	Asus	MSI	ASRock	MSI
M.2 slots	1	1	1	1
RAM type	4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/2666/ 2400/ 2133 MHz Un-buffered Memory; ECC Memory (ECC mode) support varies by CPU	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory	For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.;	Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC); - For AMD Ryzen Gen3 (R5/R7/R9) :; - 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE); - For AMD Other CPU; - 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE); Dual channel memory architecture; Supports ECC UDIMM memory (non-ECC mode); Support non-ECC UDIMM memory
Form factor	mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )	Micro-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)	- Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm;	m-ATX
Chipset	AMD A520	AMD B520	- AMD Promontory B450;	AMD B450 Chipset
