Shop all Asus products

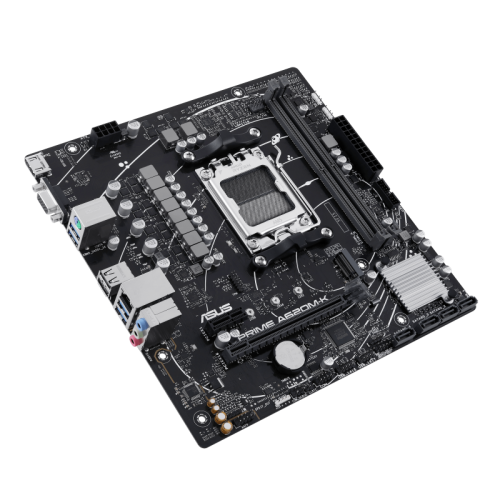

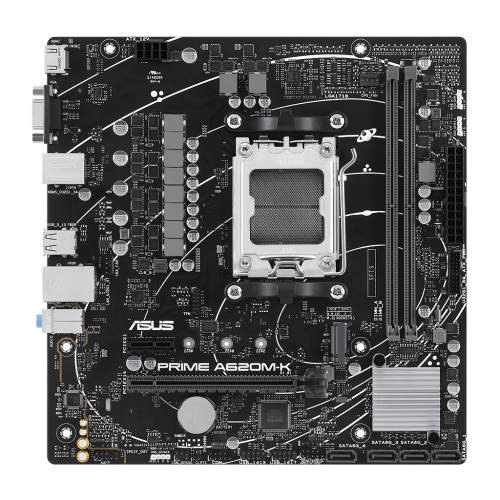

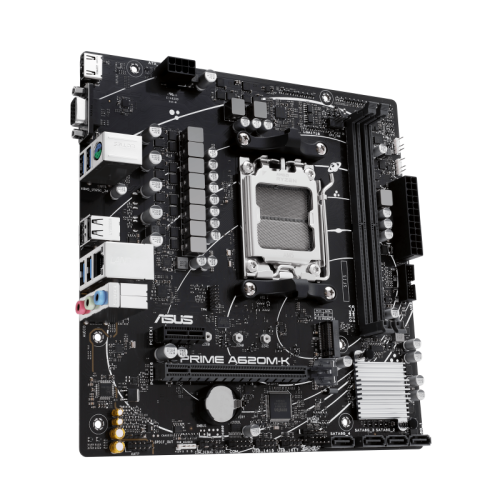

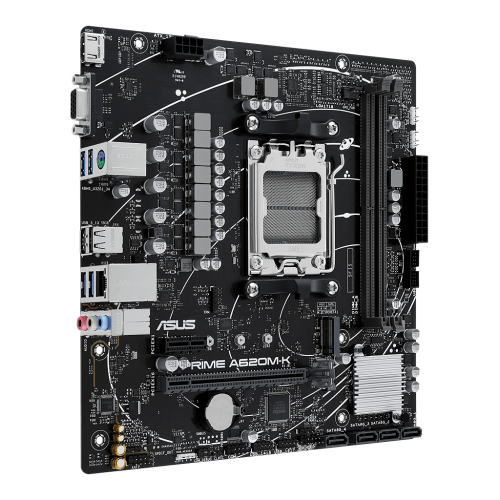

Asus PRIME A620M-K-CSM AM5 mATX Motherboard
Model: PRIME A620M-K-CSMItem #: asus-prime-a620m-k-csm-matx-motherboard
৳12,900৳13,000Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD A620 Chipset
- 1 M.2 slots
- DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration RAM type
- micro-ATX Form Factor; 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
Overview
The Asus PRIME A620M-K-CSM AM5 mATX Motherboard is a robust and versatile foundation for your next PC build, designed to unleash the full potential of AMD Ryzen 7000-series processors. This Asus motherboard supports the latest DDR5 memory and PCIe 4.0 for both graphics cards and M.2 storage, ensuring ultrafast performance and connectivity. It features a 64Gbps M.2 slot, Realtek 1Gb Ethernet, and multiple USB 3.2 Gen 1 Type-A ports for comprehensive connectivity options. With a durable 2-ounce copper PCB design, ASUS 5X PROTECTION III, SafeSlot Core, and Armoury Crate, it offers enhanced stability, compatibility, and security. The integrated Two-Way AI Noise Cancelation technology ensures crystal-clear communication, while Aura Sync RGB lighting with onboard Addressable Gen 2 headers allows for customizable lighting effects. The Asus PRIME A620M-K-CSM also includes a comprehensive cooling solution with a PCH heatsink and Fan Xpert, making it an ideal choice for smaller builds without compromising on performance or features.
Specifications
- Chipset
- AMD A620 Chipset
- M.2 slots
- 1
- RAM type
- DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
- Form factor
- micro-ATX Form Factor; 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
- Memory — Type
- DDR5
- Memory — Slots
- 2 x DIMM slots
- Highlights — Model
- PRIME A620M-K-CSM
- Graphics — Graphics
- 1 x VGA port; 1 x HDMI port; * Graphics specifications may vary between CPU types
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors*; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD Ryzen™ 8000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**; AMD A620 Chipset; 1 x PCIe 3.0 x1 slot
- Highlights — Features
- 1 x Realtek 1Gb Ethernet
- Memory — Maximum Memory
- Max 96GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert; - Power Saving; - Two-Way AI Noise Cancellation; AI Suite 3; - TurboV EVO; - DIGI+ VRM; - PC Cleaner; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Aluminum heatsink design; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
- Highlights — Supported RAM
- 2x DDR5, up to 96GB, 7200+(OC)
- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 6 ports); 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Connector & Ports — VGA (s)
- 1 x VGA port
- Highlights — Graphics Output
- 1x HDMI, 1 x VGA
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet
- Basic Information — Supported CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Connector & Ports — Supported Storage
- 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports

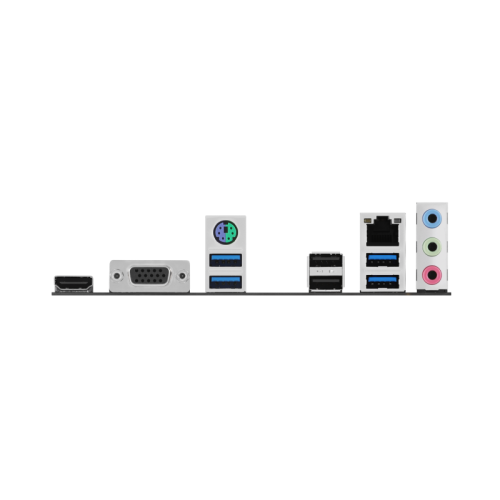

- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 2 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header; ; Back Panel I/O Ports; 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x VGA port; 1 x HDMI™ port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
- Warranty Information — Manufacturing Warranty
- 3 Years Warranty
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
Compare with similar products
 This itemAsus PRIME A620M-K-CSM AM5 mATX Motherboard |  AsusAsus PRIME N100I-D D4 Mini-ITX Motherboard |  GIGABYTEGigabyte B550M DS3H AM4 AMD Micro ATX Motherboard |  ASRockASRock B550M Pro4 DDR4 AMD Motherboard | |
|---|---|---|---|---|
| Price | ৳12,900 | ৳12,800 | ৳12,800 | ৳12,800 |
| Availability | In stock | In stock | Out of stock | Out of stock |
| Brand | Asus | Asus | GIGABYTE | ASRock |
| M.2 slots | 1 | — | 1 | 1 |
| RAM type | DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration | 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; * We recommend that you use 16GB or less memory module. | 3rd Gen AMD Ryzen Processors:; Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules; New Generation AMD Ryzen with Radeon Graphics processors:; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports Extreme Memory Profile (XMP) memory modules; - 15μ Gold Contact in DIMM Slots |
| Form factor | micro-ATX Form Factor; 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm) | Mini-ITX Form Factor; 6.7 inch x 6.7 inch (17cm x 17cm) | Micro ATX Form Factor; 24.4cm x 24.4cm | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; - Solid Capacitor design; - 2oz Copper PCB |
| Chipset | AMD A620 Chipset | — | AMD B550 | AMD B550 |
