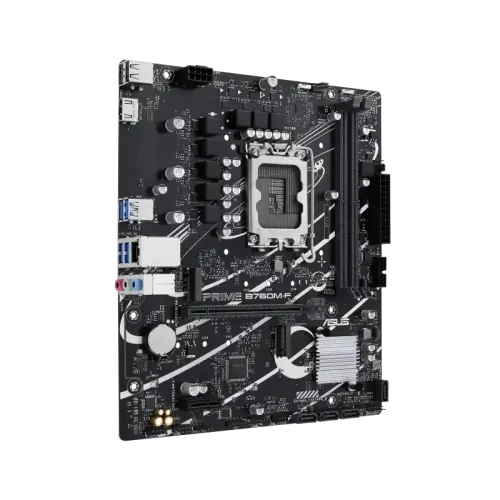

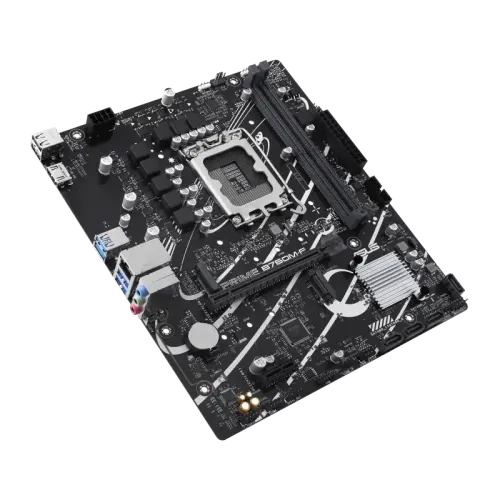

Asus PRIME B760M-F WIFI mATX Motherboard
Model: PRIME B760M-F WIFIItem #: asus-prime-b760m-f-wifi-motherboard
৳17,600৳17,700Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel B760 Chipset
- 2 M.2 slots
- 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module RAM type
- micro-ATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Overview
The ASUS PRIME B760M-F WIFI mATX Motherboard is a compact yet powerful solution tailored for modern PC builders seeking next-gen performance, efficient connectivity, and versatile expansion in a micro-ATX form factor. Engineered around the Intel B760 chipset, it supports Intel Core 14th, 13th, and 12th Gen processors, along with Pentium Gold and Celeron CPUs, via the LGA1700 socket, making it ideal for both mainstream users and performance enthusiasts. With support for up to 96GB of DDR5 memory across two DIMM slots, users can unlock blazing-fast speeds up to DDR5-8000 (OC), perfect for multitasking, gaming, and content creation. Storage is equally impressive, featuring two PCIe 4.0 x4 M.2 slots for ultra-fast NVMe SSDs and four SATA 6Gb/s ports for traditional drives, ensuring ample space and speed for demanding workflows. The Asus PRIME B760M-F WIFI board’s expansion capabilities include one PCIe 5.0 x16 slot for high-end graphics cards and one PCIe 4.0 x1 slot for additional peripherals, while onboard connectivity is bolstered by Wi-Fi 6, Realtek 1Gb Ethernet, Bluetooth v5.3, and a rich array of USB ports—including four USB 5Gbps ports, two USB 2.0 ports, and headers for further expansion. Visual output is handled via HDMI and DisplayPort, supporting up to 4K resolution, and audio is delivered through three jacks backed by Realtek HD audio with shielding and premium capacitors for immersive sound. Aesthetically, the Asus PRIME B760M-F WIFI motherboard supports Aura Sync RGB lighting through two Addressable Gen 2 headers, allowing users to personalize their builds with synchronized effects. The 8-pin ProCool power connector ensures stable power delivery, while ASUS’s Fan Xpert 2+ and Digi+ VRM technologies provide intelligent cooling and energy efficiency. With intuitive BIOS controls and AI-enhanced features like two-way noise cancellation, the Asus PRIME B760M-F WIFI offers a balanced blend of performance, reliability, and customization, making it a standout choice for compact, high-performance desktop builds.
Specifications
- Chipset
- Intel B760 Chipset
- M.2 slots
- 2
- RAM type
- 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module
- Form factor
- micro-ATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
- Memory — Type
- DDR5
- Memory — Slots
- 2 x DIMM
- Highlights — Model
- PRIME B760M-F WIFI
- Graphics — Graphics
- ** Supports 4K@30Hz as specified in HDMI 1.4.
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x1 slot
- Highlights — Features
- 1 x Realtek 1Gb Ethernet, WIFI 6
- Memory — Maximum Memory
- Max. 96GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1x HDMI port
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert 2+; - Power Saving; - Two-Way AI Noise Cancelation; AI Suite 3; - DIGI+ VRM; - PC Cleaner; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage protection; - SafeSlot Core; - Stainless-steel back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS EZ DIY; - ProCool; ASUS Thermal Solution; - Aluminum heatsink design; Aura Sync; - Addressable Gen 2 headers
- Connector & Ports — USB (s)
- Rear USB (Total 6 ports); 4 x USB 5Gbps ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 5 ports); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 3 additional USB 2.0 ports
- Highlights — Graphics Output
- 1 x HDMI, 1 x DP, 3 x Audio
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet port
- Basic Information — Supported CPU
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 1x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports

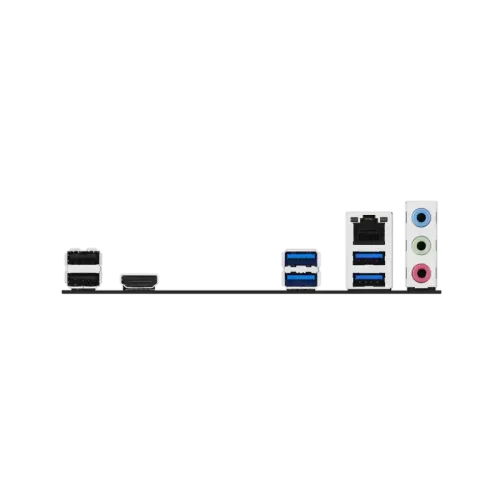

- Internal I/O Connectors; Fan and Cooling Related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage Related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 3 additional USB 2.0 ports; Miscellaneous; 2 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front panel audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x Speaker header; 1 x 10-1 pin System Panel header; ; ; Back Panel I/O Ports; 4 x USB 5Gbps ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x HDMI port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks
- Warranty Information — Manufacturing Warranty
- 3 years warranty
- Connector & Ports — Wireless Communication module
- Wi-Fi 6
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
Compare with similar products
 This itemAsus PRIME B760M-F WIFI mATX Motherboard |  ColorfulColorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard |  GIGABYTEGigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard |  GIGABYTEGIGABYTE B760M DS3H AX mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳17,600 | ৳17,500 | ৳17,500 | ৳17,700 |
| Availability | In stock | In stock | Out of stock | Out of stock |
| Brand | Asus | Colorful | GIGABYTE | GIGABYTE |
| M.2 slots | 2 | — | 1 | — |
| RAM type | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module | - DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; - Intel is supported Extreme Memory Profile (XMP) memory technology; - supports dual channel memory technology | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | micro-ATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | M-ATX; 245mm x 245mm | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | Intel B760 Chipset | Intel B760 | AMD B550 | Intel B760 Express Chipset |
