Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard

Name: Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard
Brand: GIGABYTE
Price: 17500 BDT
Availability: OutOfStock

Model: B550 EAGLE WIFI6Item #: gigabyte-b550-eagle-wifi6-motherboard

৳17,500

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B550 Chipset
1 M.2 slots
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The Gigabyte B550 EAGLE WIFI6 Motherboard is a high-performance motherboard designed for AMD Ryzen CPUs that provides a powerful combination of speed, reliability, and modern connectivity. This Gigabyte AMD Motherboard features a 10+3 Digital VRM design, ensuring a consistent and efficient power supply, making it an excellent choice for gaming, content creation, and productivity applications. This Gigabyte 550 motherboard supports PCIe 4.0, which allows for ultra-fast data transfer for high-end graphics cards and NVMe SSDs, resulting in greater system responsiveness. Users can experience lightning-fast storage speeds with twin M.2 slots, one of which is a PCIe 4.0 M.2 slot, lowering load times and increasing workflow efficiency. This Gigabyte ATX Motherboard features Wi-Fi 6 and GbE LAN, enabling uninterrupted online gaming and flawless streaming capabilities, making it an ideal Gigabyte wifi motherboard for those who want fast internet connectivity. The motherboard also features a superior thermal design, including full-metal heatsinks and Smart Fan 6 technology, which keeps the system cool under intense workloads while minimizing noise for an optimal experience. Also, the Ultra Durable components, such as strengthened PCIe slots and strong power connectors, contribute to its lifespan, making it one of the most dependable Gigabyte ATX Motherboard alternatives available. Whether you are a gamer, a professional user, or a PC builder searching for a reliable motherboard with high-end capabilities, the Gigabyte B550 EAGLE WIFI6 Motherboard is a superb choice, providing cutting-edge technology, high-speed networking, and durability for demanding tasks. With its high-end features and Gigabyte wifi motherboard capabilities, the Gigabyte 550 motherboard provides a solid foundation for any modern computing setup, providing top-tier performance and dependability.

Specifications

Chipset: AMD B550
M.2 slots: 1
RAM type: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR4
Memory — Slots: 4 x DIMM
Highlights — Model: B550 EAGLE WIFI6
Graphics — Graphics: ntegrated Graphics Processor with AMD Radeon™ Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; ** Support for native HDMI 2.1 TMDS compatible ports.

Show all 29 specifications

Expansion Slots — PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; ; Chipset:; - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
Highlights — Features: Realtek GbE LAN, Wi-Fi 6, Bluetooth 5.3
Memory — Maximum Memory: 128 GB
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: Support for RAID 0, RAID 1, and RAID 10
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for APP Center; @BIOS; EasyTune; Smart Backup; System Information Viewer; Support for Q-Flash; Support for Xpress Install;
Highlights — Supported RAM: 4x DDR4, Max 128GB 3200 MT/s
Connector & Ports — USB (s): CPU:; - AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel; - AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel; - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support; - 2 x USB 3.2 Gen 1 ports on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; - 4 x USB 2.0/1.1 ports available through the internal USB headers; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports on the back panel
Graphics — Max Shared Memory: 16 GB
Highlights — Graphics Output: 1x HDMI
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Basic Information — Supported CPU: AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Connector & Ports — Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:; - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs; - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; ; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices

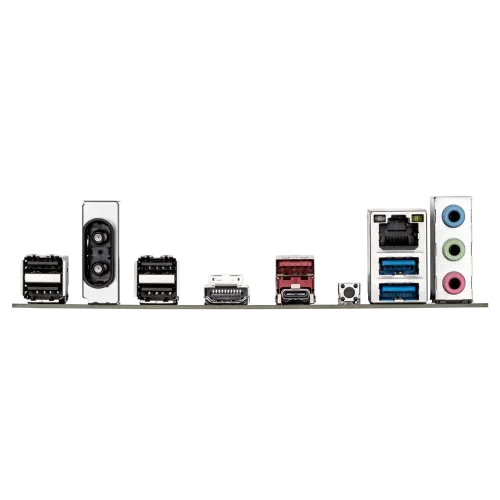

Connector & Ports — Internal I/O Ports: Internal I/O Connectors; 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper; ; Back Panel Connectors; 4 x USB 2.0/1.1 ports; 2 x antenna connectors (1T1R); 1 x HDMI port (Note); 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red); 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 1 x Q-Flash Plus button; 1 x RJ-45 port; 2 x USB 3.2 Gen 1 ports; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 03 years
Connector & Ports — Wireless Communication module: Realtek Wi-Fi 6 RTL8851BE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 80MHz wireless standard
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
