GIGABYTE B840M EAGLE WIFI6 AMD AM5 Motherboard
Model: B840M EAGLE WIFI6Item #: gigabyte-b840m-eagle-wifi6-motherboard
৳17,400৳17,800Save 2%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD B840 Chipset
- 1 M.2 slots
- Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) RAM type
- Micro ATX Form Factor; 24.4cm x 24.4cm
Overview
The GIGABYTE B840M EAGLE WIFI6 AM5 Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AMD Socket AM5 platform. Powered by the AMD B840 chipset, the GIGABYTE Motherboard ensures stable computing with a digital 5+2+2 phases VRM solution. Dual channel DDR5 architecture supports up to 128GB across two DIMMs with speeds reaching 7600 MT/s overclocked. AMD EXPO and XMP profiles optimize memory, while D5 Bionic Corsa enhances infinite memory performance. The GIGABYTE B840M EAGLE WIFI6 Motherboard has EZ-Latch PCIe and M.2 slots feature quick release and screwless design for effortless installation. M.2 heatsinks also use screwless EZ-Latch design, supported by VRM Thermal Armor Advanced and M.2 Thermal Guard. The GIGABYTE Motherboard includes two M.2 connectors and four SATA 6Gb/s ports with RAID 0,1,5,10 support. PCIe UD Slot provides 10X strength for graphics cards and improved heat dissipation. The GIGABYTE B840M EAGLE WIFI6 Motherboard integrated AMD Radeon Graphics supports DisplayPort 1.4 at 3840x2160@144Hz and HDMI 2.1 at 4096x2160@60Hz with HDR. Realtek 2.5GbE LAN and Realtek Wi-Fi 6 RTL8851BE with Bluetooth 5.3 deliver fast networking. Expansion includes PCIe 4.0 x16 CPU slot and PCIe 3.0 x4 chipset slot. USB connectivity covers USB 3.2 Gen1, USB Type-C header, and multiple USB 2.0 ports. The GIGABYTE B840M EAGLE WIFI6 AM5 Motherboard has internal connectors include ATX power, fan and pump headers, RGB Gen2 headers, TPM header, and Clear CMOS jumper. Back panel offers PS/2, Q-Flash Plus button, SMA antenna connectors, RJ-45, audio jacks, HDMI, and DisplayPort. Licensed AMI UEFI BIOS with 256 Mbit flash supports Q-Flash, Smart Backup, and GCC software. Micro ATX form factor ensures compatibility with Windows 11 and Windows 10 64-bit systems.
Specifications
- Chipset
- AMD B840
- M.2 slots
- 1
- RAM type
- Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
- Form factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
- Memory — Type
- DDR5
- Memory — Slots
- 2 x DIMM sockets
- Highlights — Model
- B840M EAGLE WIFI6
- Graphics — Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support:; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; Support for DisplayPort 1.4 version and HDR.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.1 version, HDCP 2.3, and HDR.; Support for native HDMI 2.1 TMDS compatible ports.; (Graphics specifications may vary depending on CPU support.)
Show all 29 specificationsShow fewer
- Expansion Slots — PCI
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:; AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- Highlights — Features
- 2x M.2, Realtek 2.5GbE LAN, Realtek Wi-Fi 6 RTL8851BE
- Memory — Maximum Memory
- up to 128 GB (64 GB single DIMM capacity) of system memory
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1x HDMI
- Connector & Ports — RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; * RAID 5 is only available on AMD Ryzen 9000 Series Processors.; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks; 1 x front panel audio header
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
- Highlights — Supported RAM
- 2x DDR5, Up to 7600(O.C.), Max 128GB
- Connector & Ports — USB (s)
- CPU:; 2 x USB 3.2 Gen 1 ports on the back panel; CPU+USB 2.0 Hub:; 4 x USB 2.0/1.1 ports on the back panel; Chipset:; 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; 2 x USB 3.2 Gen 1 ports available through the internal USB headers; 4 x USB 2.0/1.1 ports available through the internal USB headers
- Highlights — Graphics Output
- 1 x DisplayPort, 1 x HDMI
- Connector & Ports — LAN Port (s)
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Basic Information — Supported CPU
- AMD Socket AM5, support for:; AMD Ryzen 9000 Series Processors/; AMD Ryzen 8000 Series Processors/; AMD Ryzen 7000 Series Processors
- Connector & Ports — Display Port (s)
- 2 x DisplayPorts
- Connector & Ports — Supported Storage
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:; AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs; 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports

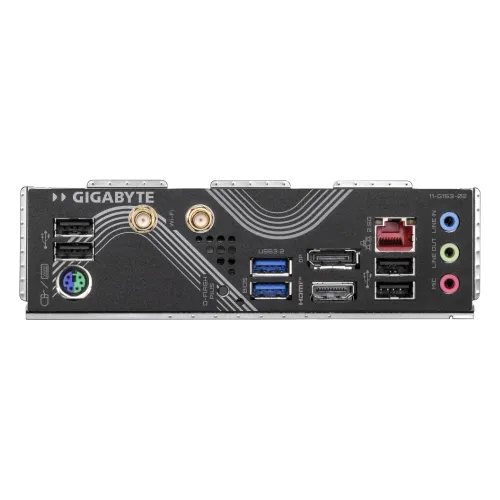

- Internal I/O Connectors; 1x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 2 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 4 x USB 2.0/1.1 ports; 1 x DisplayPort (Note); 1 x HDMI port (Note); 1 x Q-Flash Plus button; 2 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 2 x SMA antenna connectors (2T2R); 3 x audio jacks
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Realtek Wi-Fi 6 RTL8851BE; - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 80MHz wireless standard; (Actual data rate may vary depending on environment and equipment.)
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Compare with similar products
 This itemGIGABYTE B840M EAGLE WIFI6 AMD AM5 Motherboard |  GIGABYTEGIGABYTE B650M D3HP DDR5 AM5 Motherboard |  ColorfulColorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard |  GIGABYTEGigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳17,400 | ৳17,400 | ৳17,500 | ৳17,500 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | GIGABYTE | GIGABYTE | Colorful | GIGABYTE |
| M.2 slots | 1 | — | — | 1 |
| RAM type | Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | - DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory; - Intel is supported Extreme Memory Profile (XMP) memory technology; - supports dual channel memory technology | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm | M-ATX; 245mm x 245mm | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset | AMD B840 | AMD B650 | Intel B760 | AMD B550 |
