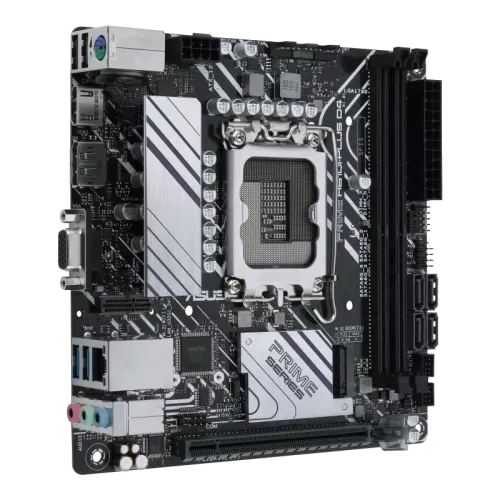

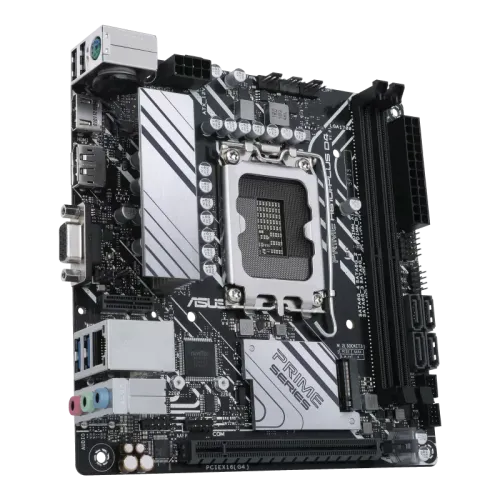

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
Model: PRIME H610I-PLUS D4Item #: asus-prime-h610i-plus-d4-motherboard
৳16,800৳17,000Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel H610 Chipset
- 1 M.2 slots
- 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) RAM type
- Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Overview
The ASUS PRIME H610I-PLUS D4 Mini ITX motherboard is engineered to deliver high performance and robust connectivity for compact PC builds. It is based on the Intel H610 chipset and supports the Intel LGA 1700 socket, making it compatible with 14th, 13th, and 12th Gen Intel Core processors. This motherboard boasts an enhanced power delivery system with 5+1+1 DrMOS power stages, ensuring stable and reliable performance. Cooling is efficiently managed through the inclusion of VRM and PCH heatsinks, as well as Fan Xpert technology. In terms of connectivity, it offers a 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and multiple USB 3.2 Gen 1 ports, ensuring fast data transfer and reliable internet connectivity. The motherboard supports a variety of display outputs, including DisplayPort, HDMI, and D-Sub, providing versatile options for different setups. Additional features include COM and mono-out headers with an Amp IC for expanded peripheral connectivity and SATA 6 Gbps ports for quick data access. The ASUS PRIME H610I-PLUS D4 incorporates 5X Protection III, offering multiple hardware safeguards. This combination of performance, cooling, connectivity, and protection makes it an excellent choice for building a powerful yet compact system.
Specifications
- Chipset
- Intel H610 Chipset
- M.2 slots
- 1
- RAM type
- 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP)
- Form factor
- Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
- Memory — Type
- DDR4
- Memory — Slots
- 2x DIMM
- Highlights — Model
- PRIME H610I-PLUS D4
- Graphics — Graphics
- Support DisplayPort 1.4 with max. resolution of 4K@60Hz.; Support HDMI® 2.1 with max. resolution of 4K@60Hz.
Show all 26 specificationsShow fewer
- Expansion Slots — PCI
- Intel 14th & 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot
- Highlights — Features
- 1 x Realtek 1Gb Ethernet
- Memory — Maximum Memory
- Max. 64GB
- Basic Information — BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI port
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3x Audio jacks
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - Aluminum heatsink design
- Highlights — Supported RAM
- 2x DDR4, Max 64GB 3200
- Connector & Ports — USB (s)

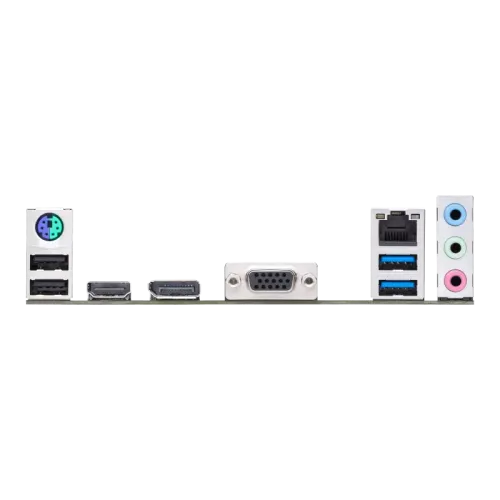

- Rear USB (Total 4 ports); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 4 ports); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports
- Highlights — Graphics Output
- 1x HDMI port, 1x DisplayPort, 1 x D-Sub
- Connector & Ports — D-Sub (s)
- 1 x D-Sub
- Connector & Ports — LAN Port (s)
- 1 x Realtek 1Gb Ethernet port
- Basic Information — Supported CPU
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Supported Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel H610 Chipset; M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x Mono-out header(with Amp IC); 1 x SMBUS header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 years warranty
- Connector & Ports — Wireless Communication module
- M.2 slot only (Key E, CNVi & PCIe); *Wi-Fi module is sold separately.
Compare with similar products

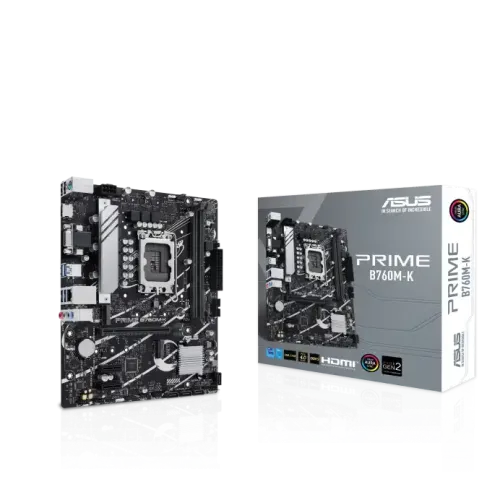

 This itemASUS PRIME H610I-PLUS D4 Mini ITX Motherboard |  MSIMSI PRO H810M-B DDR5 LGA1851 mATX Motherboard |  AsusAsus H810M AYW GAMING WIFI LGA 1851 mATX Motherboard |  AsusAsus PRIME B760M-K mATX Motherboard | |
|---|---|---|---|---|
| Price | ৳16,800 | ৳16,700 | ৳16,700 | ৳16,800 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | Asus | MSI | Asus | Asus |
| M.2 slots | 1 | 1 | 2 | — |
| RAM type | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) | — | Supports up to; 7200MT/s with Intel® Core™ Ultra 200S Plus Processors; 6400MT/s with Intel® Core™ Ultra 200S Processors; Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual channel memory architecture; DIMM Fit | DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) |
| Form factor | Mini ITX Form Factor; 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) | Micro-ATX | micro-ATX Form Factor; 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm) | mATX Form Factor; 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Chipset | Intel H610 Chipset | Intel H810 | Intel H810 Chipset | Intel B760 Chipset |
