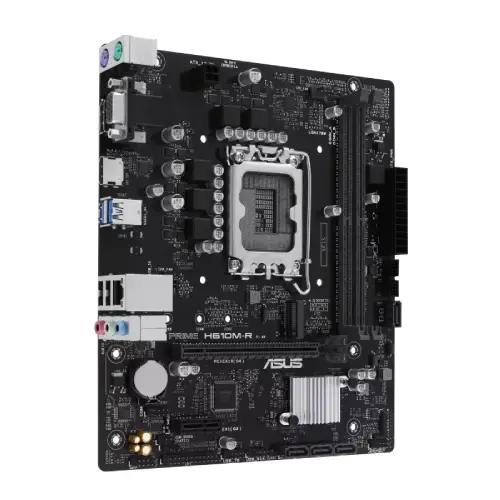

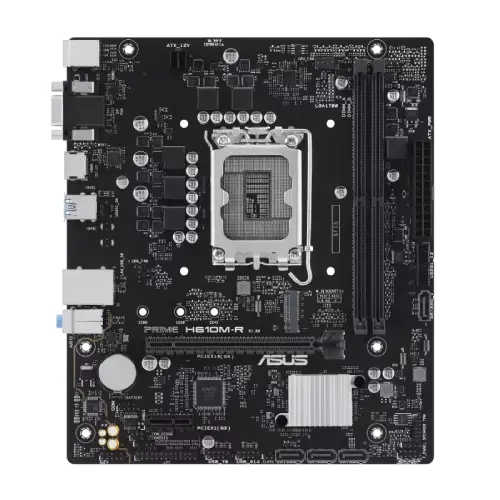

ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard

Name: ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
Brand: Asus
Price: 11450 BDT
Availability: InStock

Model: PRIME H610M-RItem #: asus-prime-h610m-r-ddr5-motherboard

৳11,450~~৳12,040~~Save 5%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel H610 Chipset
1 M.2 slots
DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration RAM type
mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )

Overview

The ASUS PRIME H610M-R Motherboard is a powerful, compact option that exemplifies the performance and versatility of a modern Asus motherboard. This Asus 610 Motherboard, built around Intel's advanced H610 chipset to support 12th, 13th, and 14th Gen processors, features DDR5 memory compatibility with dual DIMM slots that can hold up to 96GB, ensuring lightning-fast data transfer and responsiveness for both everyday computing and high-performance builds. ASUS PRIME H610M-R's mATX compact factor does not limit expansion choices, with a PCIe 4.0 x16 slot for high-speed graphics, an extra PCIe 3.0 x1 slot, and ample storage options, including an M.2 slot running in PCIe 3.0 x4 mode and four SATA 6Gb/s connections. Multiple display outputs (HDMI, DisplayPort, and VGA), integrated Realtek 1Gb Ethernet, and a variety of USB 3.2 Gen 1 and USB 2.0 connectors enable simple connection with accessories. This Asus motherboard's optimized aluminum heatsink architecture and the enhanced durability of ASUS 5X Protection III provide remarkable stability and longevity, while its intuitive UEFI BIOS caters to both novices and seasoned enthusiasts. Overall, the ASUS PRIME H610M-R Motherboard is a standout Asus 610 Motherboard that combines cutting-edge technology, efficiency, and dependability into a powerful foundation for a wide range of computer tasks.

Specifications

Chipset: Intel H610 Chipset
M.2 slots: 1
RAM type: DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Form factor: mATX Form Factor; 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Memory — Type: DDR5
Memory — Slots: 2 x DIMM
Highlights — Model: PRIME H610M-R
Graphics — Graphics: 1 x DisplayPort**; 1 x VGA port; 1 x HDMITM port***; ; * Graphics specifications may vary between CPU types.

Show all 27 specifications

Expansion Slots — PCI: Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 4.0 x16 slot; Intel H610 Chipset; 1 x PCIe 3.0 x1 slot
Highlights — Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet
Memory — Maximum Memory: Max. 96GB
Basic Information — BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI port
Basic Information — Audio: 3 x Audio jacks
Connector & Ports — Audio: ealtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; AI Suite 3; EPU; DIGI+ VRM; PC Cleaner; ASUS CPU-Z; Norton 360 for Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-Slot; - Q-LED Core; ASUS Thermal Solution; - Aluminum heatsink design
Connector & Ports — USB (s): Rear USB (Total 4 ports); 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 6 ports); 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Connector & Ports — VGA (s): 1 x VGA
Highlights — Graphics Output: 1x HDMI, 1x VGA, 1x DP
Connector & Ports — LAN Port (s): 1 x Realtek 1Gb Ethernet
Basic Information — Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron Processors*; Supports up to Intel 65W CPU; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
Connector & Ports — Display Port (s): 1 x Display port
Connector & Ports — Supported Storage: 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports

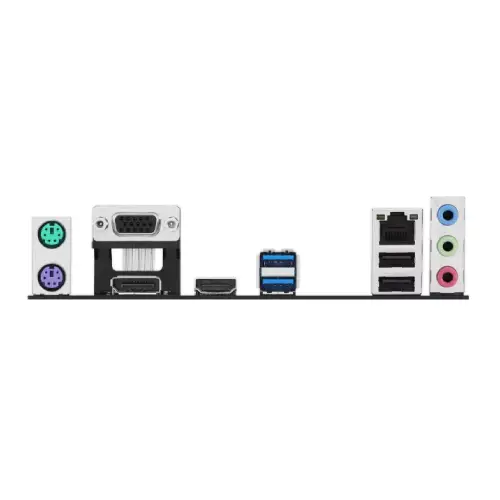

Connector & Ports — Internal I/O Ports: Back Panel I/O Ports; 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x VGA port; 1 x HDMITM port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard (purple) port; 1 x PS/2 Mouse (green) port; ; Internal I/O Connectors; Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; Power related; 1 x 24-pin Main Power connector; 1 x 4-pin +12V Power connector; Storage related; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; Miscellaneous; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x Speaker header; 1 x 10-1 pin System Panel header
Warranty Information — Manufacturing Warranty: 3 years Warranty
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1 pin)
