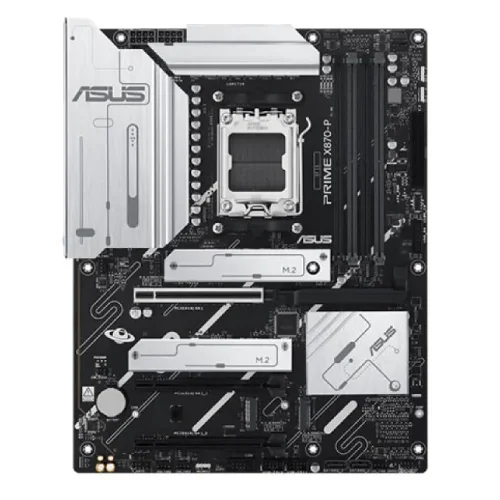

Asus PRIME X870-P-CSM AM5 ATX Motherboard

Name: Asus PRIME X870-P-CSM AM5 ATX Motherboard
Brand: Asus
Price: 41500 BDT
Availability: InStock

Model: PRIME X870-P-CSMItem #: asus-prime-x870-p-csm-motherboard

৳41,500~~৳42,200~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD X870 Chipset
9000 M.2 slots
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP) RAM type
ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Overview

The Asus PRIME X870-P-CSM AM5 ATX Motherboard is a versatile and dependable solution designed to satisfy the demands of both professional and personal computing, providing an ideal blend of performance, dependability, and usability. This Asus motherboard, which is based on the strong AMD X870 chipset and features the cutting-edge AM5 socket, supports the AMD Ryzen 7000, 8000, and 9000 series CPUs, making it a future-ready option for high-performance computing. Designed to handle demanding workloads with ease, Asus PRIME X870-P-CSM Motherboard supports up to 192GB of DDR5 RAM, allowing for lightning-fast data processing and seamless multitasking. Storage options are equally robust, with four M.2 slots and two SATA 6Gb/s connections that allow users to seamlessly integrate a variety of high-speed and large-capacity storage devices. The connection suite is extremely modern, with dual USB4 ports for lightning-fast data transfers, PCIe 5.0 x16 SafeSlots for next-generation graphics cards, and sophisticated networking features to assure consistent performance across all applications. This Asus X870 motherboard is designed for efficiency and stability, with a 14+2+1 power stage configuration that provides consistent and reliable power to high-performance components. The comprehensive cooling solution, which includes well-designed heatsinks and optimized thermal management, keeps the system running smoothly even under heavy loads. To improve the building and upgrading experience, the Asus PRIME X870-P-CSM has a pre-mounted I/O shield for easy installation and intuitive firmware tools that make customizing and setup simple even for inexperienced builders. Combining advanced features, consistent performance, and user-friendly design. This Asus PRIME motherboard is an excellent starting point for building a powerful and future-proof system that caters to both professional productivity and personal fun.performance and user-friendly design.

Specifications

Chipset: AMD X870 Chipset
M.2 slots: 9000
RAM type: Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP)
Form factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: PRIME X870-P-CSM
Graphics — Graphics: 1 x HDMI™ port**; 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports 4K@60Hz as specified in HDMI 2.1. ; *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.; **** VGA resolution support depends on processors' or graphic cards' resolution.

Show all 26 specifications

Expansion Slots — PCI: AMD Ryzen 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD X670 Chipset; 2 x PCIe 4.0 x16 slots (support x4 mode); 1 x PCIe 3.0 x1 slot
Highlights — Features: Realtek 2.5Gb Ethernet, Realtek 7.1 Surround Sound
Memory — Maximum Memory: 192GBB
Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOSc
Connector & Ports — HDMI: 1x HDMI 2.1
Connector & Ports — RAID: * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Connector & Ports — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; ASUS DriverHub; ASUS GlideX; TurboV Core; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot; Aura Sync; - Addressable Gen 2 headers

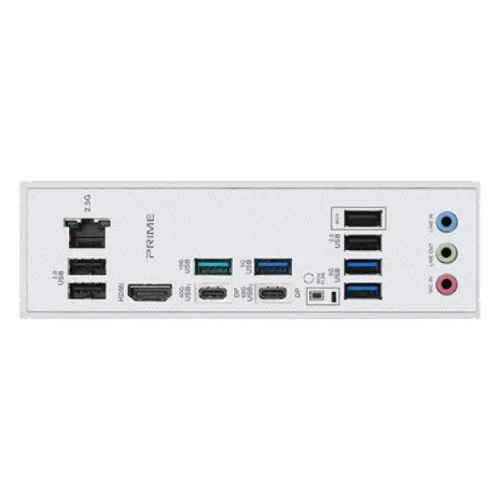

Connector & Ports — USB (s): 2 x USB4 (40Gbps) ports support USB Type-C display outputs**; ; Rear USB (Total 10 ports); 2 x USB4 (40Gbps) ports (2 x USB Type-C); 1 x USB 10Gbps port (1 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A
Highlights — Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet
Basic Information — Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Connector & Ports — Supported Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD X870 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***; M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****; 2 x SATA 6Gb/s ports****; * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.; ** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.; *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.; **** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
Connector & Ports — Internal I/O Ports: Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 4 x M.2 slots (Key M); 2 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header (14-1 pin)
