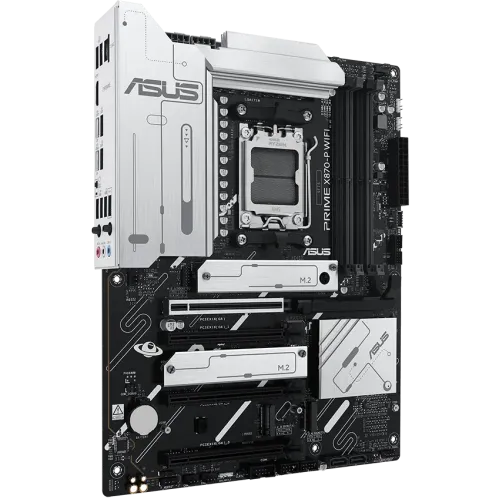

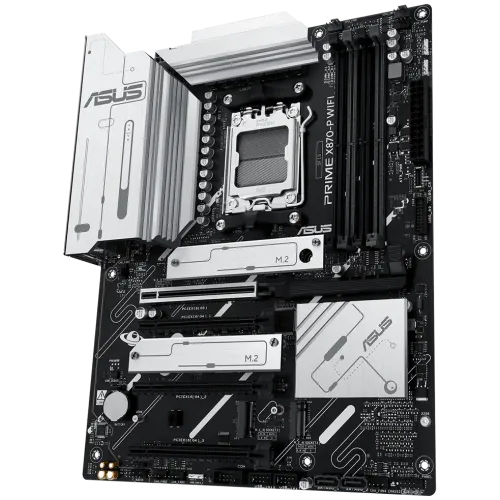

Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard
Model: PRIME X870-P WIFI-CSMItem #: asus-prime-x870-p-wifi-csm-motherboard
৳41,800৳44,200Save 5%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- AMD X870 Chipset
- 9000 M.2 slots
- Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP) RAM type
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Overview
The Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard is a powerhouse designed to unlock the full potential of AMD Ryzen 9000, 8000, and 7000 series processors, making it an ideal choice for advanced AI applications and high-performance computing. This Asus motherboard features the AMD X870 chipset and AMD Socket AM5, supporting up to 192GB of DDR5 RAM with speeds exceeding 8000 MT/s (OC) for the latest Ryzen processors. It offers extensive storage options with four M.2 slots and two SATA 6Gb/s ports, ensuring ample space for all your data needs. Connectivity is top-notch with dual USB 40Gbps Type-C ports, WiFi 7, and PCIe 5.0 slots, providing high-speed data transfer and seamless connectivity. The cooling system is robust, featuring VRM heatsinks, thermal pads, and multiple temperature sources to maintain optimal performance. Expansion is flexible with one PCIe 5.0 x16 slot and three PCIe 4.0 x16 slots, catering to various expansion requirements. Additionally, this Asus AMD motherboard supports 4K@60Hz graphics via HDMI 2.1 and DisplayPort 1.4a, and offers customizable aesthetics with Aura Sync RGB lighting. The Asus PRIME X870-P WIFI-CSM is perfect for PC enthusiasts and DIY builders seeking a reliable, high-performance foundation for their systems, ensuring future-proof capabilities and readiness for demanding applications. With its advanced AI capabilities, extensive connectivity options, and superior cooling solutions, this motherboard stands out as a top-tier choice for anyone looking to build a cutting-edge PC. Whether you're a gamer, content creator, or professional, the Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard provides the stability, speed, and customization options needed to create a truly exceptional computing experience.
Specifications
- Chipset
- AMD X870 Chipset
- M.2 slots
- 9000
- RAM type
- Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP)
- Form factor
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- PRIME X870-P WIFI-CSM
- Graphics — Graphics
- 1 x HDMI™ port**; 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***; * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.; ** Supports 4K@60Hz as specified in HDMI 2.1. ; *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.; **** VGA resolution support depends on processors' or graphic cards' resolution.
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- AMD Ryzen 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD X670 Chipset; 2 x PCIe 4.0 x16 slots (support x4 mode); 1 x PCIe 3.0 x1 slot
- Highlights — Features
- 1 x Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4
- Memory — Maximum Memory
- 192GBB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOSc
- Connector & Ports — HDMI
- 1x HDMI 2.1
- Connector & Ports — RAID
- * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Connector & Ports — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; ASUS DriverHub; ASUS GlideX; TurboV Core; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-Antenna; - Q-Dashboard; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot; Aura Sync; - Addressable Gen 2 headers

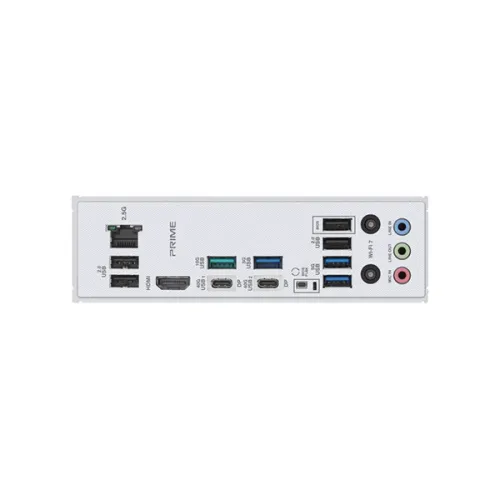

- Connector & Ports — USB (s)
- 2 x USB4 (40Gbps) ports support USB Type-C display outputs**; ; Rear USB (Total 10 ports); 2 x USB4 (40Gbps) ports (2 x USB Type-C); 1 x USB 10Gbps port (1 x Type-A); 3 x USB 5Gbps ports (3 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A
- Highlights — Graphics Output
- 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet
- Basic Information — Supported CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Connector & Ports — Supported Storage
- Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*; AMD Ryzen™ 9000 & 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); AMD X870 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**; M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***; M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****; 2 x SATA 6Gb/s ports****; * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.; ** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.; *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.; **** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
- Connector & Ports — Internal I/O Ports
- Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connectors; Storage Related; 4 x M.2 slots (Key M); 2 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 7*; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band**; Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.; Bluetooth® v5.4**
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1 pin)
Compare with similar products
 This itemAsus PRIME X870-P WIFI-CSM AM5 ATX Motherboard |  AsusAsus TUF GAMING B850-BTF WIFI W ATX Motherboard |  AsusAsus TUF GAMING B850-PRO WIFI7 W NEO ATX Motherboard |  MSIMSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳41,800 | ৳41,800 | ৳41,900 | ৳42,000 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | Asus | Asus | Asus | MSI |
| M.2 slots | 9000 | 3 | 3 | 4 |
| RAM type | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors; ECC and Non-ECC, Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO); ASUS Enhanced Memory Profile (AEMP) | Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP); * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration | Supports up to; 8400+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors,; 9000+MT/s(OC)*/8600+MT/s(OC)** with Ryzen™ 8000 Series Processors,; 8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors,; ECC and Non-ECC Un-buffered DIMM***; Dual channel memory architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; • 1DPC 1R Max speed up to 7800+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory |
| Form factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm) | ATX Form Factor; 12 inch x 9.6 inch (30.5 cm x 24.4 cm) | ATX; 243.84mmx304.8mm |
| Chipset | AMD X870 Chipset | AMD B850 | AMD B850 Chipset | Intel Z790 Chipset |
