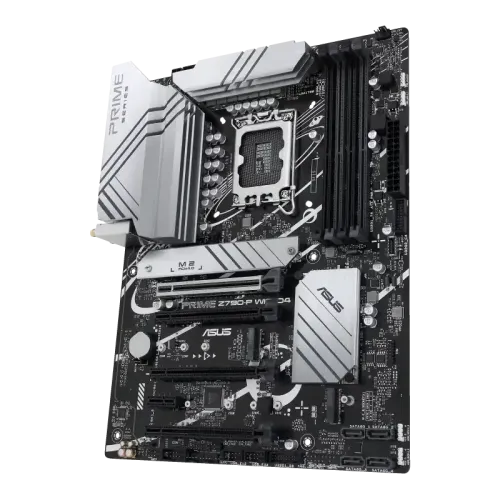

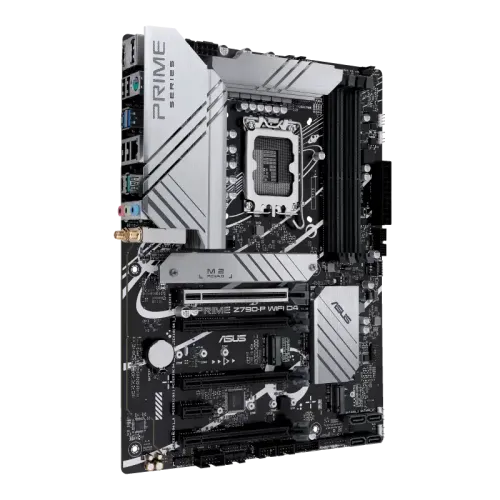

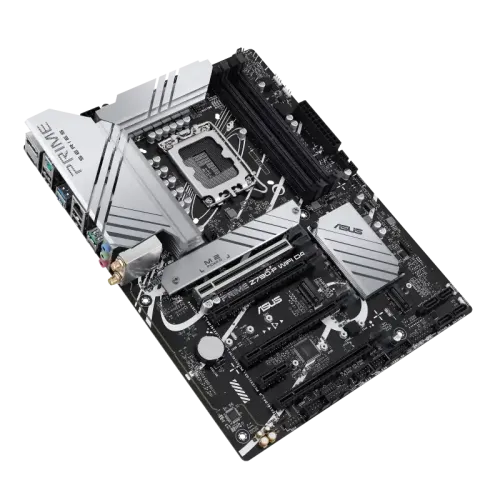

ASUS PRIME Z790-P WIFI D4-CSM ATX Motherboard
Model: PRIME Z790-P WIFI D4-CSMItem #: asus-prime-z790-p-wifi-d4-csm-motherboard
৳32,800
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z790 Chipset
- 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
- ATX Form Factor; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Overview
ASUS PRIME Z790-P WIFI D4-CSM Motherboard comes with LGA 1700 socket and Z790 chipset. It supports 14th Gen,13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The motherboard has 4x DDR4 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. ASUS PRIME Z790-P WIFI D4-CSM also supports 3 x M.2 slots and 4 x SATA 6Gb/s ports so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot supports resource-intensive graphics cards, while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slots offer a wide range of utility cards. A variety of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 back panel ports and internal headers serve a wide range of peripherals, from low-powered devices like mouse, keyboards, and controllers to resource-intensive devices like external drives and storage arrays. The ASUS PRIME Z790-P WIFI D4-CSM 13th Gen Motherboard's embedded Bluetooth 5.2 technology can also be used to provide a cable-free experience for wireless devices. Connect to your wireless network using Wi-Fi 6 (802.11ax), or utilize the included 2.5 Gigabit Ethernet port if a cable connection is preferred.
Enhanced Power Solution
The ASUS PRIME Z790-P WIFI D4-CSM delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 14+1 DrMOS, ProCool sockets, alloy chokes, and robust capacitors.
Comprehensive Cooling
The 14th Gen motherboard has a large VRM heatsink for capacitors and chokes, as well as integrated M.2 heatsinks and backplates for greater thermal performance and throttling prevention. Fan Xpert 4 software and hybrid fan headers control fans and liquid cooling elements for increased cooling that may be customized.
Robust Connectivity
The ASUS PRIME Z790-P WIFI D4-CSM 13th Gen Motherboard provides reliable connectivity for your peripherals via the backplate and internal headers. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports support data transfer rates of up to 5 and 10 Gb/s, respectively, making them appropriate for webcams, microphones, and external storage devices. The USB-C 3.2 Gen 2x2 connector supports data transfer rates of up to 20 Gb/s for resource-intensive devices such as storage arrays and audio interfaces. With an inbuilt Thunderbolt 4 header, you may increase your connectivity and use high-speed networking that supports rapid transfer speeds and Power Delivery technologies.
Buy ASUS PRIME Z790-P WIFI D4-CSM ATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel Z790 Chipset
- RAM type
- 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
- Form factor
- ATX Form Factor; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
- Memory — Type
- DDR4
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- PRIME Z790-P WIFI D4-CSM
- Graphics — Graphics
- 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
- Expansion Slots — PCI
- Intel 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset; 3 x PCIe 4.0 x16 slots (support x4 mode); 1 x PCIe 3.0 x1 slot
Show all 28 specificationsShow fewer
- Highlights — Features
- 3 x M.2 slots, Wi-Fi 6, Bluetooth v5.2
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
- Basic Information — Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
- Connector & Ports — Audio
- 3 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; AI Suite 3; -TurboV EVO; -PC Cleaner; -DIGI+ VRM; ASUS CPU-Z; MyASUS; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-Slot; - Q-LED Core; ASUS Thermal Solution; - Flexible M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - ProCool; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
- Highlights — Supported RAM
- 4 x DIMM, Max. 128GB, DDR4
- Connector & Ports — USB (s)

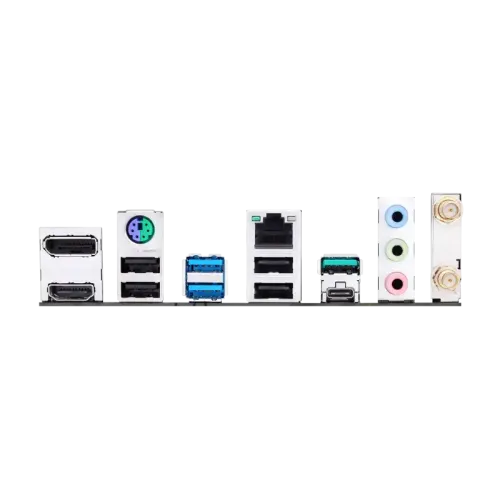

- Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 1 x USB 3.2 Gen 2 port (1 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); Front USB (Total 9 ports); 1 x USB 3.2 Gen 2 connector (supports USB Type-C®); 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Highlights — Graphics Output
- 1 x DisplayPort, 1 x HDMI
- Connector & Ports — LAN Port (s)
- 1 x Realtek 2.5Gb Ethernet
- Basic Information — Supported CPU
- Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); Intel Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2 connector (supports USB Type-C); 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x 20-5pin System Panel header; 1 x Thunderbolt (USB4) Header
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax); Supports 2.4/5GHz frequency band; Bluetooth v5.2;
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x SPI TPM header (14-1pin)
Compare with similar products

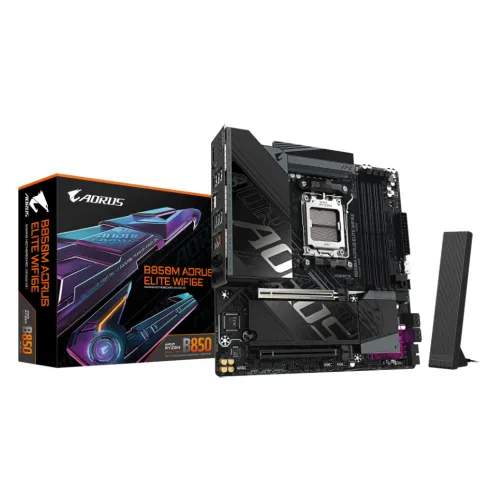

 This itemASUS PRIME Z790-P WIFI D4-CSM ATX Motherboard |  GIGABYTEGIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard |  GIGABYTEGIGABYTE B850M AORUS ELITE WIFI6E AMD AM5 DDR5 mATX Motherboard |  MSIMSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳32,800 | ৳32,800 | ৳32,900 | ৳33,000 |
| Availability | Out of stock | In stock | In stock | In stock |
| Brand | Asus | GIGABYTE | GIGABYTE | MSI |
| RAM type | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen 9000 Series Processors max. overclocking frequency:; 1DPC 1R Max speed up to 8200+ MT/s; 1DPC 2R Max speed up to 6400+ MT/s; 2DPC 1R Max speed up to 6400+ MT/s; 2DPC 2R Max speed up to 6000+ MT/s; ; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only |
| Form factor | ATX Form Factor; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm | ATX; 243.84mmx304.8mm |
| Chipset | Intel Z790 Chipset | Intel B860 Express Chipset | AMD B650 | AMD B850 |
| M.2 slots | — | 1 | 1 | 3 |
