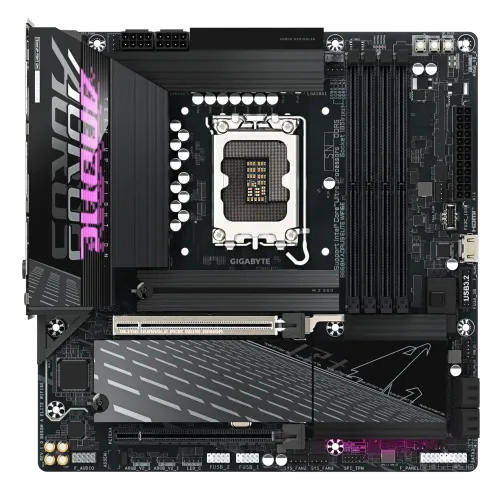

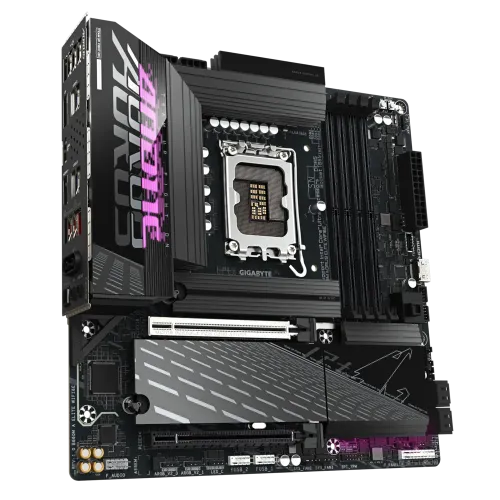

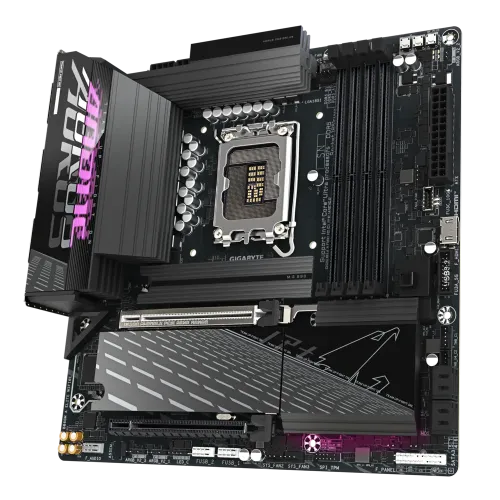

GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard

Name: GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard
Brand: GIGABYTE
Price: 32800 BDT
Availability: InStock

Model: B860M AORUS ELITE WIFI6EItem #: gigabyte-b860m-aorus-elite-wifi6e-motherboard

৳32,800~~৳33,500~~Save 2%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B860 Express Chipset
1 M.2 slots
Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules RAM type
Micro ATX Form Factor; 24.4cm x 24.4cm

Overview

The GIGABYTE B860M AORUS ELITE WIFI6E LGA1851 Micro ATX Motherboard is a powerful powerhouse that supports Intel Core Ultra Processors with its innovative LGA1851 socket and Intel B860 Express Chipset, resulting in remarkable speed and dependability. This GIGABYTE B860M AORUS ELITE WIFI6E Micro ATX Motherboard supports up to 256 GB of DDR5 memory over four DIMM slots at blazing-fast rates of up to 9200 MT/s OC. The motherboard also features dual-channel memory architecture, support for ECC and non-ECC unbuffered DIMMs, and Extreme Memory Profile XMP for effortless overclocking. Graphics performance stands out with quad-display support, featuring a USB4 Type-C port and DisplayPort 2.1 capable of resolutions up to 3840x2160 at 144Hz, alongside HDMI 2.1 for stunning 4K output at 60Hz. The audio experience is immersive, powered by a Realtek Audio CODEC with 7.1-channel High Definition Audio and S/PDIF Out. Connectivity on the GIGABYTE B860M AORUS ELITE WIFI6E Motherboard is unparalleled, boasting Realtek 2.5GbE LAN and either Intel Wi-Fi 6E AX211 or Realtek Wi-Fi 6E RTL8852CE depending on the revision, ensuring ultra-fast networking and seamless Bluetooth 5.3 support. Expandability is made easy with a PCIe 5.0 x16 slot for high-performance GPUs or NVMe SSDs, plus an additional PCIe 4.0 x16 slot x4 mode. Storage is versatile, featuring three M.2 slots, one supporting PCIe 5.0 x4 and two with PCIe 4.0 x4, along with four SATA 6Gb/s ports and RAID support. USB options are plentiful, with a USB4 Type-C port, two USB 3.2 Gen 2 Type-A ports, and numerous USB 3.2 Gen 1 and USB 2.0/1.1 ports across the back panel and internal headers. The GIGABYTE B860M AORUS ELITE WIFI6E also features advanced cooling support with multiple fan and pump headers, plus RGB Gen2 LED headers for customizable lighting. Onboard buttons for power, reset, and Q-Flash Plus make BIOS updates simple and convenient. Optimized for Windows 11, this feature-rich GIGABYTE Motherboard delivers exceptional performance, making the GIGABYTE B860M AORUS ELITE WIFI6E Motherboard the perfect choice for gamers, content creators, and tech enthusiasts looking for cutting-edge technology in a compact Micro ATX form factor.

Specifications

Chipset: Intel B860 Express Chipset
M.2 slots: 1
RAM type: Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
Form factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: B860M AORUS ELITE WIFI6E
Graphics — Graphics: ; Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)

Show all 29 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Highlights — Features: 3x M.2, Intel Wi-Fi 6E, Bluetooth 5.3
Memory — Maximum Memory: Up to 256 GB (64 GB single DIMM capacity)
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 2 x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Connector & Ports — Audio: 1 x front panel audio header; 2 x audio jacks;
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Connector & Ports — USB (s): CPU:; - 1 x USB4® USB Type-C® port on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 2 x USB 3.2 Gen 1 ports available through the internal USB header; Chipset+USB 3.2 Gen 1 Hub:; - 4 x USB 3.2 Gen 1 ports on the back panel; Chipset+2 USB 2.0 Hubs:; - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Highlights — Graphics Output: 2x HDMI, 1x DisplayPort
Connector & Ports — LAN Port (s): Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: Intel Core Ultra Processors; L3 cache
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB); - 4 x SATA 6Gb/s connectors

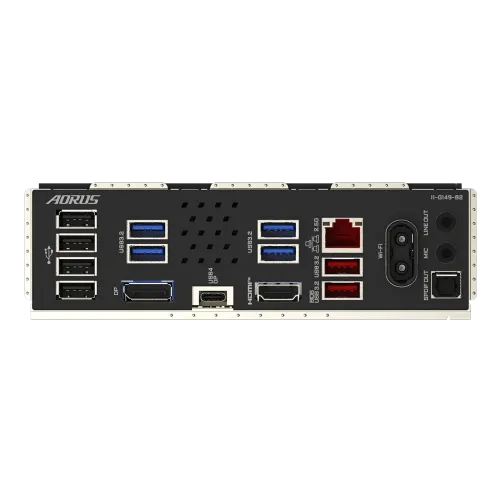

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x HDMI port*; 1 x power button; 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper; ; Back Panel Connectors:; 4 x USB 2.0/1.1 ports; 4 x USB 3.2 Gen 1 ports; 1 x DisplayPort*; 1 x USB4® USB Type-C® port (DisplayPort*); 1 x HDMI port*; 1 x RJ-45 port; 2 x USB 3.2 Gen 2 Type-A ports (red); 2 x antenna connectors (2T2R); 2 x audio jacks; 1 x optical S/PDIF Out connector
Warranty Information — Manufacturing Warranty: 3 Year Warranty
Connector & Ports — Wireless Communication module: Intel® Wi-Fi 6E AX211 (PCB rev. 1.0); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; ; Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1); - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11ax 160MHz wireless standard; (Actual data rate may vary depending on environment and equipment.)
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
