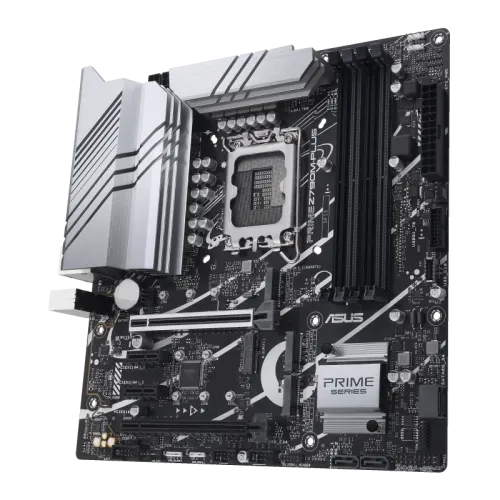

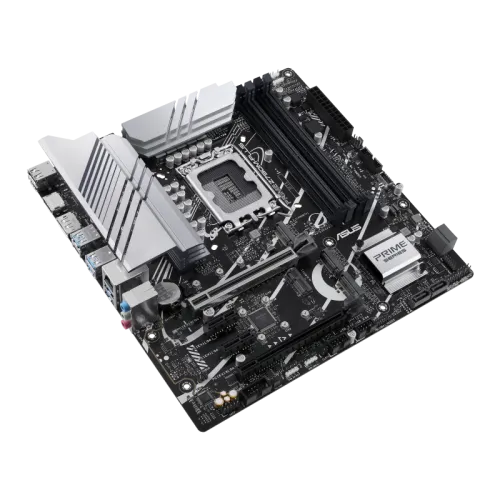

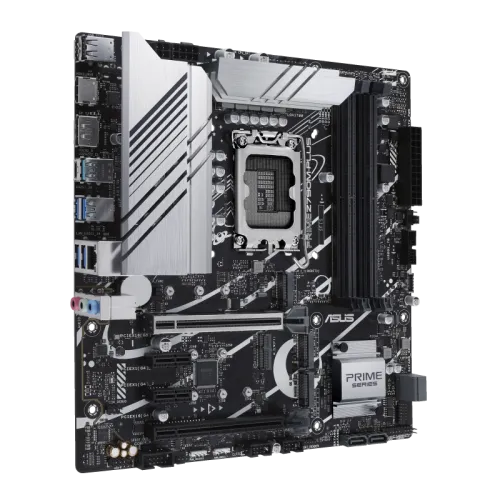

ASUS PRIME Z790M-PLUS-CSM DDR5 mATX Motherboard

Name: ASUS PRIME Z790M-PLUS-CSM DDR5 mATX Motherboard
Brand: Asus
Price: 32000 BDT
Availability: OutOfStock

Model: PRIME Z790M-PLUS-CSMItem #: asus-prime-z790m-plus-csm-motherboard

৳32,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z790 Chipset
3 M.2 slots
4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Overview

The ASUS PRIME Z790M-PLUS-CSM is a highly versatile microATX motherboard, meticulously designed to support the 14th, 13th, and 12th Gen Intel Processors utilizing the LGA1700 socket. This motherboard is engineered to unleash the full potential of Intel's latest processor lineup, providing a blend of power, cooling, and intelligent tuning options that cater to both casual users and dedicated PC DIY builders. Supporting up to 192GB of DDR5 RAM across its four DIMM slots, the PRIME Z790M-PLUS-CSM can handle demanding multitasking and intensive applications with ease. The motherboard supports RAM speeds up to 7200+ MHz when overclocked, ensuring high-performance memory operations. For graphics output, the motherboard is equipped with one HDMI port and one DisplayPort, offering flexible display connectivity options. The ASUS PRIME Z790M-PLUS-CSM includes an Intel 1Gb Ethernet port, ensuring reliable and fast wired network connections. The robust power design of the motherboard, combined with comprehensive cooling solutions, ensures stable and efficient operation even under heavy workloads. The ASUS Prime series is known for providing a range of performance optimizations through intuitive software and firmware. This includes intelligent tuning options that allow users to fine-tune system performance to meet their specific needs. Whether you're a gamer, content creator, or just building a high-performance PC, the ASUS PRIME Z790M-PLUS-CSM offers the features and reliability to build a powerful system.

Specifications

Chipset: Intel Z790 Chipset
M.2 slots: 3
RAM type: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
Form factor: mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: PRIME Z790M-PLUS-CSM
Graphics — Graphics: Supports max. 4K@60Hz as specified in DisplayPort 1.4.; Supports 4K@60Hz as specified in HDMI 2.1.

Show all 28 specifications

Expansion Slots — PCI: Intel Core Processors (14th & 13th & 12th Gen); 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 4.0 x1 slots
Highlights — Features: 1 x Intel 1Gb Ethernet
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI port
Connector & Ports — RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; AI Suite 3; - TurboV EVO; - DIGI+ VRM; - PC Cleaner; ASUS CPU-Z; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design; - Q-DIMM; - Q-LED Core; - Q-Slot; ASUS Thermal Solution; - VRM heatsink design; ASUS EZ DIY; - ProCool; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers
Highlights — Supported RAM: 4x DDR5, Max 192GB 7200+(O.C.)

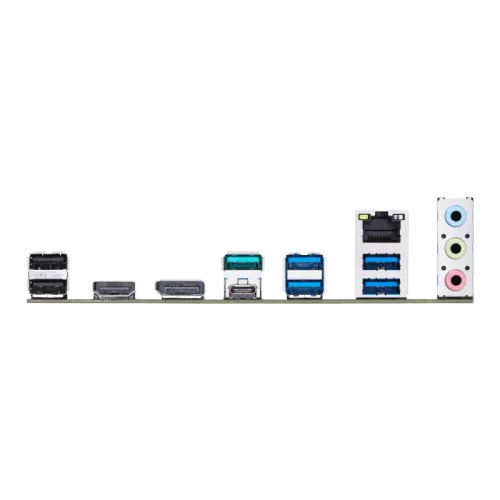

Connector & Ports — USB (s): Rear USB (Total 8 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 1 x USB 3.2 Gen 2 port (1 x Type-A); 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Highlights — Graphics Output: 1x HDMI port, 1x DisplayPort
Connector & Ports — LAN Port (s): 1 x Intel 1Gb Ethernet; ASUS LANGuard
Basic Information — Supported CPU: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel Z790 Chipset; M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports
Connector & Ports — Internal I/O Ports: Fan and cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin + 12V Power connector; 1 x 4-pin + 12V Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 1 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x M.2 slot (Key E); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4) header
Warranty Information — Manufacturing Warranty: 3 years warranty
Connector & Ports — Wireless Communication module: M.2 slot only (Key E, CNVi & PCIe); *Wi-Fi module is sold separately.

Compare with similar products

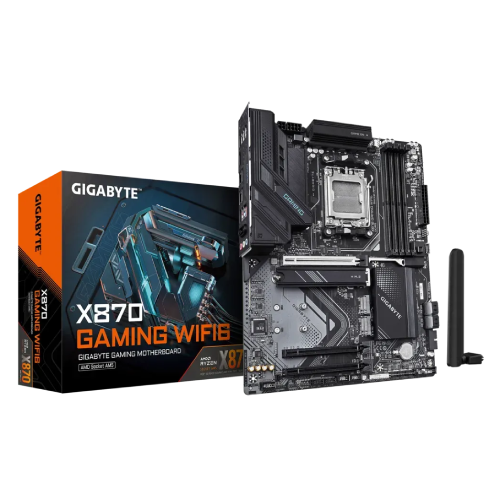

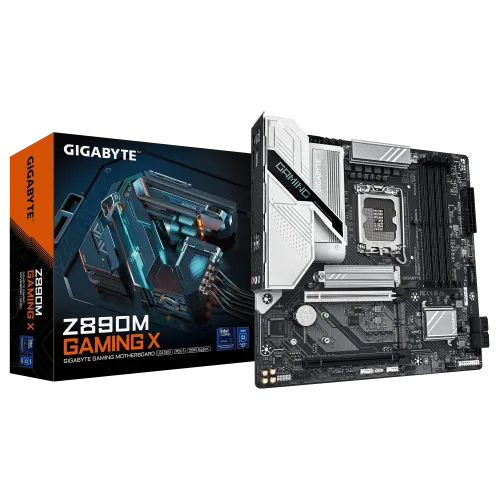

	This itemASUS PRIME Z790M-PLUS-CSM DDR5 mATX Motherboard	GIGABYTEGIGABYTE X870 GAMING WIFI6 DDR5 AMD AM5 ATX Motherboard	GIGABYTEGigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard	GIGABYTEGIGABYTE Z790 AORUS ELITE DDR4 ATX Motherboard
