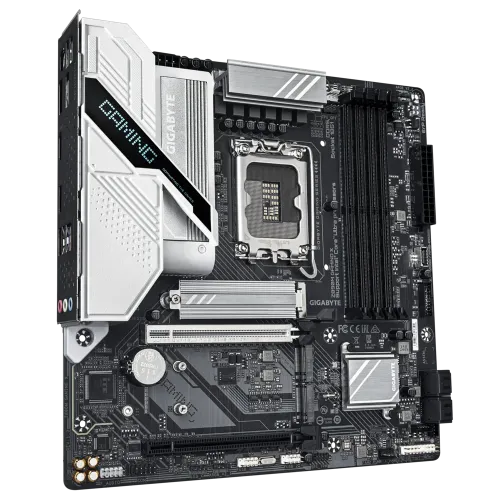

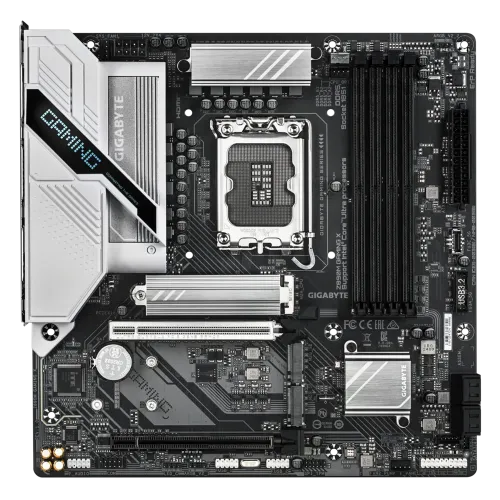

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
Model: Z890M GAMING XItem #: gigabyte-z890m-gaming-x-motherboard
৳31,900৳33,800Save 6%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z890 Express Chipset
- 1 M.2 slots
- Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module RAM type
- Micro ATX Form Factor; 24.4cm x 24.4cm
Overview
The Gigabyte Z890M GAMING X Micro ATX Motherboard is an Ultra Powerful motherboard designed to support Intel Core Ultra processors with an LGA1851 socket. Featuring the Intel Z890 Express Chipset, this Gigabyte Z890M GAMING X Motherboard offers exceptional performance and DDR5 memory support, with memory speeds ranging from 6400 MT/s to 9066 MT/s across 4 x DIMM slots, supporting up to 256 GB of system memory. It also supports dual-channel memory architecture, ECC and non-ECC un-buffered DIMMs, and Extreme Memory Profile (XMP) modules for high-speed memory configurations. For integrated graphics, the Gigabyte Z890M GAMING X motherboard includes HDMI 2.1 and DisplayPort 2.1 outputs, supporting triple-display setups at resolutions up to 4096x2304 @60 Hz with HDCP 2.3 compatibility. Powered by a Realtek Audio CODEC, it delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations and includes a Realtek® 2.5GbE LAN chip for fast, reliable networking. The Gigabyte Z890M GAMING X Motherboard also offers extensive expansion options, with a PCIe 5.0 x16 slot for graphics cards or NVMe SSDs, a PCIe 4.0 x16 slot running at x4 for additional expansion, and multiple M.2 connectors supporting PCIe 4.0/5.0 SSDs along with four SATA 6Gb/s connectors, supporting RAID for both NVMe and SATA devices. Featuring a wide range of internal and external I/O connectors, including USB 3.2 Gen 1, USB Type-C, fan headers for cooling, addressable RGB lighting, and Thunderbolt add-in card connectors, the Gigabyte Z890M GAMING X motherboard is highly customizable. It’s compatible with Windows 10 and 11 (64-bit) and uses a 256 Mbit flash BIOS with AMI UEFI BIOS, offering an intuitive interface for advanced configuration. The Micro ATX form factor (24.4cm x 24.4cm) makes the Gigabyte Z890M GAMING X Micro ATX Motherboard perfect for compact PC builds without compromising on performance. Whether for gaming or professional use, the Gigabyte Z890M GAMING X Motherboard delivers unbeatable features and future-proof capabilities, making it the ideal choice for building a high-performance gaming rig or workstation.
Specifications
- Chipset
- Intel Z890 Express Chipset
- M.2 slots
- 1
- RAM type
- Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module
- Form factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- Z890M GAMING X
- Graphics — Graphics
- Integrated Graphics Processor-Intel HD Graphics support:; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; ; ; - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 2.1 version.
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.; ; ; Chipset:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- Highlights — Features
- 3x M.2 slots, Realtek 2.5GbE LAN chip
- Memory — Maximum Memory
- up to 256 GB (64 GB single DIMM capacity) of system memory
- Basic Information — BIOS
- 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Connector & Ports — HDMI
- 1 x HDMI port
- Connector & Ports — RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Basic Information — Audio
- Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- Connector & Ports — Audio
- 3 x audio jacks; 1 x front panel audio header
- Others — Bundled Software
- Norton Internet Security (OEM version); LAN bandwidth management software
- Others — Special Features
- Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications.; ; ; Support for Q-Flash; Support for Smart Backup
- Highlights — Supported RAM
- 4x DDR5, Max 256GB, Supports Up to 9066(O.C)
- Highlights — Graphics Output
- 1 x HDMI v2.1, 2x DisplayPort v2.1
- Connector & Ports — LAN Port (s)
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Basic Information — Supported CPU
- LGA1851 socket: Support for Intel Core Ultra Processors; L3 cache varies with CPU
- Connector & Ports — Display Port (s)
- 2 x DisplayPort
- Connector & Ports — Supported Storage
- CPU:; - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB); - 4 x SATA 6Gb/s connectors
- Connector & Ports — Internal I/O Ports

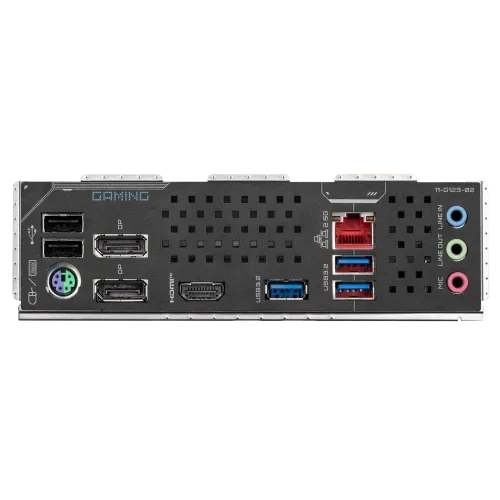

- 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 1 x system fan header; 1 x system fan/water cooling pump header; 2 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 3 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x HDMI port (Note); 2 x DisplayPorts (Note); 1 x RJ-45 port; 3 x audio jacks
- Warranty Information — Manufacturing Warranty
- 3 Year
- Connector & Ports — TPM (Trusted Platform Module )
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Compare with similar products
 This itemGigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard |  GIGABYTEGIGABYTE X870 GAMING WIFI6 DDR5 AMD AM5 ATX Motherboard |  AsusASUS PRIME Z790M-PLUS-CSM DDR5 mATX Motherboard |  GIGABYTEGIGABYTE Z790 AORUS ELITE DDR4 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳31,900 | ৳31,900 | ৳32,000 | ৳32,000 |
| Availability | In stock | In stock | Out of stock | Out of stock |
| Brand | GIGABYTE | GIGABYTE | Asus | GIGABYTE |
| M.2 slots | 1 | — | 3 | 1 |
| RAM type | Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; ; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules; 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Form factor | Micro ATX Form Factor; 24.4cm x 24.4cm | ATX Form Factor; 30.5cm x 24.4cm | mATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | Intel Z890 Express Chipset | AMD X870 | Intel Z790 Chipset | Intel Z790 Express Chipset |
