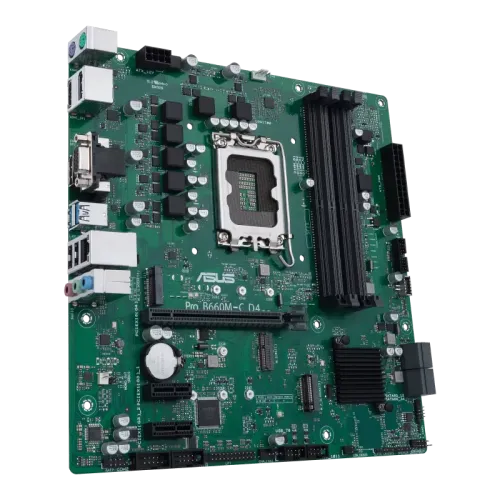

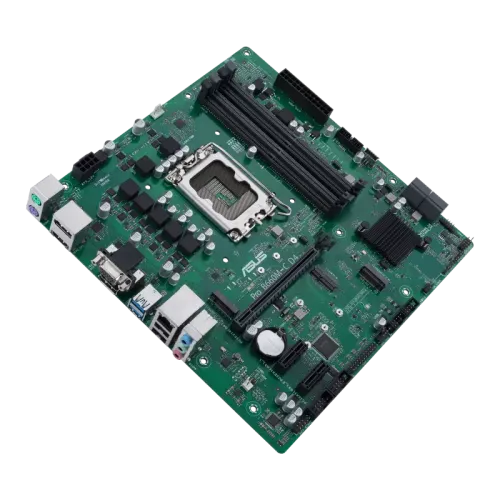

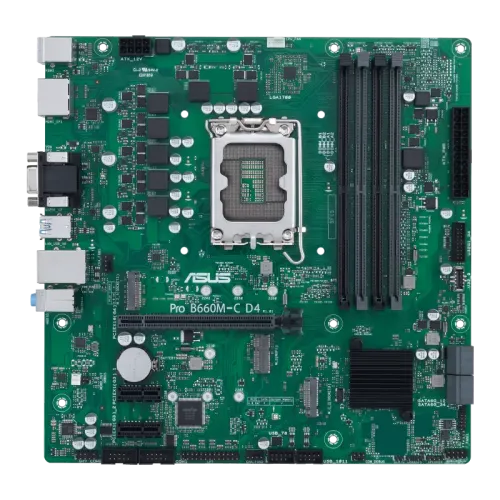

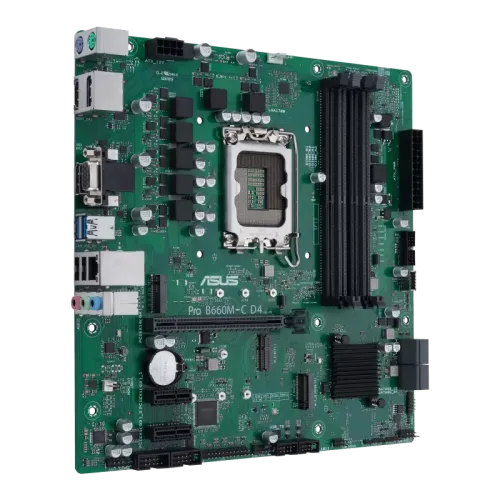

ASUS Pro B660M-C D4-CSM mATX Motherboard

Name: ASUS Pro B660M-C D4-CSM mATX Motherboard
Brand: Asus
Price: 16200 BDT
Availability: InStock

Model: Pro B660M-C D4-CSMItem #: asus-pro-b660m-c-d4-csm-motherboard

৳16,200~~৳16,900~~Save 4%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B660 Chipset
5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); Optimem RAM type
microATX; 24.4cm x 24.4cm Form factor

Overview

ASUS Pro B660M-C D4-CSM 14th, 13th & 12th Gen Motherboard provides enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing needs.

ASUS Corporate Stable Model

ASUS Pro B660M-C D4-CSM 12th Gen Motherboard is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Internationally Certified Business Motherboard

ASUS Pro B660M-C D4-CSM 12th Gen Motherboard are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

ASUS Trouble Shooting Solution

ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost-effective. The ASUS Pro B660M-C D4-CSM 12th Gen Motherboard comes with 3 years warranty.

Specifications

Chipset: Intel B660 Chipset
RAM type: 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); Optimem
Form factor: microATX; 24.4cm x 24.4cm
Memory — Type: DDR4
Memory — Slots: 4 x DIMM slots
Highlights — Model: Pro B660M-C D4-CSM
Graphics — Graphics: 2 x DisplayPort**; 1 x D-Sub port; 1 x HDMI port; ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots — PCI: Intel 12th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot; Intel B660 Chipset; 2 x PCIe 3.0 x1 slots

Show all 27 specifications

Highlights — Features: 1 x Intel 1Gb Ethernet
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 128Mb Flash ROM;
Connector & Ports — HDMI: 1 x HDMI
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback "; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Connector & Ports — Audio: 3 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; IT Management software supported; - ASUS Control Center Express(ACCE)
Others — Special Features: ASUS EZ DIY; - Box Headers; Bespoke Motherboard Design & Business Focused Features; - Q-LED Core; - ASUS Self Recovering BIOS; - ASUS Event Log; - ASUS Commercial BIOS kit; - Anti-Moisture; - 24/7 Reliability; - Overcurrent Protection; TPM IC onboard
Highlights — Supported RAM: 4x DDR4, Max 128GB

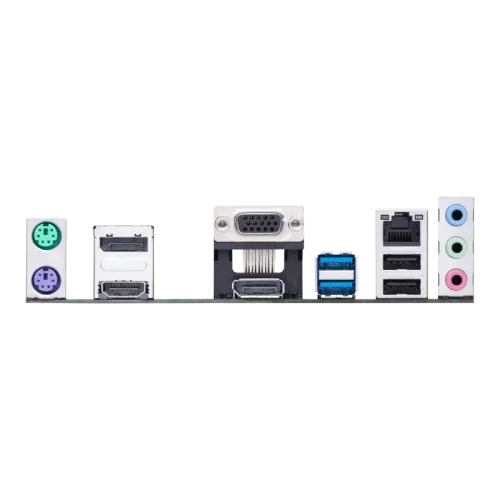

Connector & Ports — USB (s): Rear USB (Total 4 ports); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 1 connector (suppports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Highlights — Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI
Connector & Ports — D-Sub (s): 1 x D-Sub
Connector & Ports — LAN Port (s): 1 x Intel 1Gb Ethernet; ASUS LANGuard
Basic Information — Supported CPU: Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Connector & Ports — Display Port (s): 2 x DisplayPort
Connector & Ports — Supported Storage: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Intel 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Intel 12th Gen processors support PCIe 4.0 x4 mode; Intel B660 Chipset**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.; ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Connector & Ports — Internal I/O Ports: Fan and cooling related; 1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers; ; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; ; Storage related; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; ; USB; 1 x USB 3.2 Gen 1 connector (suppports USB Type-C); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; ; Miscellaneous; 1 x Clear CMOS header; 1 x Chassis Intrude header; 2 x COM Port headers; 1 x Front Panel Audio header (AAFP); 1 x COM debug header; 1 x LPT header; 1 x Mono-out header(with Amp IC); 1 x M.2 slot (Key E); 1 x SMBUS header; 1 x Speaker header; 1 x 10-1 pin System Panel header
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — Wireless Communication module: M.2 slot only (Key E, CNVi & PCIe); *Wi-Fi module is sold separately.
