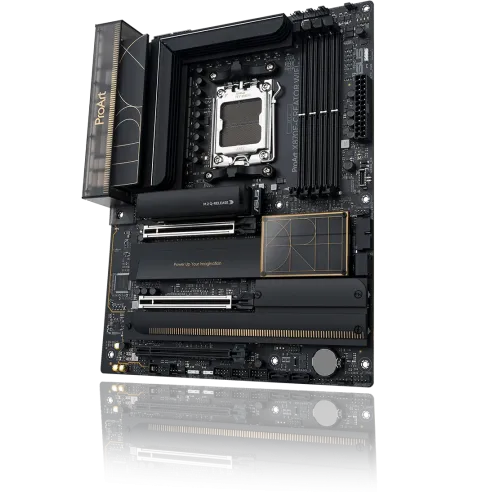

ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard

Name: ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard
Brand: Asus
Price: 77500 BDT
Availability: InStock

Model: ProArt X870E-CREATOR WiFiItem #: asus-proart-x870e-creator-wifi-motherboard

৳77,500~~৳84,090~~Save 8%

In stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD B650 Chipset
3 M.2 slots
7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II RAM type
ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm );

Overview

The ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard is meticulously crafted to meet the high demands of creative professionals and enthusiasts, offering a robust platform for AMD Ryzen 9000, 8000, and 7000 series processors with its AMD X870 chipset and AM5 socket. This motherboard supports up to 192GB of DDR5 RAM, ensuring exceptional speed and capacity for intensive multitasking and creative workflows. It provides extensive storage options with four M.2 slots and four SATA 6Gb/s ports, catering to all your data needs. Connectivity is a highlight, featuring dual USB4 ports, 10G and 2.5G Ethernet, and WiFi 7 for ultra-fast data transfer and seamless internet connectivity. The inclusion of PCIe 5.0 slots offers high-speed expansion options for graphics cards and other peripherals. Advanced cooling solutions, such as VRM heatsinks and multiple fan headers, maintain optimal performance under heavy loads. The ProArt Creator Hub allows intuitive control over system settings, enhancing productivity. With a robust 16+2+2 power stage design, the motherboard ensures stable power delivery, ideal for overclocking and demanding applications. Customizable Aura Sync RGB lighting adds a personalized touch to your creative workspace. ASUS AI technologies, including AI overclocking, AI cooling, and AI networking, ensure peak performance with minimal effort. Combining cutting-edge technology with ASUS's renowned reliability and innovation, the ASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard is an essential component for any high-performance creative workstation, empowering professionals to bring their creative visions to life.

Specifications

Chipset: AMD B650
M.2 slots: 3
RAM type: 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II
Form factor: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm );
Memory — Type: DDR5
Memory — Slots: 4 x DIMM
Highlights — Model: ProArt X870E-CREATOR WiFi
Graphics — Graphics: 1 x HDMITM port**; 1 x USB Type-C port supports DisplayPort output***; * Graphics specifications may vary between CPU types.; ** Supports 4K@60Hz as specified in HDMI 2.1. ; *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.; 1 x HDMI port**; 1 x USB Type-C port supports DisplayPort output***; * Graphics specifications may vary between CPU types.; ** Supports 4K@60Hz as specified in HDMI 2.1. ; *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.

Show all 26 specifications

Expansion Slots — PCI: AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors; 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes); AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot; * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).; ** Specifications vary by CPU types.; *** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled.; - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.; AMD Ryzen 7000 Series Desktop Processors; 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes); AMD B650 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot
Highlights — Features: 1 x Marvell AQtion 10Gb Ethernet, 1 x Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4
Memory — Maximum Memory: 192GB
Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI
Connector & Ports — RAID: AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Basic Information — Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Power pre-regulator reduces power input noise to ensure consistent performance; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; - Unique de-pop circuit
Connector & Ports — Audio: 5 x Audio jacks
Others — Bundled Software: ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4; - Power Saving; - Two-Way AI Noise Cancellation; AI Suite 3; - TurboV EVO; - DIGI+ VRM; - PC Cleaner; ASUS CPU-Z; IT Management software supported; - ASUS Control Center Express(ACCE); CreationFirst; Norton Anti-virus software (Free Trial version); ProArt Creator Hub; WinRAR; UEFI BIOS; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode
Others — Special Features: ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - Enhanced DRAM Overcurrent Protection; - ESD Guards; - LANGuard; - Overvoltage Protection; - Safeslot; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsinks; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - ProCool; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; AURA Sync; - Aura RGB header; - Addressable Gen 2 headers; Bespoke Motherboard Design & Business Focused Features; - 24/7 Reliability; - Overcurrent Protection; Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support; - Support: up to 60W charging*; - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A; - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS; * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
Connector & Ports — USB (s): Rear USB (Total 7 ports); 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ); 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C); 2 x USB 2.0 ports (2 x Type-A); Front USB (Total 7 ports); 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Highlights — Graphics Output: 1 x HDMI , 2x USB4 (40Gbps)
Connector & Ports — LAN Port (s): 1 x Realtek 2.5Gb Ethernet; 1 x Realtek 1Gb Ethernet; ASUS LANGuard
Basic Information — Supported CPU: AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors
Connector & Ports — Display Port (s): 1 x USB Type-C, shared with DisplayPort graphic output
Connector & Ports — Supported Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); AMD Ryzen 8000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**; AMD B650 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***; 4 x SATA 6Gb/s ports; *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.; ** Specifications vary by CPU types.; *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.; Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 7000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); AMD B650 Chipset; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**; 4 x SATA 6Gb/s ports; ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.

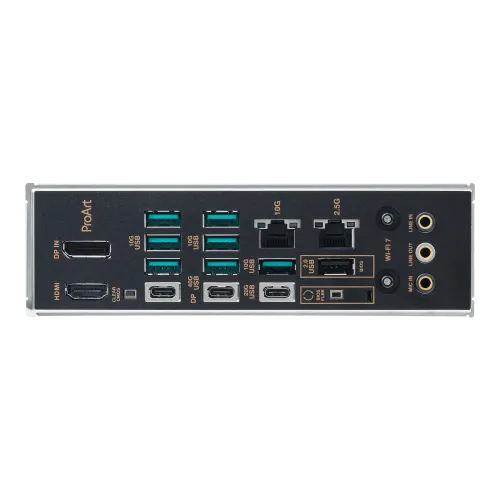

Connector & Ports — Internal I/O Ports: Internal I/O Connectors; I/O ConnectorsFan and Cooling related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 1 x 6-pin PCIe Power connector; Storage related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x M.2 slot (Key E); 1 x 20-5 pin System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt (USB4) header; ; Back Panel I/O Ports; 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ); 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort (Input only); 1 x HDMI® port; 1 x Realtek 2.5Gb Ethernet; 1 x Realtek 1Gb Ethernet; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack button
Warranty Information — Manufacturing Warranty: 3 Years
