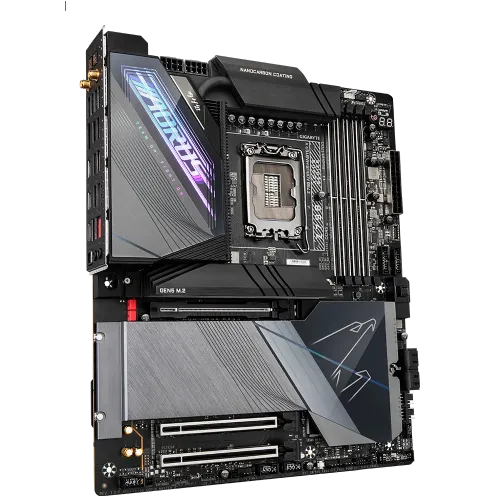

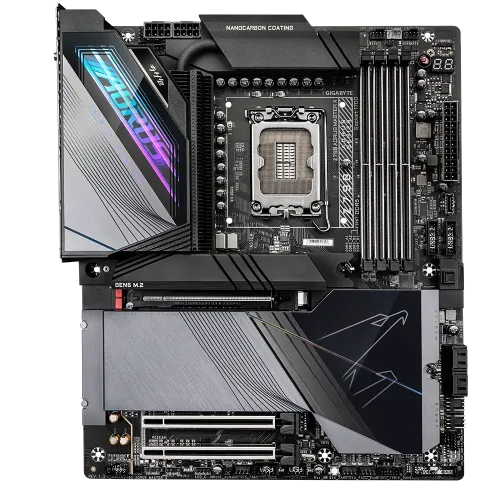

GIGABYTE Z790 AORUS MASTER X E-ATX Motherboard

Name: GIGABYTE Z790 AORUS MASTER X E-ATX Motherboard
Brand: GIGABYTE
Price: 77000 BDT
Availability: OutOfStock

Model: Z790 AORUS MASTER XItem #: gigabyte-z790-aorus-master-x-e-atx-motherboard

৳77,000

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel Z790 Express Chipset
Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules RAM type
E-ATX Form Factor; 30.5cm x 26.0cm

Overview

The GIGABYTE Z790 AORUS MASTER X E-ATX Motherboard is a high-end motherboard built for gamers and enthusiasts who want exceptional performance. This motherboard is compatible with Intel Core 14th and 13th generation processors, guaranteeing that it is ready for Intel's latest and best CPUs. The motherboard features a strong 20+1+2 power phase architecture that ensures optimal power supply to your CPU for optimum performance and stability. With 4 DIMM slots and XMP 3.0 memory module compatibility, you may experience lightning-fast memory speeds and enough capacity for multitasking and gaming. This motherboard has a PCIe 5.0 x16 slot with 10X strength for your graphics card, which provides enough bandwidth for the newest GPUs while also future-proofing your system. M.2 heatsinks with screwless designs make it simple to install and cool your M.2 NVMe SSDs, assuring maximum performance. The PCIe 5.0 x16 slot and M.2 slots have a quick-release design that makes hardware installation and upgrades easier. The user-centered BIOS interface provides a straightforward user experience with a Quick Access option, allowing users to adjust and optimize their system settings more easily. You may experience very high storage speeds for your games, programs, and data with five M.2 slots, including one PCIe 5.0 x4 slot. The VRM Thermal Armor Fins-Array and M.2 Thermal Guard XL assist in heat dissipation, keeping your system cool and stable even during strenuous workloads. The GIGABYTE Z790 AORUS MASTER X Motherboard has a 10GbE LAN and Wi-Fi 7, as well as an ultra-high gain antenna, for lightning-fast and dependable network access. You have plenty of connectivity choices for all your peripherals and devices with DisplayPort, a front USB-C connector with 10Gb/s transfer rates, and front and twin rear USB-C ports with 20Gb/s transfer speeds. The audio capabilities of the motherboard are excellent, with the ALC1220 audio codec and a back ESS SABRE Hi-Fi 9118 DAC providing high-quality sound for gaming and entertainment.

Specifications

Chipset: Intel Z790 Express Chipset
RAM type: Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Form factor: E-ATX Form Factor; 30.5cm x 26.0cm
Memory — Type: DDR5
Memory — Slots: 4 x DIMM sockets
Highlights — Model: Z790 AORUS MASTER X
Graphics — Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3
Expansion Slots — PCI: CPU:; 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.; * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; Chipset:; 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4); 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1); Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

Show all 27 specifications

Highlights — Features: Marvell AQtion 10GbE LAN & Intel Wi-Fi 7
Memory — Maximum Memory: 128GB (32 GB single DIMM capacity)
Basic Information — BIOS: 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — RAID: RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek ALC1220-VB CODEC; * The front panel line out jack supports DSD audio.; ESS ES9118 DAC chip; Support for DTS:X Ultra; High Definition Audio; 2/4/5.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: 2 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.; Support for Q-Flash; Support for Q-Flash Plus; Support for Smart Backup
Highlights — Supported RAM: 4 x DDR5 DIMMs, up to 8266(O.C)

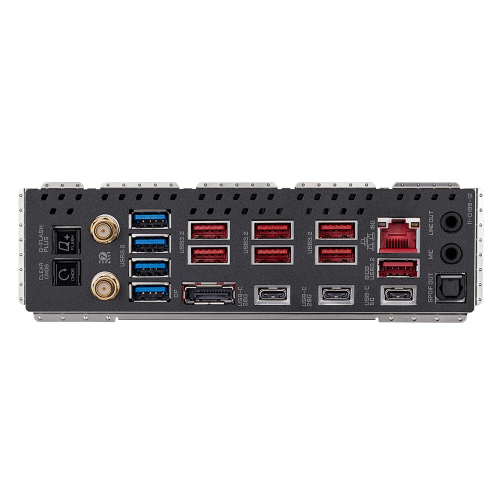

Connector & Ports — USB (s): Chipset:; 3 x USB Type-C ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header); Chipset+2 USB 3.2 Gen 2 Hubs:; 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support; 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; Chipset+2 USB 3.2 Gen 1 Hubs:; 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers); Chipset+USB 2.0 Hub:; 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1 x DisplayPort
Connector & Ports — LAN Port (s): Marvell AQtion AQC113C 10GbE LAN chip; (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with CPU
Connector & Ports — Display Port (s): 1 x DisplayPort
Connector & Ports — Supported Storage: CPU:; 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU); 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset:; 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB); 4 x SATA 6Gb/s connectors
Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 4 x system fan headers; 4 x system fan/water cooling pump headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 5 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x noise detection header; 2 x Thunderbolt add-in card connectors; 1 x power button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper; 2 x temperature sensor headers; Voltage Measurement Points
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — Wireless Communication module: Wireless Communication module; Intel Killer Wi-Fi 6E AX1690; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Compare with similar products

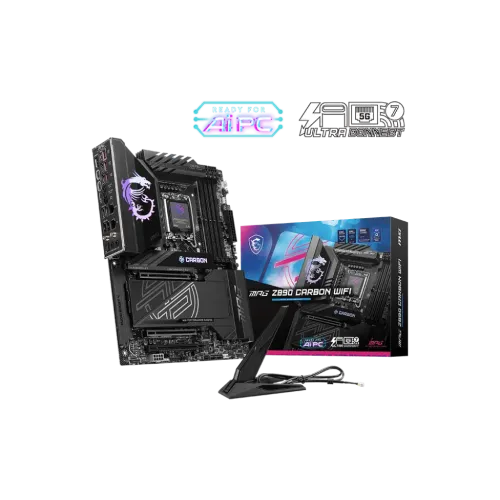

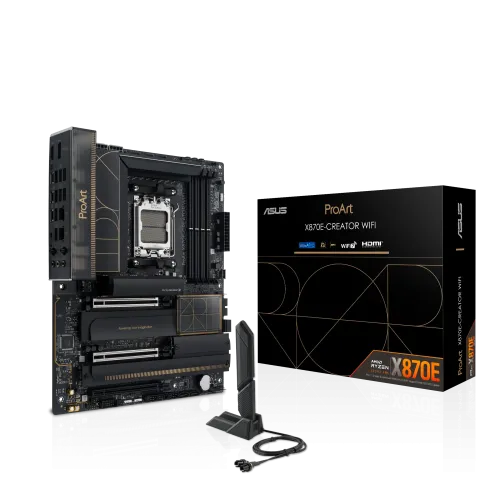

	This itemGIGABYTE Z790 AORUS MASTER X E-ATX Motherboard	AsusASUS ROG STRIX Z890-E GAMING WIFI LGA1851 ATX Motherboard	AsusASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard	MSIMSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard
