Asus ProArt Z790-CREATOR WIFI ATX Motherboard
Model: ProArt Z790-CREATOR WIFIItem #: asus-proart-z790-creator-wifi-motherboard
৳73,000
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z790 Chipset
- 4 M.2 slots
- 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC); / 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Overview
The ASUS ProArt Z790-CREATOR WIFI LGA 1700 ATX Motherboard is designed for experienced builders who want to make use of the power of Intel's 14th 13th and 12th Generation CPUs and gaming-focused components. With an Intel Z790 socket, you may easily install a wide choice of 12th and 14th Generation CPUs. Four DDR5 DIMM slots provide you with the increased speed and performance you need to streamline your production as well as edit and relive your favorite in-game moments. You may add an array of storage disks using the eight SATA and four M.2 connectors, resulting in a vast library for your media assets. Put graphics and utility cards in two PCIe 5.0 x16 slots and one PCIe 4.0 x16 (in x4 mode). With USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 connectivity, you may plug in your favorite peripherals such as keyboards, mice, audio interfaces, and more. Bluetooth 5.3 allows you to utilize wireless devices like keyboards, mice, and headphones. Dual RJ45 ports offer 2.5 and 10 Gigabit Ethernet speeds, allowing you to use teaming features to swiftly upload and download huge data. You may also connect to your network without a cable connection by using Wi-Fi 6E (802.11ax) wireless networking.
Power Design
The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard A 16+1 paired power solution, 8+4 ProCool sockets, and alloy chokes with durable capacitors provide consistent electrical loads perfect for resource-hungry games.
M.2 PCIe 4.0 Storage
The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard has M.2 PCIe 4.0 technology, which allows you to load programs quicker from your M.2 SSD, allowing you to get into your games and apps faster.
Thunderbolt 4
The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard Dual Thunderbolt 4 ports give you up to 40 Gb/s data transfer speeds as well as DisplayPort and Power Delivery capabilities, giving you a one-cable solution to connect external storage arrays, displays, and more.
Connectivity
The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard has USB-C 3.2 Gen 2 and Gen 2x2 interfaces provide you with enhanced data transfer speeds up to 10 and 20 Gb/s, respectively, allowing you to utilize a wide range of peripherals such as audio interfaces, external storage solutions, and more. With front panel support, the ProArt incorporates internal headers for USB-A and USB-C 3.2 Gen 1 devices, giving you up to 5 Gb/s data transfer speeds for quick file management.
AI Noise Cancelation
The 14th Gen Motherboard is Two-way AI Noise Cancelation reduces background noise from the microphone and audio output for clear communication in games and conferences.
Comprehensive Cooling
Enlarged VRM and PCH heat sinks, M.2 heat sinks, hybrid fan headers, and Fan Xpert 2+ utility in Armoury Crate software allow you to optimize cooling capabilities whether you prefer fan or AiO liquid cooling.
Aura Sync
The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard The stylish edge lighting design, addressable RGB headers, and RGB strip header enable you to add a splash of color to your system, transforming it into the focal point of your gaming area.
Buy Asus ProArt Z790-CREATOR WIFI ATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel Z790 Chipset
- M.2 slots
- 4
- RAM type
- 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC); / 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
- Form factor
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- ProArt Z790-CREATOR WIFI
- Graphics — Graphics
- 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Show all 27 specificationsShow fewer
- Expansion Slots — PCI
- Intel 13th & 12th Gen Processors; 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes); Intel Z790 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode)
- Highlights — Features
- 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6E
- Memory — Maximum Memory
- Max. 128GB
- Basic Information — BIOS
- 256 Mb
- Connector & Ports — HDMI
- 1 x HDMI port
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
- Basic Information — Audio
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback; - Premium audio capacitors; - Dedicated audio PCB layers; - Audio cover; - Unique de-pop circuit
- Connector & Ports — Audio
- 5 x Audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - AURA Creator; - AURA Sync; - Fan Xpert 4 with AI Cooling II; - Two-Way AI Noise Cancelation; - Power Saving; AI Suite 3; - Easy Optimization with AI Overclocking; - TPU; - DIGI+ Power Control; - Turbo app; - PC Cleaner; ASUS CPU-Z; IT Management software supported; - ASUS Control Center Express(ACCE); ProArt Creator Hub; CreationFirst; MyAsus; Norton 360 Deluxe (60 Days Free Trial); WinRAR; UEFI BIOS; AI Overclocking Guide; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash 3; - ASUS UEFI BIOS EZ Mode; FlexKey; MemTest86
- Others — Special Features
- ASUS 5X PROTECTION III; - DIGI+ VRM (- Digital power design with DrMOS); - Enhanced DRAM Overcurrent Protection; - ESD Guards; - LANGuard; - Overvoltage Protection; - SafeSlot; - Stainless-Steel Back I/O; ASUS Q-Design; - M.2 Q-Latch; - Q-Connector; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - Box Headers; - ProCool II; - Pre-mounted I/O shield; AURA Sync; - AURA RGB header(s); - Addressable Gen 2 header(s)

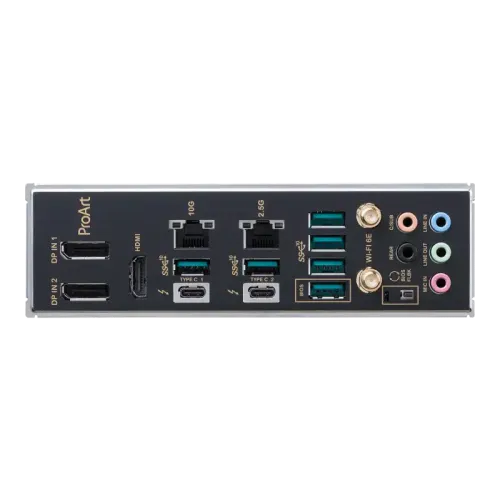

- Connector & Ports — USB (s)
- Rear USB (Total 8 ports); 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support; 6 x USB 3.2 Gen 2 port(s) (6 x Type-A); ; Front USB (Total 7 ports); 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C with 60W PD 3.0 / QC 4+); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
- Highlights — Graphics Output
- Intel Thunderbolt 4 ports, HDMI
- Connector & Ports — LAN Port (s)
- 1 x Marvell AQtion 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0; and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 2 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); Intel Z790 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 8 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Internal I/O Connectors; Fan and Cooling related; 1 x 4-pin CPU Fan header(s); 1 x 4-pin CPU OPT Fan header(s); 1 x 4-pin AIO Pump header(s); 5 x 4-pin Chassis Fan header(s); Power related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 1 x 6-pin +12V Power connector; Storage related; 4 x M.2 slots (Key M); 8 x SATA 6Gb/s ports; USB; 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C); 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 header(s); 1 x AURA RGB header(s); 1 x Clear CMOS header; 1 x COM Port header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (AAFP); 1 x M.2 slot (Key E); 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thermal Sensor header; Back Panel I/O Ports; 2 x Thunderbolt 4 USB Type-C port(s); 6 x USB 3.2 Gen 2 port(s) (6 x Type-A); 2 x DisplayPort (Input only); 1 x HDMI port; 1 x ASUS Wi-Fi Module; 1 x Marvell AQtion 10Gb Ethernet port; 1 x Intel 2.5Gb Ethernet port; 5 x Audio jacks; 1 x BIOS FlashBack button
- Warranty Information — Manufacturing Warranty
- 3 years warranty
- Connector & Ports — Wireless Communication module
- Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax); Supports 2.4/5/6GHz frequency band; Bluetooth v5.3
Compare with similar products
 This itemAsus ProArt Z790-CREATOR WIFI ATX Motherboard |  AsusAsus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Motherboard |  AsusASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard |  AsusASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳73,000 | ৳71,500 | ৳71,500 | ৳73,000 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | Asus | Asus | Asus | Asus |
| M.2 slots | 4 | 4 | — | 5 |
| RAM type | 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC); / 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | Supports up to 8000+MT/s(OC) with Ryzen™; 9000 & 8000 & 7000 Series Processors; Dual channel memory architecture; Supports AMD Extended Profiles for; Overclocking (EXPO™); Supports DIMM Fit / DIMM Fit Pro; ASUS Enhanced Memory Profile (AEMP) | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800; Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; OptiMem II; ASUS Enhanced Memory Profile II (AEMP II) |
| Form factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ); | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Chipset | Intel Z790 Chipset | AMD X870E | Intel Z790 Chipset | Intel Z790 Chipset |
