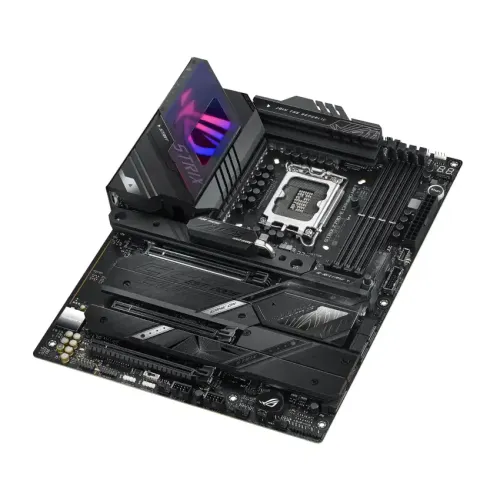

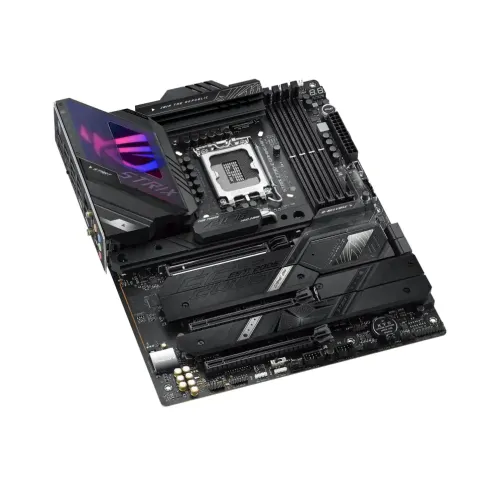

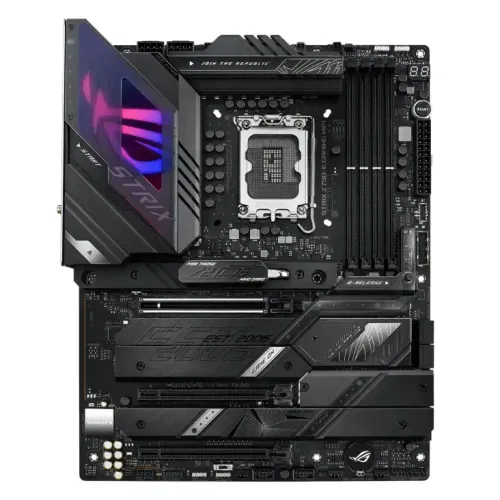

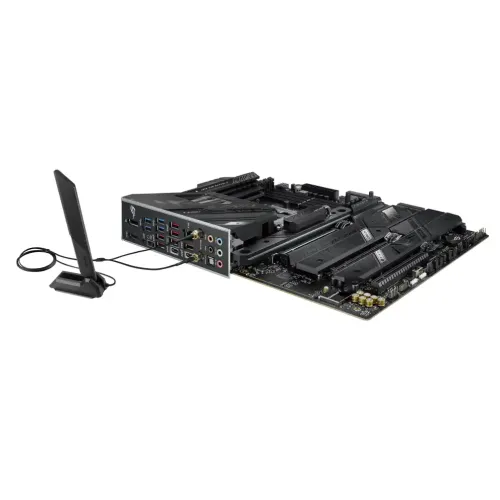

ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard
Model: ROG STRIX Z790-E GAMING WIFIItem #: asus-rog-strix-z790-e-gaming-wifi-motherboard
৳71,500
Out of stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z790 Chipset
- 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800; Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II RAM type
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm );
Overview
ASUS ROG STRIX Z790-E GAMING WIFI 14th Gen Motherboard features LGA 1700 socket and Z790 chipset which supports Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. This motherboard comes with 4 x DIMM that supports DDR5 Dual-Channel RAM up to 128GB of memory with speeds up to 7200 MHz when overclocked. This provides you with increased multitasking and rendering capabilities. It comes with 5x M.2 PCIe and four SATA III storage interfaces allow you to combine an array of storage drives to build a massive gaming library. It also has a single PCIe 5.0 x16 slot that supports resource-intensive graphics cards, while two PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slots support a variety of utility cards. Several USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 interfaces are accessible via the back panel and internal headers, providing ample support for peripherals such as mice, keyboards, and controllers as well as resource-demanding devices such as external drives. Bluetooth 5.2 technology can be used by wireless devices to provide a reliable cable-free experience. Use Wi-Fi 6E (802.11ax) to connect to your wireless network, or the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection.
AI Overclocking
The ASUS ROG STRIX Z790-E GAMING WIFI can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without sacrificing thermal capabilities. AI noise cancellation is an audio-focused utility that reduces background noise, allowing others to hear you more clearly when playing team-based games or delivering presentations remotely. GameFirst VI is an artificial intelligence networking tool that prioritizes and optimizes your network connection for smoother online gameplay, which is essential for competitive online titles.
Enhanced Power Solution
ASUS ROG STRIX Z790-E GAMING WIFI delivers stable power throughout the entire motherboard, maintaining electrical volume whether performing simple tasks or operating at full power during resource-demanding processes, thanks to 16+1 70A power stages with ProCool II connectors, alloy chokes, and durable capacitors.
Comprehensive Cooling
The 14th Gen Motherboard incorporates a large VRM heatsink for capacitors and chokes, as well as integrated double-sided M.2 heatsinks and a unique PCH fanless heatsink, to ensure your system remains cool under heavy loads, delivering better thermal performance while preventing throttling. Fan Xpert 4 software and hybrid fan headers control fans and liquid pump elements for enhanced cooling that can be customized.
ROG SupremeFX 7.1 Surround Sound High Definition Audio
Immerse yourself in your favorite games with the help of high-fidelity audio powered by the Savitech SV3H712 amplifier and ROG SupremeFX 7.1-channel ALC4080 codec. Premium capacitors and audio jacks with gold plating enhance audio conductivity for a dependable signal and reduce static and other interference.
Leading Connectivity
The ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard provides reliable connectivity for your peripherals between the internal headers and the backplate. Webcams, microphones, and external storage drives can transfer data at speeds of up to 5 and 10 Gb/s through USB-A and USB-C 3.2 Gen 1 and Gen 2 ports, respectively. For devices that require a lot of resources, like storage arrays and audio interfaces, a USB-C 3.2 Gen 2x2 port offers up to 20 Gb/s data transfer speed. In addition to facilitating data transfer, a front panel USB-C 3.2 Gen 2x2 port provides up to 30W Power Delivery to charge and support peripherals that require a lot of resources. With an internal Thunderbolt 4 header, you can increase your connectivity and take advantage of high-speed connectivity that supports quick transfer rates and Power Delivery technologies.
Buy ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard from the best Motherboard Shop in BD
Specifications
- Chipset
- Intel Z790 Chipset
- RAM type
- 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800; Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II
- Form factor
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm );
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM
- Highlights — Model
- ROG STRIX Z790-E GAMING WIFI
- Graphics — Graphics
- 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4.); 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
- Expansion Slots — PCI
- Intel 14th, 13th & 12th Gen Processors; 1 x PCIe 5.0 x16 slot; ; Intel Z790 Chipset; 2 x PCIe 4.0 x16 slots (support x4 mode); 1 x PCIe 3.0 x1 slot
Show all 27 specificationsShow fewer
- Highlights — Features
- 5 x M.2 slots, Wi-Fi 6E, Bluetooth v5.3
- Memory — Maximum Memory
- 128GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI port
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.;
- Basic Information — Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080; - Impedance sense for front and rear headphone outputs; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; - Supports up to 32-Bit/384 kHz playback; Audio Features ; - SupremeFX Shielding Technology; - Savitech SV3H712 AMP; - Gold-plated audio jacks ; - Rear optical S/PDIF out port; - Premium audio capacitors; - Audio cover
- Connector & Ports — Audio
- 5 x Gold-plated audio jacks
- Others — Bundled Software
- ROG Exclusive Software; - GameFirst VI; - ROG CPU-Z; - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion; - Sonic Radar III; - DTS Sound Unbound ; ; ASUS Exclusive Software; Armoury Crate; - AIDA64 Extreme (60 days free trial) ; - Aura Creator- Aura Sync; - Fan Xpert 4 (with AI Cooling II); - Power Saving; - Two-Way AI Noise Cancellation; AI Suite 3; - Easy Optimization with AI Overclocking ; - TPU; - DIGI+ VRM; - Turbo app; - PC Cleaner; MyAsus; Norton 360 for Gamers; WinRAR; ; UEFI BIOS; AI Overclocking Guide; ASUS EZ DIY ; - ASUS CrashFree BIOS 3 ; - ASUS EZ Flash 3 ; - ASUS UEFI BIOS EZ Mode; FlexKey; MemTest86
- Others — Special Features
- Extreme Engine Digi+; - 5K Black Metallic Capacitors ; ; ASUS Q-Design ; - M.2 Q-Latch; - PCIe Slot Q-Release; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - VRM heatsink design; ; ASUS EZ DIY; - BIOS FlashBack button; - BIOS FlashBack LED; - Clear CMOS button; - CPU Socket lever protector; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; ; Aura Sync; - Aura RGB header; - Addressable Gen 2 headers; ; Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support; - Support: up to 30W charging; - Output: 5/9V max. 3A, 12V max. 2.5A; - Compatible with PD3.0
- Highlights — Supported RAM
- 4 x DIMM, Max. 128GB, DDR5 7800+(OC)
- Connector & Ports — USB (s)
- Rear USB (Total 12 ports); 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C); 4 x USB 3.2 Gen 1 ports (4 x Type-A); Front USB (Total 9 ports); 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge); 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Highlights — Graphics Output
- 1 x DisplayPort, 1 x HDMI port
- Connector & Ports — LAN Port (s)
- 1 x Intel 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 1 x DisplayPort
- Connector & Ports — Supported Storage
- Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel Z790 Chipset; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes); 4 x SATA 6Gb/s ports
- Connector & Ports — Internal I/O Ports
- Fan and Cooling related ; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers ; ; Power related ; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; ; Storage related ; 5 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; ; USB ; 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge); 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; ; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Alternative PCIe Mode Switch; 1 x AURA RGB header; 1 x CPU Over Voltage jumper; 1 x Front Panel Audio header (AAFP) ; 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Start button; 1 x Thermal Sensor header; 1 x Thunderbolt™ (USB4) header
- Warranty Information — Manufacturing Warranty
- 3 years
- Connector & Ports — Wireless Communication module
- Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) ; Supports 2.4/5/6GHz frequency band; Bluetooth v5.3
Compare with similar products
 This itemASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard |  AsusAsus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Motherboard |  AsusAsus ProArt Z790-CREATOR WIFI ATX Motherboard |  AsusASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳71,500 | ৳71,500 | ৳73,000 | ৳73,000 |
| Availability | Out of stock | In stock | Out of stock | Out of stock |
| Brand | Asus | Asus | Asus | Asus |
| RAM type | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800; Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | Supports up to 8000+MT/s(OC) with Ryzen™; 9000 & 8000 & 7000 Series Processors; Dual channel memory architecture; Supports AMD Extended Profiles for; Overclocking (EXPO™); Supports DIMM Fit / DIMM Fit Pro; ASUS Enhanced Memory Profile (AEMP) | 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC); / 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem II | 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; OptiMem II; ASUS Enhanced Memory Profile II (AEMP II) |
| Form factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ); | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Chipset | Intel Z790 Chipset | AMD X870E | Intel Z790 Chipset | Intel Z790 Chipset |
| M.2 slots | — | 4 | 4 | 5 |
