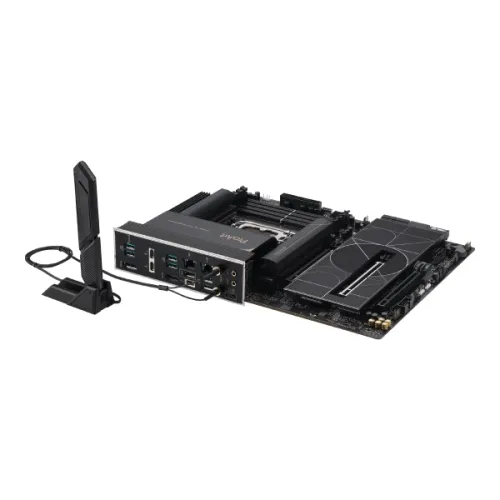

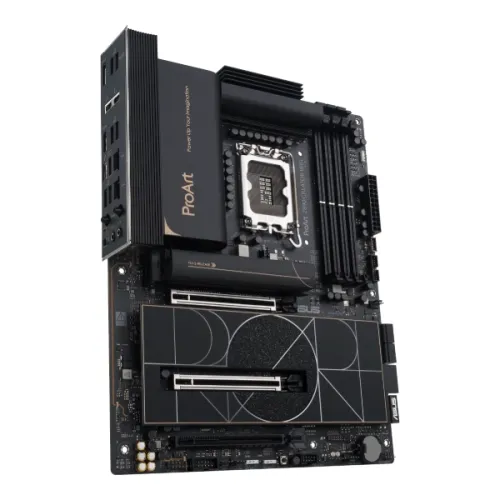

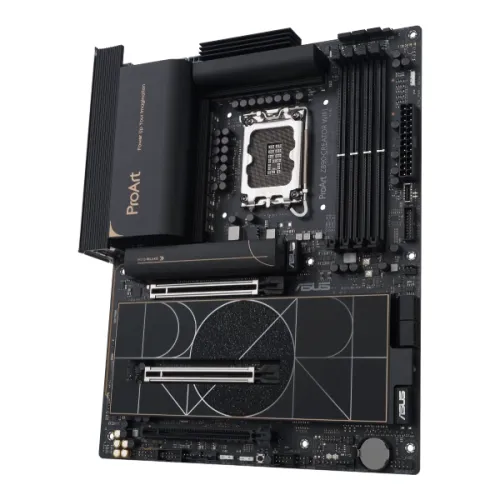

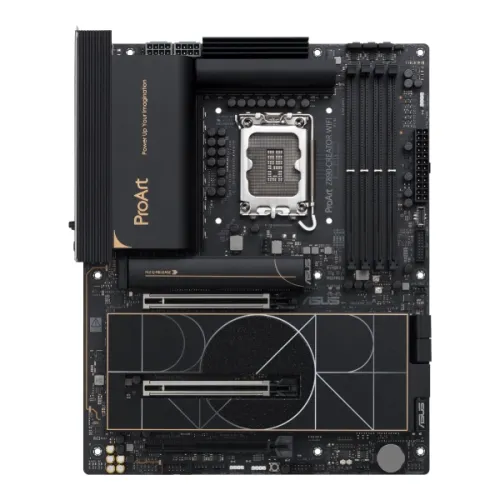

ASUS ProArt Z890-CREATOR WIFI LGA1851 ATX Motherboard
Model: ProArt Z890-CREATOR WIFIItem #: asus-proart-z890-creator-wifi-motherboard
৳82,000৳83,000Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z890 Chipset
- 5 M.2 slots
- Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III); Support DIMM Fit; Support DIMM Flex RAM type
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Overview
The ASUS ProArt Z890-CREATOR WIFI ATX Motherboard supports Intel Core Ultra Processors (Series 2) with LGA1851 sockets and uses the Intel Z890 chipset to provide superior computing capabilities. It has four DIMM slots that handle up to 256GB of DDR5 memory at rates of up to 9066+ MT/s (OC), allowing smooth multitasking and data processing. This ASUS ProArt Z890-Creator WiFi Motherboard's dual-channel memory design, together with support for Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III), improves memory performance and reliability. The ASUS ProArt Z890-Creator WiFi Motherboard has one HDMI port and three Thunderbolt ports (two Thunderbolt 5 and one Thunderbolt 4), which support multiple high-resolution screens up to 8K. The expansion slots include two PCIe 5.0 x16 and one PCIe 4.0 x16 slot. Wi-Fi 7 compatibility and two Ethernet connections (Marvell AQtion 10Gb and Intel 2.5Gb) provide dependable wireless connectivity and incredibly high network speeds. With its high-quality sound output and Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, the ASUS ProArt Z890-CREATOR WIFI Motherboard enhances the audio experience. Rapid data transfer and flexible connectivity are ensured by the ASUS LGA1851 motherboard, which has many USB interfaces, including USB 20Gbps and USB 40Gbps Type-C ports. Due to its thorough cooling solutions, Q-Design, and ASUS 5X Protection III, the ASUS ProArt Z890-CREATOR WIFI is a dependable, high-performance motherboard that is a top choice for professionals and content creators.
Specifications
- Chipset
- Intel Z890 Chipset
- M.2 slots
- 5
- RAM type
- Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III); Support DIMM Fit; Support DIMM Flex
- Form factor
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Memory — Type
- DDR5
- Memory — Slots
- 4 x DIMM slots
- Highlights — Model
- ProArt Z890-CREATOR WIFI
- Graphics — Graphics
- 1 x HDMI™ port**; 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***; 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports 4K@60Hz as specified in HDMI 2.1; *** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.; *** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.; *** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt cables.; In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.; While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core Ultra Processors (Series 2); 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes); Intel Z890 Chipset; *1 x PCIe 4.0 x16 slot (supports x4 mode)
- Highlights — Features
- 5x M.2, 1x 10Gb LAN, 1x 2.5Gb LAN, Wi-Fi 7, Bluetooth v5.4
- Memory — Maximum Memory
- 256GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI
- Connector & Ports — RAID
- Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
- Basic Information — Audio
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*Audio Features; - Gold-plated audio jacks; - Premium audio capacitors; - Dedicated audio PCB layers; * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
- Connector & Ports — Audio
- 2 x Gold-plated audio jacks
- Others — Bundled Software
- ASUS Exclusive Software; Armoury Crate; - Aura Creator; - Aura Sync; - Fan Xpert 4; - Power Saving; ASUS Driver Hub; ASUS GlideX; ASUS CPU-Z; CreatonFirst; ProArt Creator Hub; TurboV Core; Thunderbolt™ Share; USB Wattage Watcher; Adobe Creative Cloud (Free Trial); Norton 360 Deluxe (60 Days Free Trial); WinRAR (40 Days Free Trial); UEFI BIOS; AI Overclocking Guide; ASUS EZ DIY; - ASUS CrashFree BIOS 3; - ASUS EZ Flash; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey; NPU Boost
- Others — Special Features
- ASUS 5X PROTECTION III /; - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - LANGuard; - Overvoltage protection; - SafeSlot; - Stainless-steel back I/O; ASUS Q-Design; - M.2 Q-Latch; - M.2 Q-Release; - M.2 Q-Slide; - Q-Release Slim (with PCIe SafeSlot); - Q-Antenna; - Q-Connector; - Q-Dashboard; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - Box headers; - Clear CMOS button; - CPU Socket lever protector; - ProCool II; - Pre-mounted I/O shield; - SafeDIMM; Aura Sync; - Addressable Gen2 headers; Bespoke Motherboard Design & Business Focused Features; - 24/7 reliability- Overcurrent protection
- Highlights — Supported RAM
- 4x DDR5, Max 256GB, up to 9066+MT/s (OC)

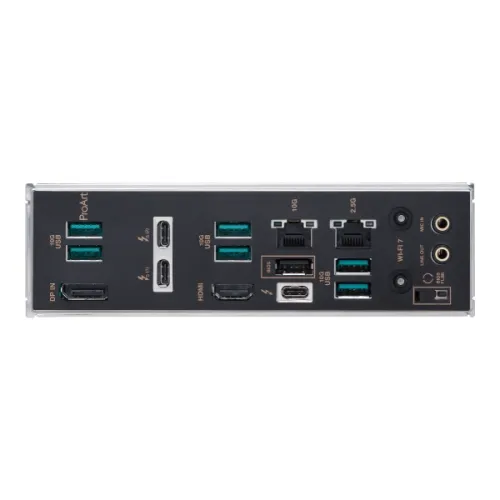

- Connector & Ports — USB (s)
- Rear USB (Total 10 ports); 2 x Thunderbolt™ 5 ports (2 x USB Type-C®); 1 x Thunderbolt™ 4 port (1 x USB Type-C®); 6 x USB 10Gbps ports (6 x Type-A ); 1 x USB 2.0 port (1 x Type-A ); Front USB (Total 5 ports); 1 x USB 20Gbps (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; USB Type-C® power delivery output: max. 5V/3A
- Highlights — Graphics Output
- 1x HDMI, 3x Intel Thunderbolt ports (USB Type-C)
- Connector & Ports — LAN Port (s)
- 1 x Marvell AQtion 10Gb Ethernet; 1 x Intel 2.5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Support Intel Core Ultra Processors (Series 2), LGA1851; Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs; 1 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs
- Connector & Ports — Supported Storage
- Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® Core™ Ultra Processors (Series 2) *; M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® Z890 Chipset; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes); M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**; 4 x SATA 6Gb/s ports; * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.; ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.
- Connector & Ports — Internal I/O Ports
- Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector; Storage Related; 5 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 1 x USB 2.0 header supports 2 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen2 headers; 1 x Clear CMOS button; 1 x COM Port header; 1 x CPU Over voltage jumper; 1 x Chassis Intrusion header; 1 x Front Panel Audio header (F_AUDIO); 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin Front System Panel header; 1 x Thermal Sensor header
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 7; 2x2 Wi-Fi 7 (802.11be); Supports 2.4/5/6GHz frequency band; Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.; Bluetooth® v5.4***; *Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.; For Windows 10, only Wi-Fi 6 is supported.; ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Compare with similar products
 This itemASUS ProArt Z890-CREATOR WIFI LGA1851 ATX Motherboard |  AsusASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard |  AsusAsus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX Motherboard |  GIGABYTEGigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard | |
|---|---|---|---|---|
| Price | ৳82,000 | ৳79,000 | ৳81,800 | ৳83,000 |
| Availability | In stock | In stock | Out of stock | Out of stock |
| Brand | Asus | Asus | Asus | GIGABYTE |
| M.2 slots | 5 | 4 | 4 | 1 |
| RAM type | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III); Support DIMM Fit; Support DIMM Flex | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual Channel Memory Architecture ; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; NitroPath DRAM Technology ; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III) | Supports up to 8000+MT/s(OC) with Ryzen™; 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered; Memory*"; Dual channel memory architecture; Supports AMD Extended Profiles for; Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) | Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module |
| Form factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | E-ATX Form Factor; 30.5cm x 28.5cm |
| Chipset | Intel Z890 Chipset | Intel Z890 Chipset | AMD X870 | Intel Z890 Chipset |
