ASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard
Model: ROG MAXIMUS Z890 APEXItem #: asus-rog-maximus-z890-apex-motherboard
৳79,000৳79,500Save 1%
In stockverified
Ordering is paused
We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.
Delivery
- Inside Dhaka
- ৳60 · 1–2 days
- Outside Dhaka
- ৳120 · 2–4 days
Sold by Micro
Key highlights
- Intel Z890 Chipset
- 4 M.2 slots
- Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual Channel Memory Architecture ; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; NitroPath DRAM Technology ; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III) RAM type
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Overview
The ASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard is a flagship ASUS ROG Motherboard designed for extreme overclocking, next-generation gaming, and professional workloads, offering cutting-edge performance with the Intel Z890 chipset and support for Intel Core Ultra Series 2 processors on the LGA1851 socket. This ASUS ROG CROSSHAIR Motherboard delivers record-breaking DDR5 speeds with advanced DIMM Flex, DIMM Fit, and AEMP III technologies, plus bundled cooling solutions for stable memory performance. Expansion is future-ready with dual PCIe 5.0 x16 slots for next-gen GPUs and six M.2 slots including PCIe 5.0 and PCIe 4.0 via ROG DIMM.2 card for ultra-fast storage. Connectivity is unmatched with WiFi 7, Thunderbolt 4, USB 20Gbps Type-C, and 5G LAN, ensuring seamless networking and data transfer. Its robust 22+1+2+2 power stage design guarantees reliable power delivery, while AI Overclocking, AI Cooling II, and AI Networking II provide intelligent system optimization. With DIY-friendly features like Q-Release PCIe slots, BIOS FlashBack, and a pre-mounted I/O shield, the ASUS Z890 APEX Motherboard simplifies building and upgrading. Finished with premium ROG aesthetics and SupremeFX audio, the ASUS ROG MAXIMUS Z890 APEX stands out as the ultimate ASUS 890 Motherboard, combining durability, scalability, and extreme performance for gamers, creators, and overclocking enthusiasts.
Specifications
- Chipset
- Intel Z890 Chipset
- M.2 slots
- 4
- RAM type
- Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual Channel Memory Architecture ; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; NitroPath DRAM Technology ; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III)
- Form factor
- ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Memory — Type
- DDR5
- Memory — Slots
- 4x DIMM slots
- Highlights — Model
- ROG MAXIMUS Z890 APEX
- Graphics — Graphics
- 1 x DisplayPort; 1 x HDMI port; * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.; ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.; *** Supports 4K@60Hz as specified in HDMI 2.1.; **** VGA resolution support depends on processors' or graphic cards' resolution.
Show all 28 specificationsShow fewer
- Expansion Slots — PCI
- Intel Core Ultra Processors(Series 2); 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) ; Intel Z890 Chipset; 2 x PCIe 4.0 x16 slots (supports x4 mode)
- Highlights — Features
- 6x M.2 Slot, 1x Realtek 5Gb LAN, Wi-Fi 7, Bluetooth 5.4
- Memory — Maximum Memory
- 256GB
- Basic Information — BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Connector & Ports — HDMI
- 1 x HDMI 2.1
- Connector & Ports — RAID
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
- Basic Information — Audio
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*; - Impedance sense for front and rear headphone outputs; - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in); - Supports up to 32-Bit/192 kHz playback*; Audio Features; - SupremeFX Shielding Technology; - Savitech SV3H712 AMP; - Gold-plated audio jacks; - Rear optical S/PDIF out port ; - Premium audio capacitors; - Audio cover; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ; ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
- Connector & Ports — Audio
- 2 x Gold-plated audio jacks
- Others — Bundled Software
- ROG Exclusive Software; - ROG CPU-Z; - Dolby Atmos; ASUS Exclusive Software; Armoury Crate; - AIDA64 Extreme (60 days free trial) ; - Aura Creator; - Aura Sync; - Fan Xpert 4 (with AI Cooling II); - GameFirst; - HWiNFO; - Power Saving; - ASUS AI Advisor; - ASUS Driver Hub; - ASUS GlideX; - USB Wattage Watcher; - TurboV Core; - Adobe Creative Cloud (Free Trial); - Norton 360 for Gamers (60 Days Free Trial); - WinRAR (40 Days Free Trial); UEFI BIOS; AI Overclocking Guide; NPU Boost; ASUS EZ DIY ; - ASUS CrashFree BIOS 3 ; - ASUS EZ Flash; - ASUS UEFI BIOS EZ Mode; - ASUS MyHotkey; FlexKey
- Others — Special Features
- Extreme Engine Digi+; - 5K Black metallic capacitors; ASUS Q-Design; - M.2 Q-Latch; - M.2 Q-Release; - M.2 Q-Slide; - PCIe Slot Q-Release Slim (with PCIe SafeSlot); - Q-Antenna; - Q-Dashboard; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution; - M.2 heatsink backplate; - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY; - BIOS FlashBack™ button; - BIOS FlashBack™ LED; - Clear CMOS button; - CPU Socket lever protector; - ProCool II; - Pre-mounted I/O shield; - SafeSlot; - SafeDIMM; Aura Sync; - Addressable Gen 2 headers; Rear USB 20Gbps with PD Fast Charge Support; - Support: up to 30W fast charging and USB Wattage Watcher; - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A; - Compatible with PD3.0
- Highlights — Supported RAM
- 2 x DIMM, Max 128GB, Support up to 9600+MT/s (OC)
- Connector & Ports — USB (s)

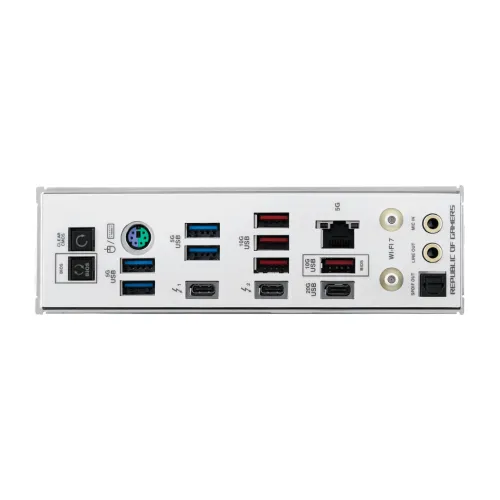

- Rear USB (Total 10 ports); 2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge); 4 x USB 10Gbps ports (4 x Type-A); 4 x USB 5Gbps ports (4 x Type-A); Front USB (Total 7 ports); 1 x USB 20Gbps (1 x USB Type-C); 1 x USB 5Gbps header support 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; * USB Type-C power delivery output: max. 5V/3A; ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- Highlights — Graphics Output
- 2x Thunderbolt 4 (Type-C)
- Connector & Ports — LAN Port (s)
- 1 x Realtek 5Gb Ethernet; ASUS LANGuard
- Basic Information — Supported CPU
- Supports Intel Core Ultra Processors (Series 2), LGA1851; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Connector & Ports — Display Port (s)
- 1 x DisplayPort 1.4
- Connector & Ports — Supported Storage
- Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; Intel Core Ultra Processors(Series 2); M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode); M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode); Intel Z890 Chipset; M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode); M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; * Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
- Connector & Ports — Internal I/O Ports
- Connectors; Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 5 x 4-pin Chassis Fan header; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V CPU Power connector; Storage Related; 4 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 20Gbps connector (supports USB Type-C); 1 x USB 5Gbps header support 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Chassis Intrusion header; 1 x CPU Over voltage jumper; 1 x Front Panel Audio header (F_AUDIO); 1 x Start button; 1 x 10-1 pin Front System Panel header; 1 x Thermal Sensor header; 1 x Thunderbolt™ (USB4®) header
- Warranty Information — Manufacturing Warranty
- 3 Years
- Connector & Ports — Wireless Communication module
- Wi-Fi 7; 2x2 Wi-Fi 7 (802.11be) ; Supports 2.4/5/6GHz frequency band; Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.; Bluetooth® v5.4; ; Wi-Fi features may vary depending on the operating system; For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.; For Windows 10, only Wi-Fi 6 is supported.; Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.; The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Compare with similar products
 This itemASUS ROG MAXIMUS Z890 APEX LGA1851 ATX Motherboard |  AsusASUS ProArt X870E-CREATOR WiFi AM5 DDR5 ATX Motherboard |  MSIMSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard |  GIGABYTEGigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard | |
|---|---|---|---|---|
| Price | ৳79,000 | ৳77,500 | ৳77,900 | ৳79,000 |
| Availability | In stock | In stock | In stock | Out of stock |
| Brand | Asus | Asus | MSI | GIGABYTE |
| M.2 slots | 4 | 3 | 5 | 1 |
| RAM type | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*; Dual Channel Memory Architecture ; Supports Intel® Extreme Memory Profile (XMP) memory module; Supports DIMM Flex; NitroPath DRAM Technology ; DIMM Fit; ASUS Enhanced Memory Profile III (AEMP III) | 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking frequency:; • 1DPC 1R Max speed up to 9200+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 4800+ MT/s; • 2DPC 2R Max speed up to 4800+ MT/s | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.; ; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module |
| Form factor | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ); | ATX (243.84mmx304.8mm) | ATX Form Factor; 30.5cm x 24.4cm |
| Chipset | Intel Z890 Chipset | AMD B650 | INTEL Z890 | Intel Z890 Chipset |
