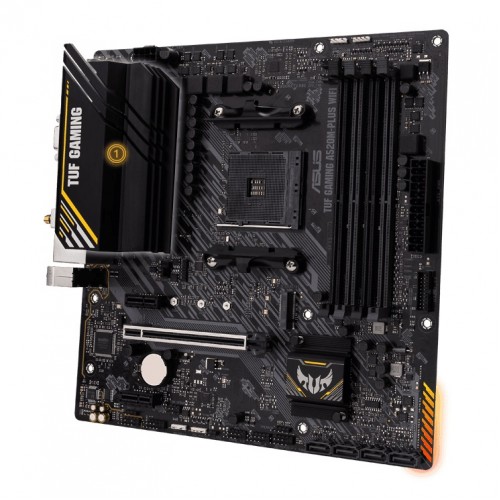

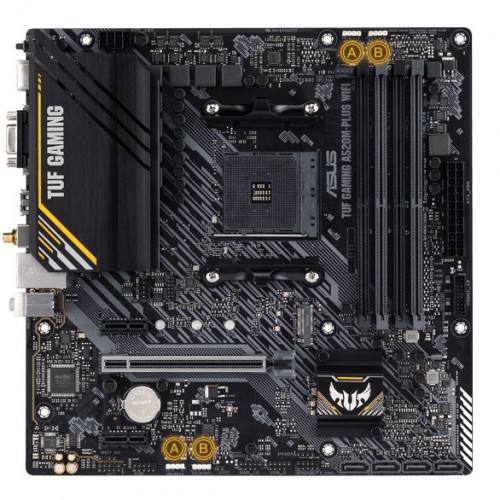

Asus TUF GAMING A520M-PLUS WIFI AM4 AMD Micro ATX Motherboard

Name: Asus TUF GAMING A520M-PLUS WIFI AM4 AMD Micro ATX Motherboard
Brand: Asus
Price: 13700 BDT
Availability: OutOfStock

Model: TUF GAMING A520M-PLUS WIFIItem #: asus-tuf-gaming-a520m-plus-wi-fi-motherboard

৳13,700

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

AMD A520 Chipset
1 M.2 slots
4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory ; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU RAM type
mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm );

Overview

The Asus TUF GAMING A520M-PLUS WI-FI AM4 AMD Micro ATX Motherboard distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming A520M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.

Specifications

Chipset: AMD A520
M.2 slots: 1
RAM type: 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory ; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU
Form factor: mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm );
Memory — Type: DDR4
Memory — Slots: 4 x DIMM
Highlights — Model: TUF GAMING A520M-PLUS WIFI
Graphics — Graphics: 1 x D-Sub; 1 x DVI-D; 1 x HDMI 2.1(4K@60HZ)

Show all 22 specifications

Expansion Slots — PCI: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors; 1 x PCIe 3.0 x16 (x16 mode); AMD A520 Chipset; 2 x PCIe 3.0 x1
Memory — Maximum Memory: 128GB
Basic Information — BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Connector & Ports — HDMI: 1 x HDMI 2.1(4K@60HZ)
Connector & Ports — Audio: Realtek ALC887/ 897 7.1 Surround Sound High Definition Audio CODEC ; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; Audio Feature :; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors
Connector & Ports — USB (s): 1 x USB 3.2 Gen 2 port(s)(1 x Type-A); 4 x USB 3.2 Gen 1 port(s)(4 x Type-A); 2 x USB 2.0 port(s)(2 x Type-A); Front USB Port ( Total 5 ); 2 x USB 3.2 Gen 1 port(s)(2 x Type-A); 3 x USB 2.0 port(s)(3 x Type-A)
Connector & Ports — D-Sub (s): 1 x D-Sub
Connector & Ports — DVI-D (s): 1 x DVI-D
Connector & Ports — LAN Port (s): 1 x LAN (RJ45) port; Realtek L8200A 1Gb Ethernet; TUF LANGuard
Basic Information — Supported CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop
Connector & Ports — Supported Storage: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors :; 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support; AMD A520 Chipset :; 4 x SATA 6Gb/s port(s),; Support Raid 0, 1, 10
Connector & Ports — Internal I/O Ports: 1 x CPU Fan connector(s); 2 x Chassis Fan connector(s); 1 x Aura RGB Strip Header; 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s); 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode); 1 x M.2 with E key for Wi-Fi module; 4 x SATA 6Gb/s connector(s); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin EATX 12V Power connectors; 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x COM port header
Warranty Information — Manufacturing Warranty: 3 Years
Connector & Ports — TPM (Trusted Platform Module ): 1 x SPI TPM header;

Compare with similar products

	This itemAsus TUF GAMING A520M-PLUS WIFI AM4 AMD Micro ATX Motherboard	GIGABYTEGIGABYTE B550M DS3H R2 mATX AMD Motherboard	MSIMSI PRO H810M-E DDR5 LGA1851 mATX Motherboard	GIGABYTEGIGABYTE B760M K V2 DDR4 mATX Motherboard
Price	৳13,700	৳13,600	৳13,700	৳13,700
Availability	Out of stock	Out of stock	In stock	Out of stock
Brand	Asus	GIGABYTE	MSI	GIGABYTE
M.2 slots	1	1	1	1
RAM type	4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory ; Dual Channel Memory Architecture; ECC Memory (ECC mode) support varies by CPU	Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules	—	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules;
Form factor	mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm );	Micro ATX Form Factor; 24.4cm x 24.4cm	Micro-ATX	Micro ATX Form Factor; 22.3cm x 19.3cm
Chipset	AMD A520	AMD B550	Intel H810	Intel B760 Express Chipset
