GIGABYTE B760M K V2 DDR4 mATX Motherboard

Name: GIGABYTE B760M K V2 DDR4 mATX Motherboard
Brand: GIGABYTE
Price: 13700 BDT
Availability: OutOfStock

Model: B760M K V2 DDR4Item #: gigabyte-b760m-k-v2-ddr4-motherboard

৳13,700

Out of stockverified 22 Sept 2026

Ordering is paused

We're finishing our supply arrangements. Prices and stock here are live — ordering reopens shortly.

Delivery

Inside Dhaka: ৳60 · 1–2 days
Outside Dhaka: ৳120 · 2–4 days

Sold by Micro

Key highlights

Intel B760 Express Chipset
1 M.2 slots
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; RAM type
Micro ATX Form Factor; 22.3cm x 19.3cm

Overview

The GIGABYTE B760M K V2 DDR4 Motherboard is a powerful and reliable choice for building modern Intel-based systems. Designed with the LGA1700 socket, this Gigabyte Intel Motherboard supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, delivering stable performance for gaming, productivity, and everyday computing. Powered by the Intel B760 Express Chipset, the GIGABYTE B760M K V2 DDR4 Motherboard ensures efficient system management with AMI UEFI BIOS support. With dual DDR4 DIMM slots, it supports up to 64GB of high-speed memory, including XMP profiles for enhanced performance. Expansion options include a PCIe 4.0 x16 slot for graphics cards, a PCIe 3.0 x1 slot for add-on cards, one M.2 connector, and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support. Integrated Intel HD Graphics compatibility offers HDMI 2.0 and D-Sub outputs, supporting resolutions up to 4K@60Hz. Connectivity is robust with Realtek GbE LAN, USB 3.2 Gen 1, USB 2.0, and Realtek HD Audio CODEC supporting up to 7.1-channel sound. Compact in micro-ATX form factor, the Gigabyte B760M K V2 Motherboard also includes features like Q-Flash, GIGABYTE Control Center, tamper switch alarm, and RGB LED strip header for customization. For users seeking a balance of performance, expandability, and durability, the GIGABYTE B760M K V2 DDR4 Motherboard is the ideal Gigabyte Motherboard for next-generation builds.

Specifications

Chipset: Intel B760 Express Chipset
M.2 slots: 1
RAM type: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules;
Form factor: Micro ATX Form Factor; 22.3cm x 19.3cm
Memory — Type: DDR4
Memory — Slots: 2
Highlights — Model: B760M K V2 DDR4
Graphics — Graphics: Integrated Graphics Processor-Intel HD Graphics support:; - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.

Show all 28 specifications

Expansion Slots — PCI: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset:; - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Highlights — Features: Realtek GbE LAN chip
Memory — Maximum Memory: up to 64GB (32 GB single DIMM capacity) of system memory
Basic Information — BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports — HDMI: 1x HDMI
Connector & Ports — RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information — Audio: Realtek Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out
Connector & Ports — Audio: 3 x audio jacks
Others — Bundled Software: Norton Internet Security (OEM version); LAN bandwidth management software
Others — Special Features: Support for GIGABYTE Control Center (GCC); Support for Q-Flash
Highlights — Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
Connector & Ports — USB (s): Chipset:; - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); - 4 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub:; - 4 x USB 2.0/1.1 ports available through the internal USB headers
Highlights — Graphics Output: 1x HDMI, 1 x D-Sub
Connector & Ports — D-Sub (s): 1x D-Sub
Connector & Ports — LAN Port (s): Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Basic Information — Supported CPU: LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors; L3 cache varies with the CPU
Connector & Ports — Supported Storage: Chipset:; - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support); - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

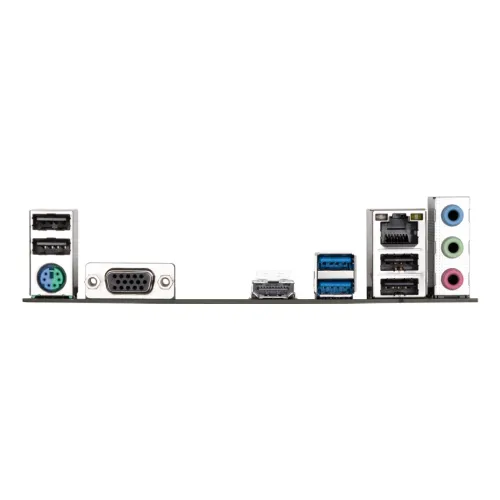

Connector & Ports — Internal I/O Ports: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x speaker header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x serial port header; 1 x Clear CMOS jumper; 1 x chassis intrusion header; ; Back Panel Connectors; 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Warranty Information — Manufacturing Warranty: 3 years
Connector & Ports — TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
